NEW DOTUL DT-705
Overview

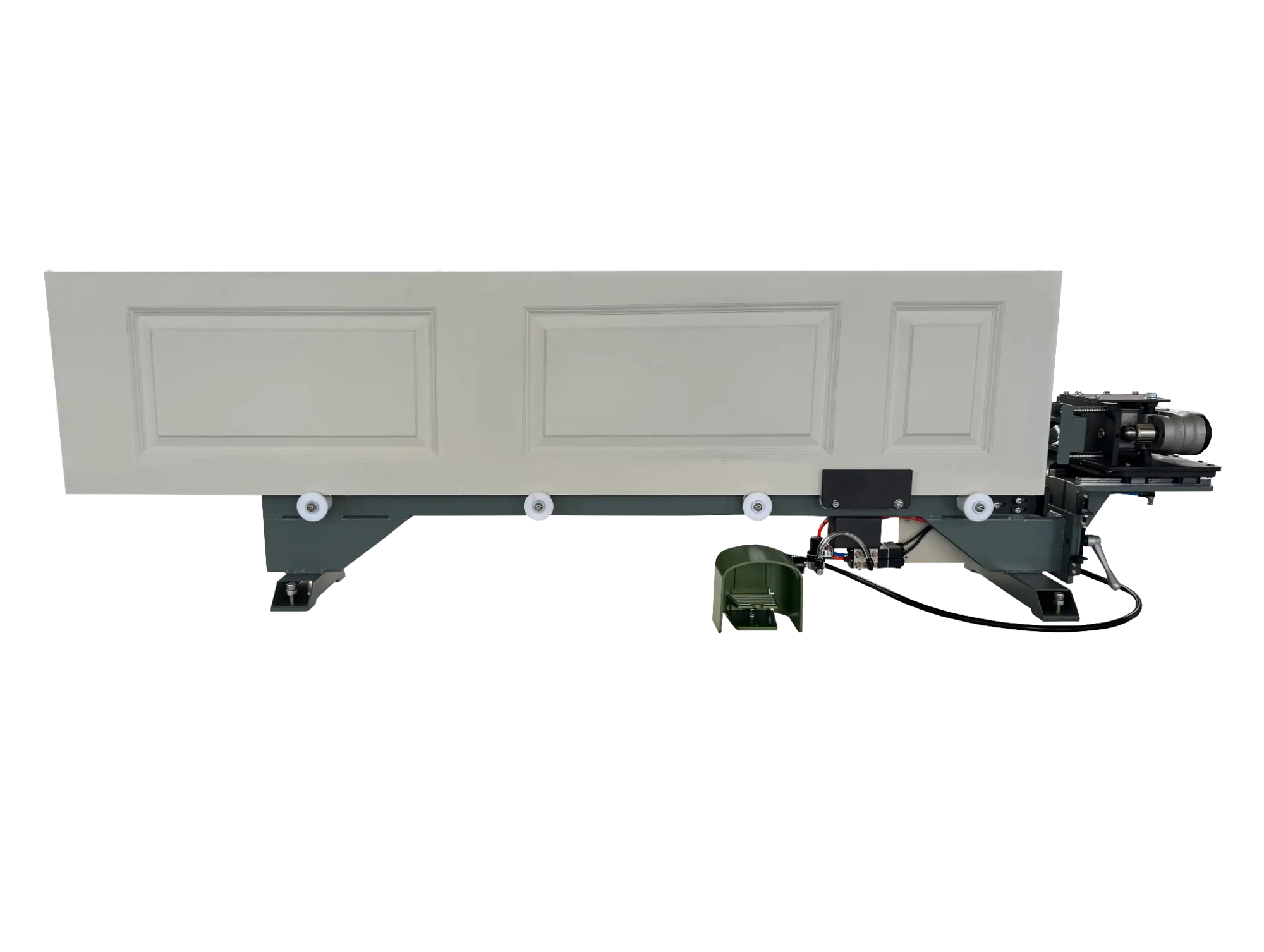

The DT-705 is a quick, easy and reliable way to drill for ball catches in passage doors, instead of using handheld fixtures which can be slower not as accurate and take some skill.
Features/Benefit:
1. Quick change adjustment for drilling 2 ½”~5” from the edge of the door with a mechanical stop. Allows for quick changes and customization of spacing from the edge of the door.
2. Ball catch drill bit self-centers on the edge of the door making for quick and reliable accuracy of the ball catch.
3. A pneumatic clamp activated by a foot pedal holds the door securely in place while drilling for the ball catch.
Specs
Door Width
1’0” ~ 4’0”
Door Height*
2’0” ~ 9’0”
Door Thickness
1 3/8” ~ 2 3/4”
Ball Catch Drill Diameter (1 drill bit is included)
¾”, 7/8”, 15/16”, 1”, 1 1/8”
Electrical
120/1/60 – 20 amps
Pneumatic (Clean & Dry)
1 cfm @ 90 psi
Floor Space
3’W x 8’L
Approx. Net/Shipping Weight
300 lbs./ 450 lbs.
Shipping Dimensions
3’W x 8’L x 2’T
Approx. Cycle (Under normal operation)
4 seconds
Vacuum Connection
2”
*Works for smaller passage doors like attic doors & under stairs.
Optional:
• Extra drill bits
• Dust Collection
