USED 2006 Kitamura HX-500I

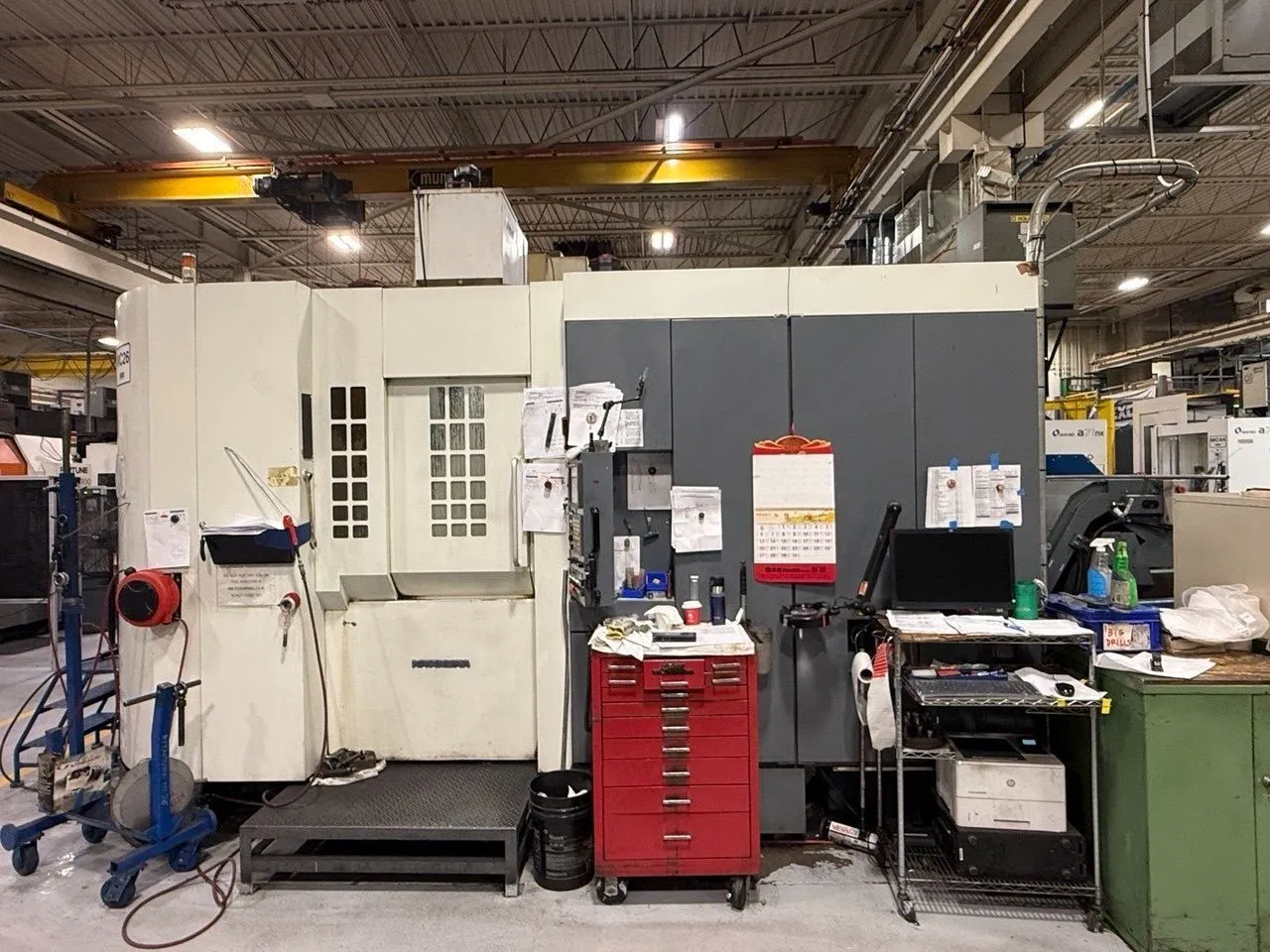

2006 Kitamura Mycenter HX500i CNC Horizontal Machining Center

Manufacturer: Kitamura Machinery
Model: Mycenter HX500i
Type: 4-Axis CNC Horizontal Machining Center
Control: FANUC Series 16i-MB

Power: 200/220 V / 50/60 Hz / 3 Ph
Hours: 17,989 Run Hours

Specifications
X-Axis Travel: 34.3 in (870 mm)
Y-Axis Travel: 28 in (710 mm)
Z-Axis Travel: 26 in (660 mm)
B-Axis: Full 4th-Axis Rotary Table
B-Axis Indexing: 0.001°
Pallet Size: 19.7 x 19.7 in (500 x 500 mm)
Number of Pallets: 2
Maximum Pallet Load: 1,760 lb
Maximum Spindle Speed: 12,000 RPM
Spindle Taper: #50
Spindle Motor: 35 HP
Rapid Traverse: 1,969 IPM
Tool Capacity: 50 Tools
Maximum Tool Diameter: 4.92 in (125 mm)
Maximum Tool Weight: 44 lb (20 kg)
Dual Pallet Changer
Chip Conveyor
Coolant System

Weight: ~33,000 lb
Dimensions: 150 L x 131 W x 180 H in
