New | Build-to-Order

NEW HYUNDAI WIA CNC MACHINE TOOLS KF5600M

Texas, United States
386Listings|11Followers
Overview
Vertical Machining Centers

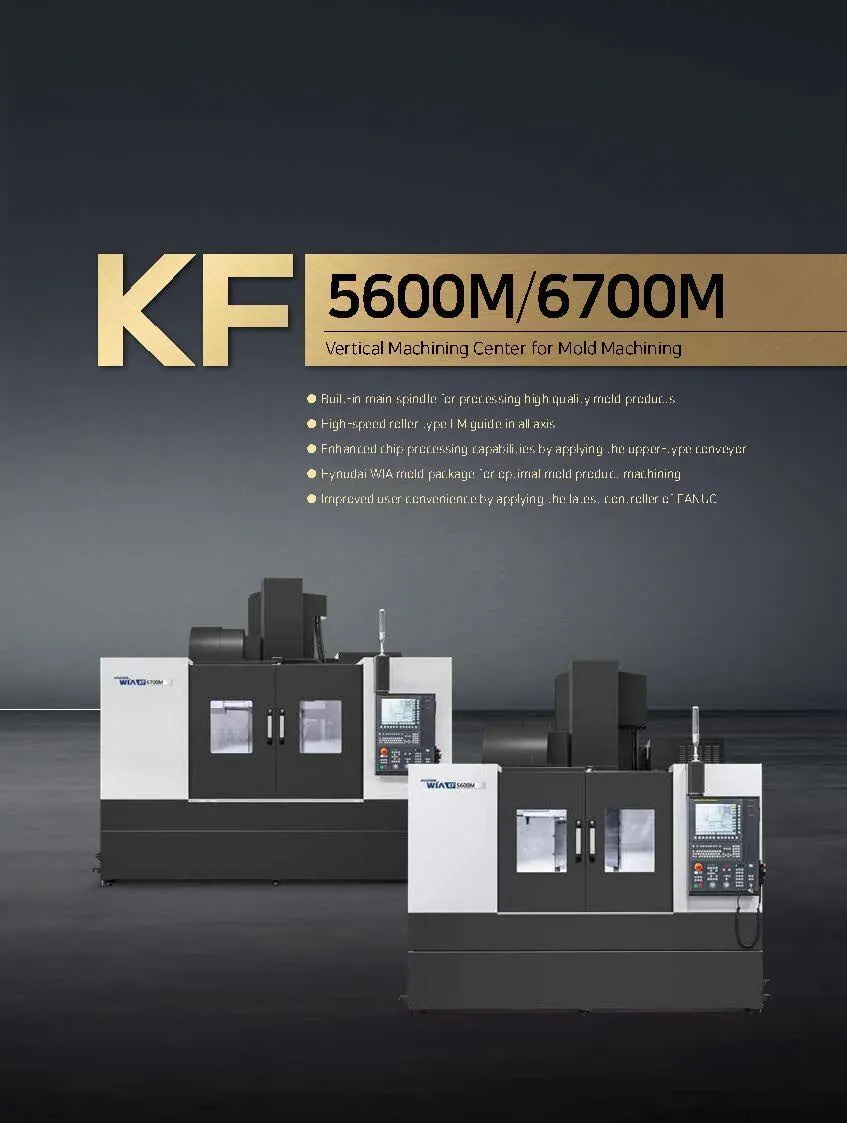

Hyundai WIA KF5600M is a high-rigidity 3-axis Vertical Machining Center optimized for the mold-making and die industry. It features heavy-duty bed construction, high-speed roller LM guides, and a built-in high-RPM spindle designed for precision contouring and fine surface finishes. Featuring aCAT40 Big Plus or HSK63 20,000 RPM spindle.

Specs
Control
CNC (Fanuc)
CNC (Fanuc)
SPINDLE TAPER
CAT40 (BIG PLUS)
CAT40 (BIG PLUS)
X Travel
43.3"
1,099.8 mm
Y Travel
22"
558.8 mm
Z Travel
20.5"
520.7 mm
TABLE (L)
49.2"
1,249.7 mm
TABLE (W)
22"
558.8 mm
SPINDLE SPEED
20,000 RPM
20,000 RPM
SPINDLE HP
30 hp
22.4 kW
MAGAZINE CAPACITY
30
30
