USED Laguna Tools MCNC

Description

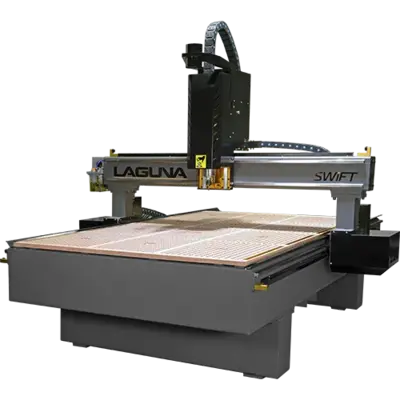

The vacuum table swift features a 6-zone vacuum table guaranteed to hold down your parts. This router features a work envelope of 60″ X 120″ and includes an industrial-grade liquid cooled electro spindle.

* Vacuum pump sold separately.

Features

3HP Water Cooled Electrospindle (ER-20 Collet)
6,000 – 24,000 RPM Spindle
Vacuum Table
Hand Held Controller
Gantry Height: 7-1/2″
Ball Screw On Z Axis
Double Helical Rack Drive On X & Y Axis
Specifications

Motor 3 hp very quiet spindle
Spindle: 1 or 3 Phase Industrial Induction Spindle, LiquidCooled
Spindle RPM: 6,000 - 24,000
Controller: Rich Auto DSP Controller
Dust chute diameter: 4”
Volts: 220V
Three Phase (for other voltages please contact a sales rep)
Gantry Clearance: 8”
Machine Work Table: T-Slot
Z Axis: Precision Ball Screw
X and Y Axes: Rack & Pinion
Machine Foot Print: 90”w x 144”l x 58”h
Work Envelope: 60” x 120”
Available Options

Plotting CNC ISO20 Attachment
5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
1/4” x 7/8” x 1/4" x 2-1/2” 2 Flutes Compression Bit
1/4" x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose
