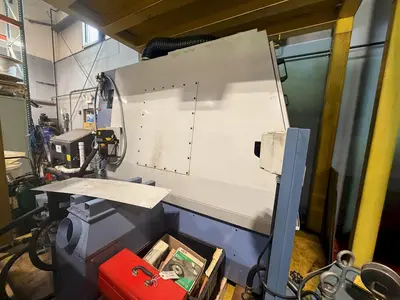

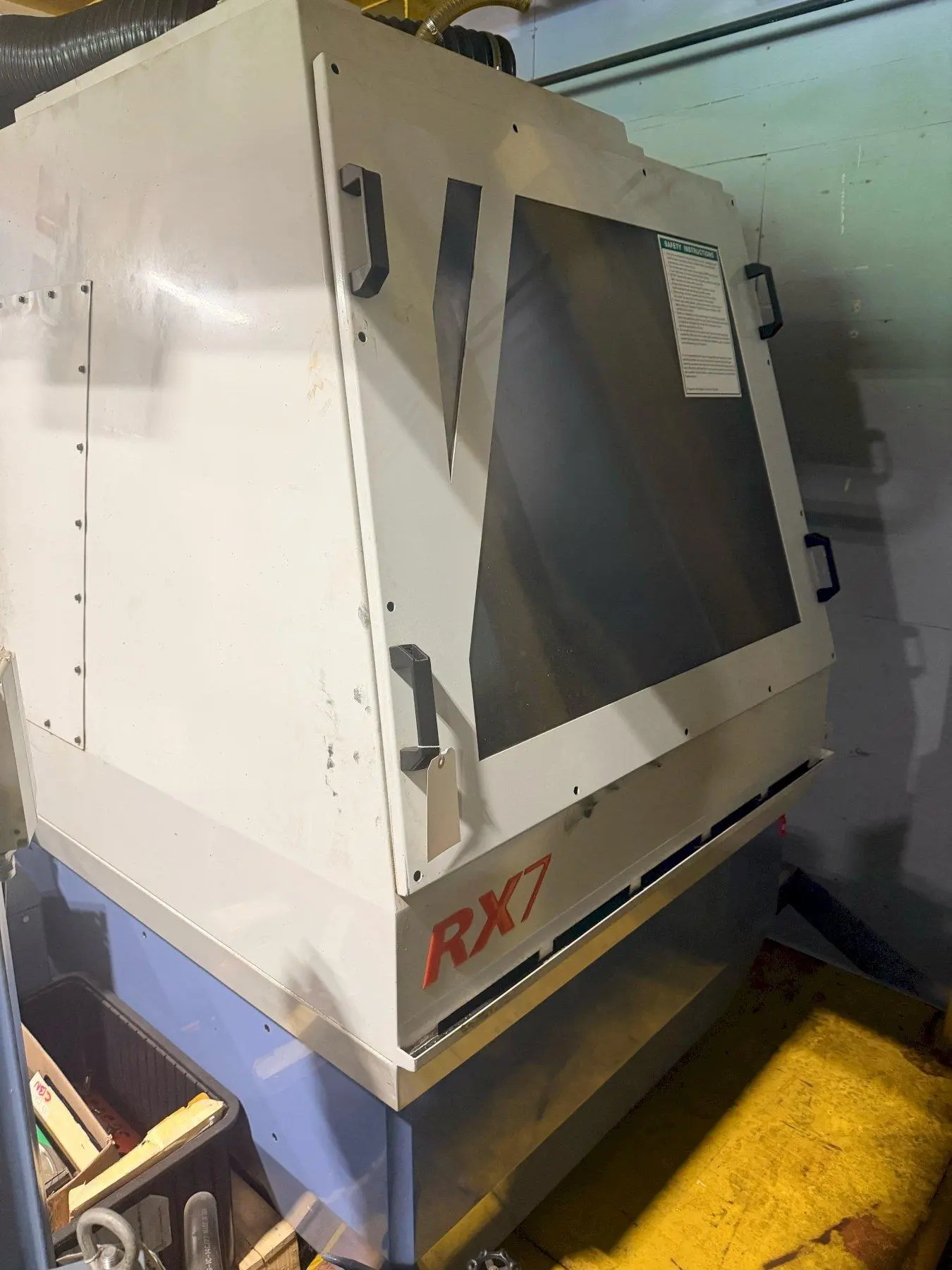

USED 2011 ANCA RX-7
Overview
Equipped with :

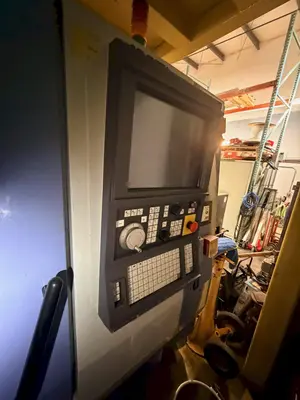

Control System : ANCA CNC (typically 5DX )
Machine base : ANCACRETE polymer concrete
Specs
Type of CNC Control: ANCA CNC (typically 5DX)
Control: yes
Capacity and Axis Travel - See Below: See Below
X-axis Travel:: 9.8" or 250mm
Y-Axis Travel:: 5.9" or 150mm
Z-Axis Travel:: 8.7" or 220mm
Maximum Tool Diameter:: 9.4" or 220mm
Maximum Workpiece Weight:: 44 lbs or 20kg
Grinding Spindle & Wheels - See Below: See Below
Spindle Power:: 26HP or 19kw
Spindle Speed:: 10000-12000 RMPs
Spindle Type:: ANCA Bi-directional integral direct drive
Max Grinding Wheel Diameter:: 8" or 202mm
Wheel Configuration:: Tow wheel packs with up to four wheels each
Machine Data & Dimensions: See Below
Dimensions: 99" x 79" x 75"
Overall Weight:: 9920 lbs Approximately
