Tank, 2,250 Gallon, Stainless Steel, Agitated, 3 HP, 6' X 8’3” #S745314
Overview
Description

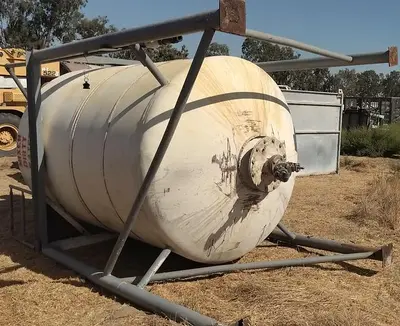

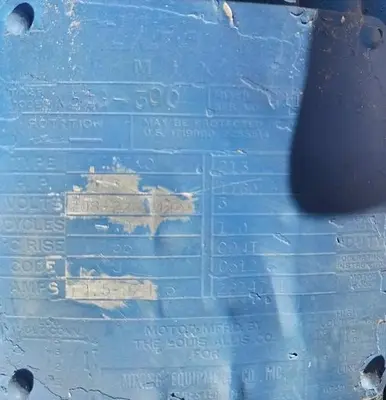

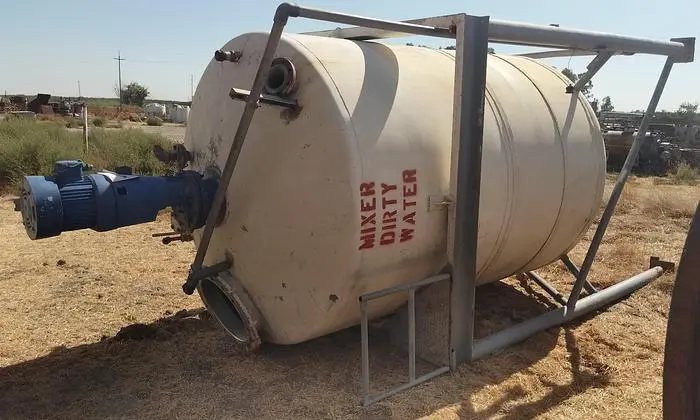

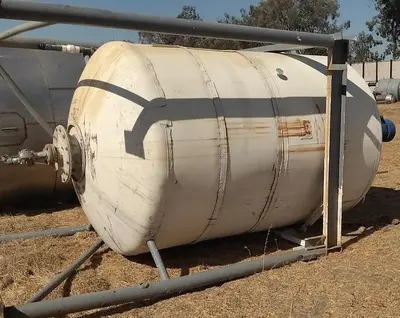

Stainless steel Agitated Tank with top entering agitation, approximately 2,250 gallon capacity. Measures approximately 6’ inside diameter x 8’3” straight side with a dish top and dish bottom 10’ high. Dish bottom includes 15” diameter flange connection to 2” diameter pipe discharge. Offered with top-entering, flange-mounted agitation with stainless steel shaft and two 3-blade stainless steel props, driven by 3 HP, 208-220/440V, 1760 RPM, 3/60Hz motor. Top head includes 18” diameter manway with six top inlets two 4”, two 2” & two 1 1/2”. Overall height is 16’. Lug Mounted within mild steel frame with four legs and footpads.
Specifications
Stock Number: S745314
Gallons: 2250
Materials of Construction: Stainless Steel
Previous Use: Waste Water
Tank Dimensions: 6' Diameter X 8’3” High
Type: Vertical Mix Tank
Basis: FOB
