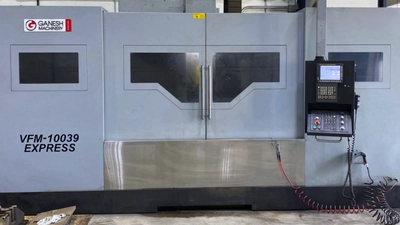

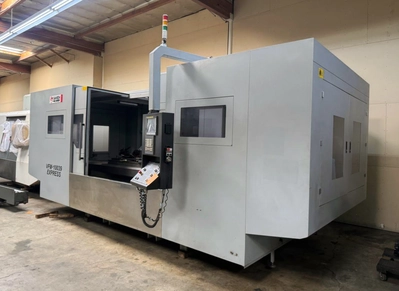

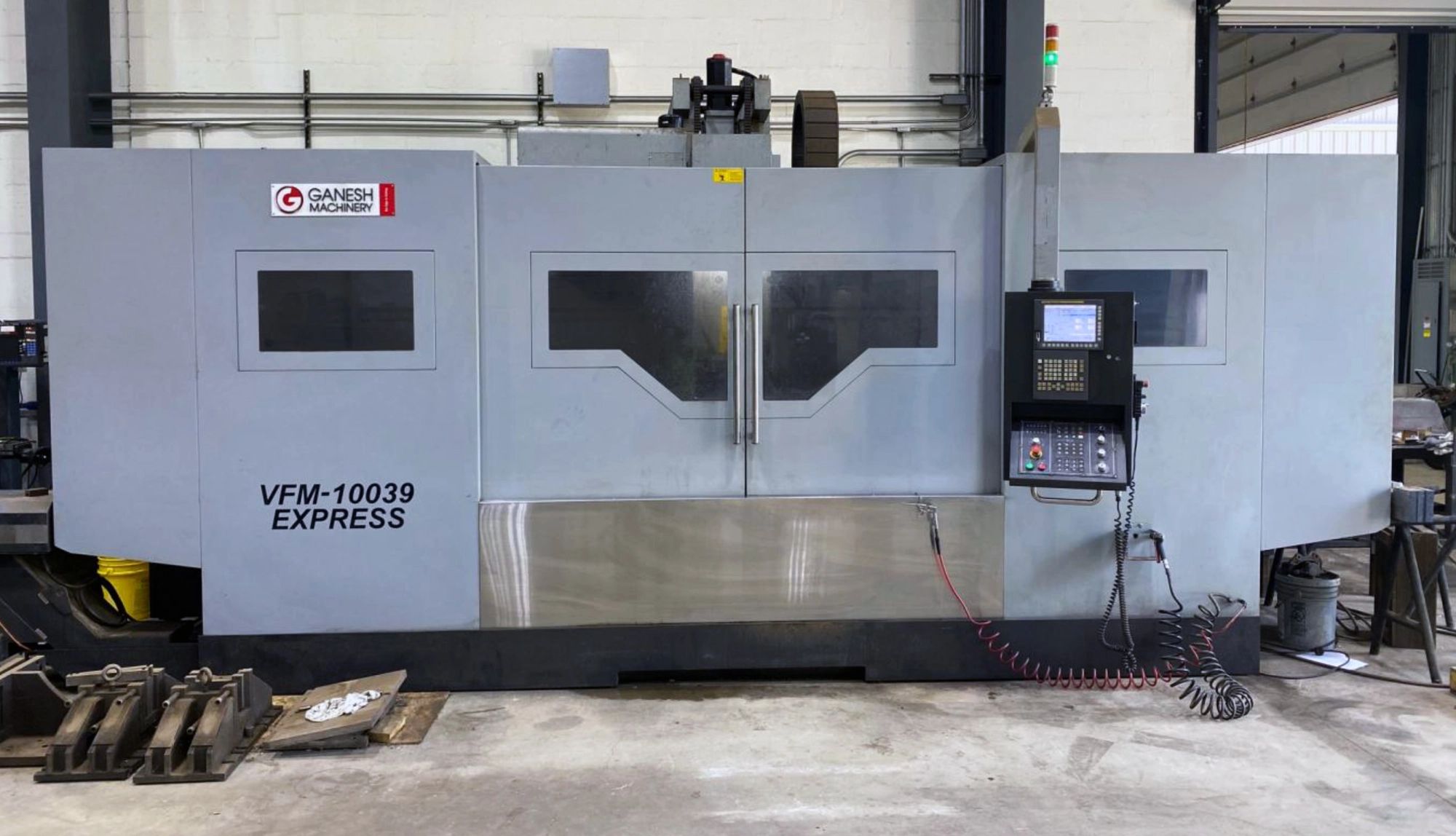

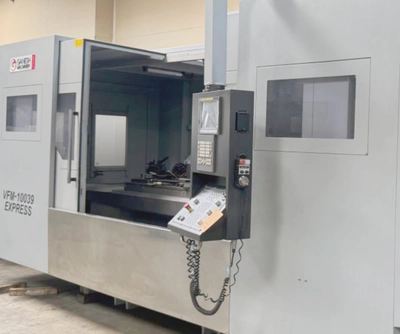

USED 2017 GANESH VFM-10039

X-Travel: 98.43″
Y-Travel: 39.37″
Z-Travel: 35.43″
Table Size: 98.42″ x 39.37″
Table Capacity: 7,700 lbs
Rapid Traverse: 472/393 IPM IPM
Spindle Taper: 50
Spindle Speed: 6,000 RPM
Auto Tool Changer Capacity: 40 Tools
Approx Machine Weight: 65,000 lbs
EQUIPPED WITH:

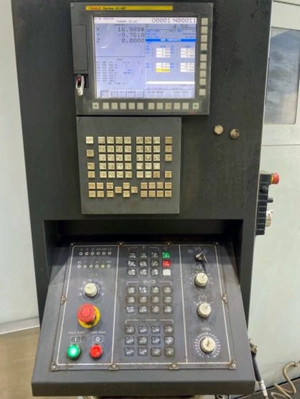

Fanuc CNC Control with 15” Screen
Thru Spindle Coolant- 300 PSI
High Torque Geared Spindle- 6,000 RPM
50 Taper Spindle
Spindle Chiller
4 Cross Roller Ways on Y-Axis
Box Ways on Z-Axis
Extra Large Doors
Double Augers
Belt Type Chip Conveyor
