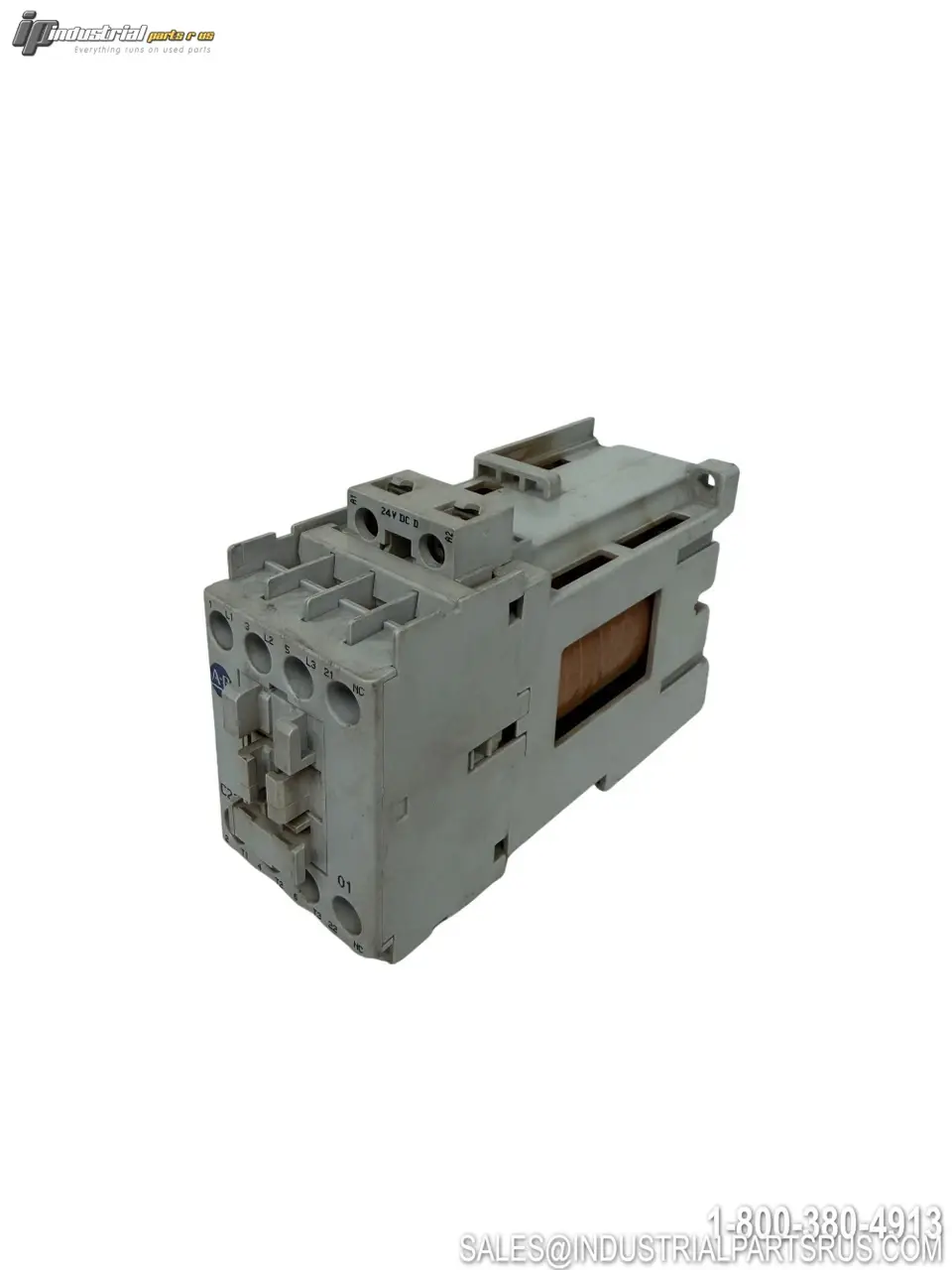

USED ALLEN-BRADLEY 100-C23Z*01

The Allen-Bradley 100-C23Z*01 is a Bulletin 100-C IEC contactor designed for industrial motor control and load-switching applications. This unit features a 3-pole configuration and includes one normally closed (NC) auxiliary contact.
The complete device number shown on this unit is
100-C23DJ01
. The main contactor marking is
100-C23Z*01
, Series C. The asterisk (*) is part of the catalog marking shown on the unit and represents additional coil/catalog information.
The exact coil/control voltage should be verified from the coil markings before installation.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
100-C23Z*01
Complete Device Number
100-C23DJ01
Series
C
Product Type
IEC Contactor
Product Family / Bulletin
Bulletin 100-C
Number of Poles
3
Auxiliary Contact
1 N.C. (Normally Closed)
AC-1 Rating
690V / 32A
AC-12 Rating
25A
AC-3 Motor Ratings
7.5 kW @ 230V; 7.5 kW @ 240V; 11 kW @ 400V; 11 kW @ 415V; 11 kW @ 500V; 10 kW @ 690V
Maximum UL Voltage
600 VAC
General Purpose Rating
30A
3-Phase Motor Rating @ 200V
5 HP
3-Phase Motor Rating @ 230V
7.5 HP
3-Phase Motor Rating @ 460V
15 HP
3-Phase Motor Rating @ 575V
15 HP
Coil / Control Voltage
Not Identified - Verify Coil Markings
Standards
IEC 60947-4-1 / IEC 60947-5-1
Mounting Type
DIN Rail / Panel Mount
Country of Manufacture
Switzerland
Manufacturer
Allen-Bradley
Important:
The main contactor is marked
100-C23Z*01
. The exact coil/control voltage is not confirmed from the visible markings. Please verify the coil information and review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
