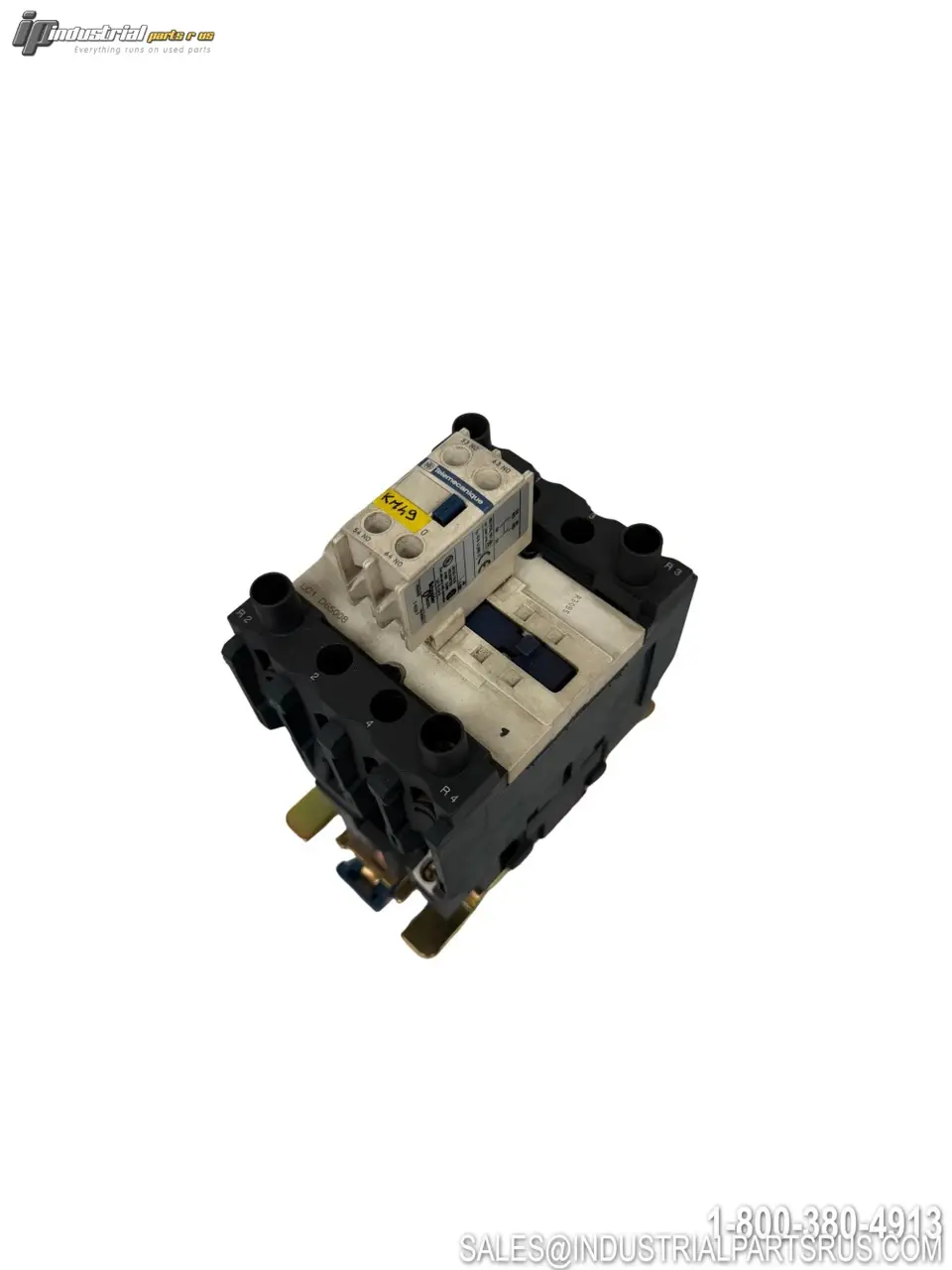

USED SCHNEIDER TELEMECANIQUE LC1-D65008

The Schneider Electric / Telemecanique LC1-D65008 is an industrial IEC magnetic contactor designed for switching and control applications. This unit is rated for
80A continuous current
and up to
600VAC
under the UL ratings shown on the unit.
This contactor is equipped with a
Telemecanique auxiliary contact block
providing
2 normally open (2NO) auxiliary contacts
, identified as terminals
53-54 and 63-64
. The exact coil/control voltage is not clearly visible in the provided photos and should be verified from the coil markings before installation.
Specification
Value
Brand
Schneider Electric / Telemecanique
Model / Part Number
LC1-D65008
Product Type
IEC Magnetic Contactor
Product Family
Telemecanique / Schneider Electric
Number of Power Poles
4
Continuous Current Rating
80A
Maximum UL Voltage
600VAC
Rated Insulation Voltage (Ui)
1000V
1-Phase Motor Rating
2 HP @ 240V
Auxiliary Contact Block
Telemecanique Add-On Auxiliary Contact Block
Auxiliary Contact Configuration
2 N.O. (Normally Open)
Auxiliary Terminals
53-54 and 63-64
Auxiliary Contact Rating
10A / Ui 500V
Coil / Control Voltage
Not Identified - Verify Coil Markings
Terminal Type
Screw Terminals
Standards
IEC 60947 / UL Listed
Country of Manufacture
France
Manufacturer
Schneider Electric / Telemecanique
Important:
This unit includes the auxiliary contact block shown in the photos with two normally open contacts (53-54 and 63-64). The exact coil/control voltage has not been confirmed from the visible markings. Please review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
