USED ALLEN-BRADLEY 100-C09*10

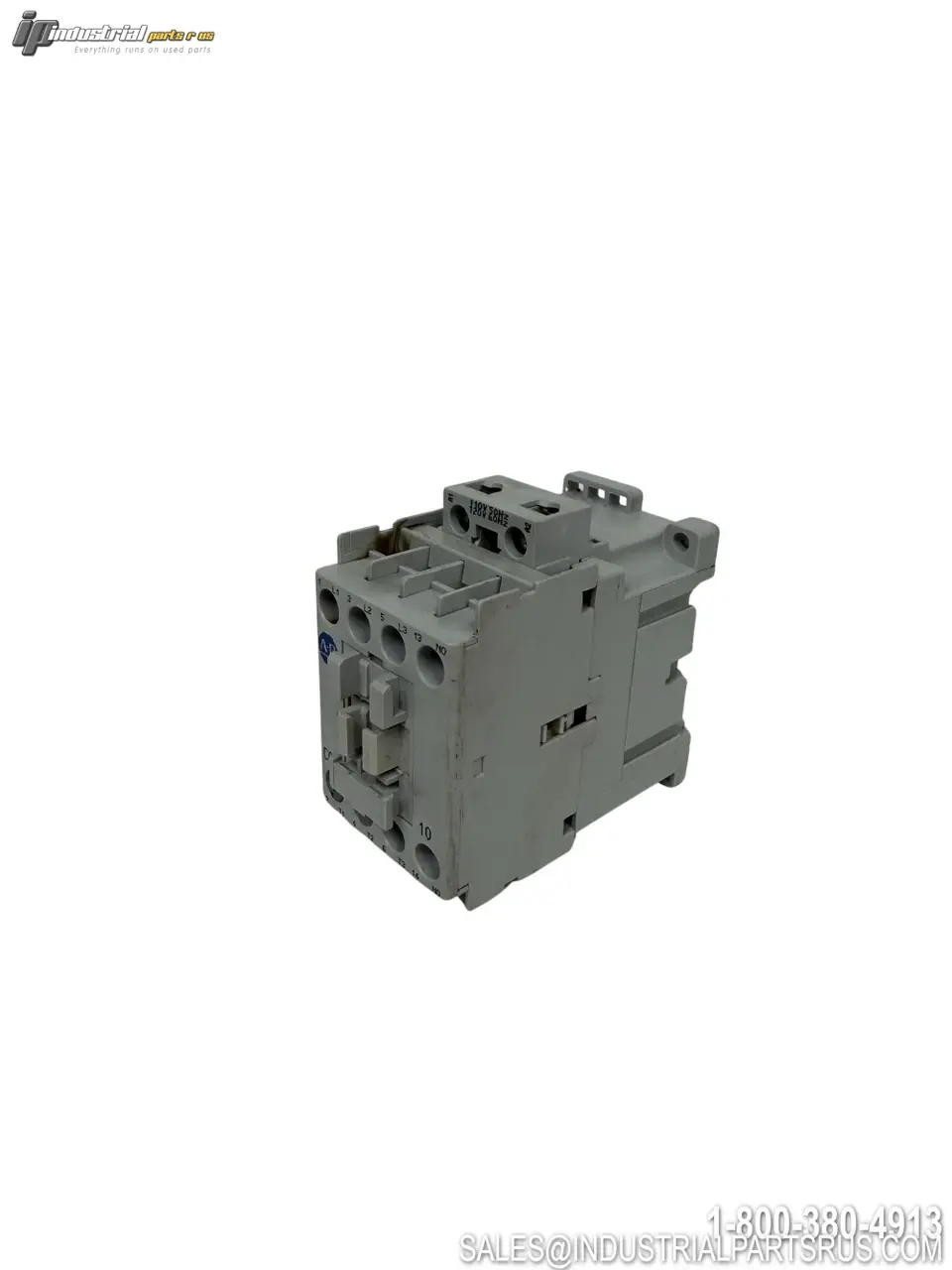

The Allen-Bradley 100-C09*10 is a Bulletin 100-C IEC contactor designed for industrial motor control and load-switching applications. This unit features three normally open (N.O.) main power poles plus one normally open (N.O.) auxiliary contact, identified by terminals 13 and 14.
The contactor is marked
100-C09*10
and is equipped with a
110V AC 50Hz / 120V AC 60Hz coil
. The asterisk (*) is part of the catalog marking shown on the unit and should be retained when identifying this item.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
100-C09*10
Product Type
IEC Contactor
Bulletin
100-C
Main Poles
3 N.O. Main Power Poles
Auxiliary Contact
1 N.O. (Terminals 13-14)
Coil Voltage
110V AC @ 50Hz / 120V AC @ 60Hz
AC-1 Rating
690V / 32A
AC-12 Rating
20A
AC-3 Rating
9A
AC-3 Power Ratings
3 kW @ 230V; 3 kW @ 240V; 4 kW @ 400V; 4 kW @ 415V; 4 kW @ 500V; 4 kW @ 690V
Maximum Operational Voltage
600 VAC
General Purpose Rating
25A Enclosed / 30A Open
1-Phase Motor Rating
0.5 HP @ 115V; 1.5 HP @ 200/230V
3-Phase Motor Rating
2 HP @ 200/230V; 5 HP @ 460V; 7.5 HP @ 575V
Auxiliary Contact Rating
A600 / P600
Rated Impulse Withstand Voltage
8 kV
Standards
IEC / EN 60947-4-1 / 60947-5-1
Country of Manufacture
Switzerland
Manufacturer
Allen-Bradley
Note:
This unit is marked
100-C09*10
. The coil is marked
110V 50Hz / 120V 60Hz
. Please review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
