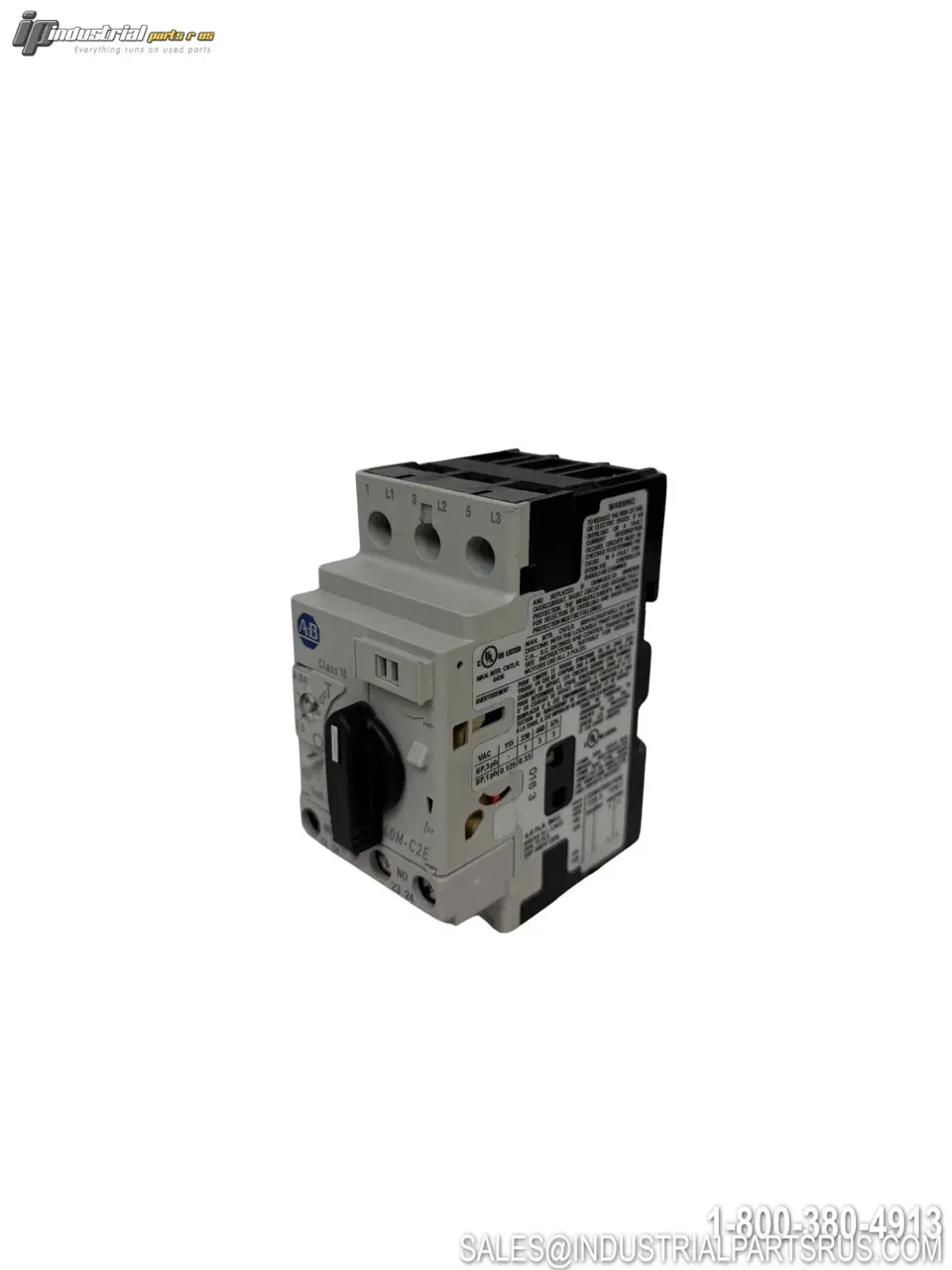

USED ALLEN-BRADLEY 140M-C2E-B40

The Allen-Bradley 140M-C2E-B40 is a Bulletin 140M motor protection circuit breaker designed for motor switching, overload protection, and short-circuit protection. This 3-pole unit features an adjustable current setting of
2.5 to 4.0A
and a
Class 10
trip characteristic.
This unit also includes
two normally open (2NO) auxiliary contacts
, identified by terminals
13-14 and 23-24
. The unit is marked
140M-C2E-B40, Series D
.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
140M-C2E-B40
Series
D
Product Family / Bulletin
Bulletin 140M
Product Type
Motor Protection Circuit Breaker / Manual Motor Controller
Number of Poles
3
Adjustable Current Range
2.5 - 4.0A
Maximum Current Setting
4.0A
Trip Class
Class 10
Utilization Category
AC-3
Frequency
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
6 kV
IEC Breaking Capacity
100 kA @ 400V / 100 kA @ 690V
Motor Rating @ 115V
1/3 HP
Motor Rating @ 230V
1 HP
Motor Rating @ 460V
3 HP
Motor Rating @ 575V
3 HP
Auxiliary Contacts
2 N.O. (Normally Open)
Auxiliary Contact Terminals
13-14 and 23-24
Operator Type
Rotary Manual Operator
Test Function
Yes
Standards
IEC / EN 60947-2, 60947-4-1
Country of Manufacture
Switzerland
Manufacturer
Allen-Bradley / Rockwell Automation
Note:
This unit is marked
140M-C2E-B40, Series D
and has an adjustable current range of
2.5-4.0A
. Two normally open auxiliary contacts, terminals
13-14 and 23-24
, are present on the unit. Please review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
