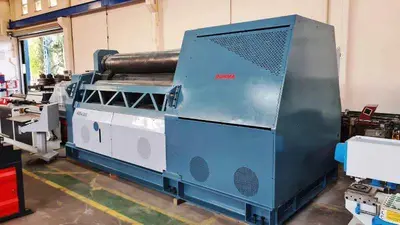

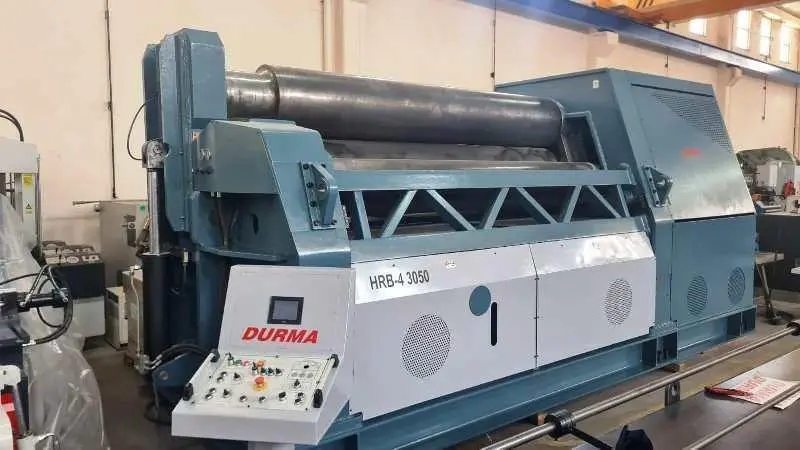

2" X 10' DURMA HRB-4 3050 4-ROLL PLATE BEDING ROLL

Equipped With
2" X 10' DURMA HRB-4 3050 4-ROLL PLATE BEDING ROLL
New 2013
Completely Refurbished 2025
Motor Driven with 150 HP, 3-Phase, 60 Cycle 4480 Volt Controls
SPECIFICATIONS:
Roll Length                                            120"
Max. Thickness Capacity                        2"
Max. Rolling Capacity                            10' x 2.08" @102" ID @ 36,000 PSI
Max Pre Bend Capacity                          10' x 1.81" @ 102" ID @ 36,000 PSINumber of Rolls                                     4
Aprox. Weight                                        99,300 Lbs.
STANDARD EQUIPMENT AND FEATURES
PLC Control System
Conical Bending
Induction Hardened Rolls
Stress Relieved Steel Construction Body
High Tensile Carbon Steel Rolls
Sealed sperical Roller Bearings
4-Rolls drive System _ Each Roll Has Its Own Hydraulic Motor
Hydraulic Opening Cover
Welding Possibility on the Machine
Electronic Sysnchronized Rolls
Adjustable Pinching Pressurer
Overload Protection
Safety Wire Aroimd the Machine and Emergency Stop Button on Control Panel
Manual Lubrication
