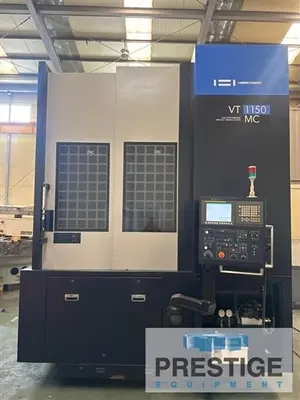

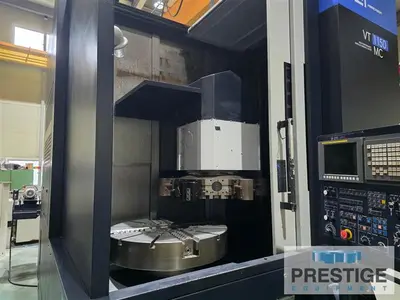

USED 2015 HWACHEON VT-1150-MC

CAPACITY:
Table Diameter: 40.0"
Maximum Swing over Bed: 53.15"
Maximum Cutting Diameter: 51.96"
Maximum Cutting Height: 37.40"
Table Weight Capacity: 6,600 Lbs.
Spindle Motor: 73.5 HP/60 HP
Spindle Speeds: 4-630 RPM
Spindle Bearing Diameter: 7.87"
X-Axis Travel: 24.02"
Z-Axis Travel: 37.40"
Rapid Speed (X/Z)...................... 944.88": 944.88"
C-Axis Indexing: 0.001 Deg.
Live Milling Speed: 3,000 RPM
Live Milling Motor: 10 HP/7.5 HP
Approximate Floor Space: 110.67" x 155.63"
Approximate Machine Height............. 139.45": 139.45"
Approx. Weight: 53,131 Lbs

Equipped With:

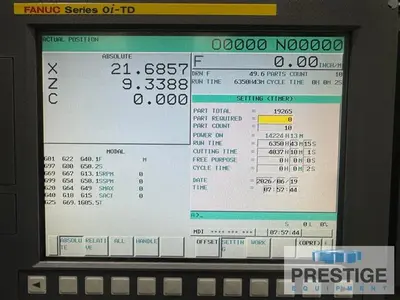

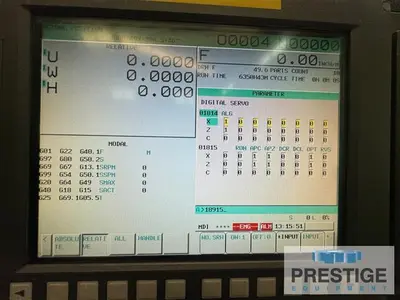

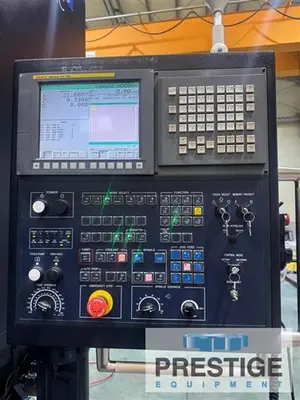

Fanuc Oi-TD CNC Control

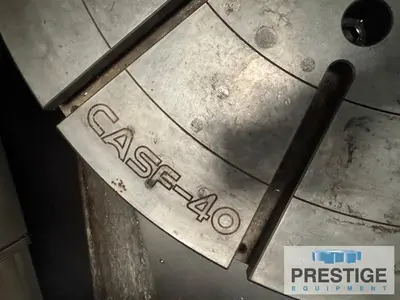

40" Hydraulic Chuck
Live Milling
C-Axis (0.001 Deg.)
12-Station Turret w/ ATC
73.5 HP Motor
Tool Setter
Chip Conveyor
(1) Angular Mill/Drill Holder
(1) Straight Mill/Drill Holder
X/Z Axis Scales

Features:
Fanuc Oi-TD CNC Control
40" Hydraulic Chuck
Live Milling
C-Axis (0.001 Deg.)
12-Station Turret w/ ATC
