USED 2020 FomIndustrie Dali 70
Overview

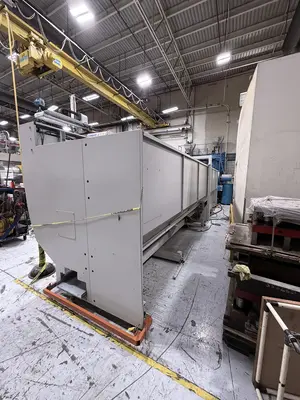

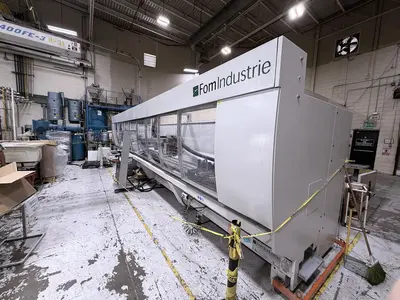

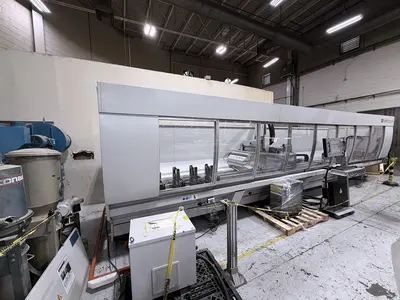

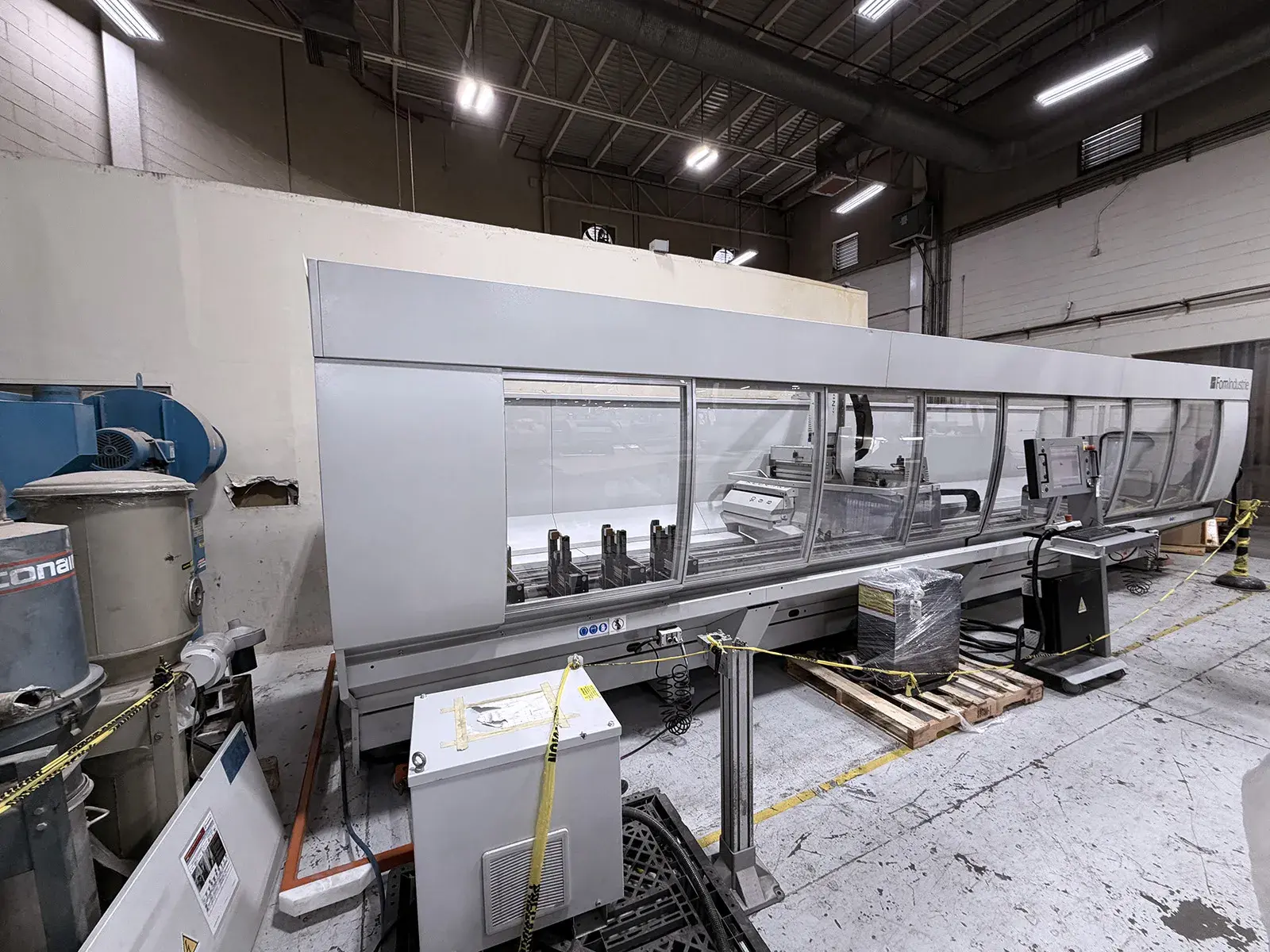

Used FomIndustrie Dali 70 Horizontal Boring Mill, (2020) with FOMCAM Control. Designed for high-speed milling, drilling, tapping and slotting of long aluminum, PVC, light alloy and thin-walled steel profiles. Ideal for architectural glazing, facades, automotive, rail, solar structures, frames, gates and industrial applications.
Specs
X-axis: 7,320 mm (288.2 in.)
Y-Axis: 1,040 mm (40.9")
Z-axis: 435mm (17.1")
A-Axis spindle: Rotation from -15° to +195°
Working Capacity: 7,000 × 220 × 250 mm
X-Axis Rapid: 100 m/min
Y-axis rapid: 33 m/min
Z-Axis Rapid: 13 m/min
A-Axis Speed: 180°/sec
FOM electrospindle: 6.5 kW S1
Tool Interface: ISO 30
Rated spindle torque: 7 Nm
Tool Magazine: 7-position
Max Tool Length: 150 mm
Max Tool Diameter: 20 mm
Max blade diameter: 200 mm
Overall Dimensions: 8,600 × 2,051 × 2,214 mm
Approx. footprint: 28'2" × 6'9"
Approx. height: 7'3"
Weight: 3,900 kg / 8,598 lb
Equipped With

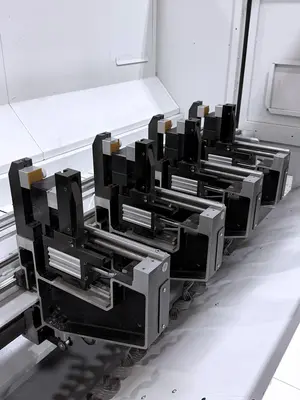

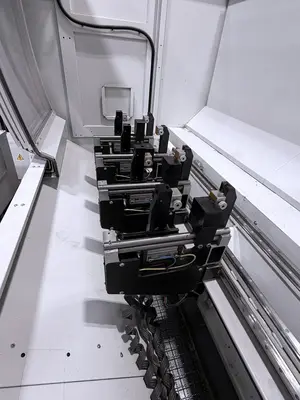

Eight independently positionable pneumatic clamps/vices installed
10 total ISO 30 tool positions consisting of a seven-position magazine plus three positions on the machining head

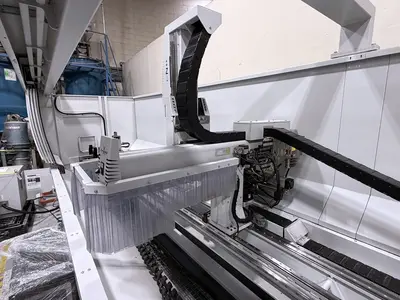

Air cooled ISO 30 electro spindle rated 6.5 kW continuous/8 kW intermittent
19
000 RPM and 7-Nm continuous torque

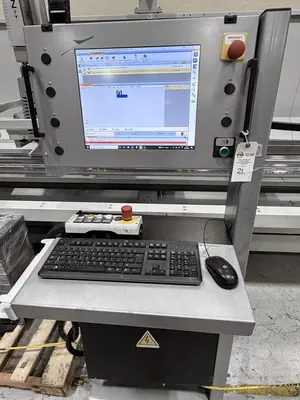

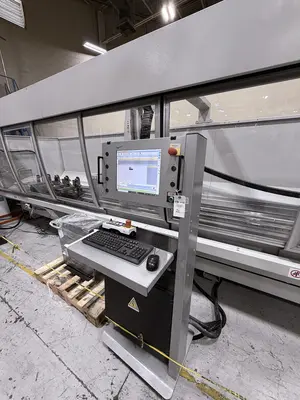

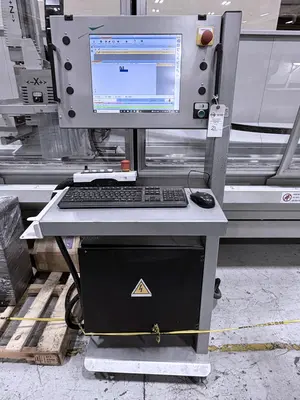

FOMCAM PC control
Rigid tapping; multi-piece and pendulum machining capability

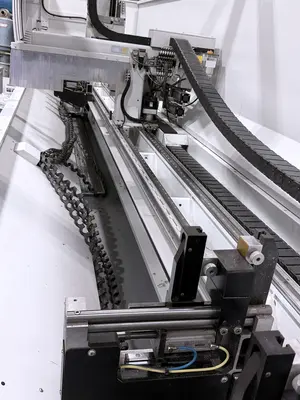

Automatic guide and ball screw lubrication

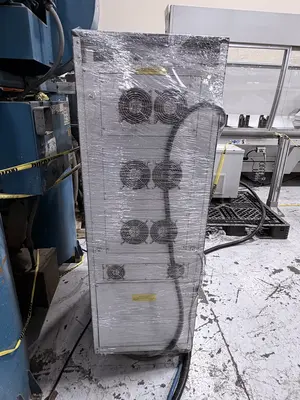

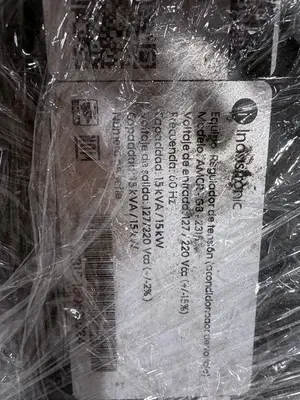

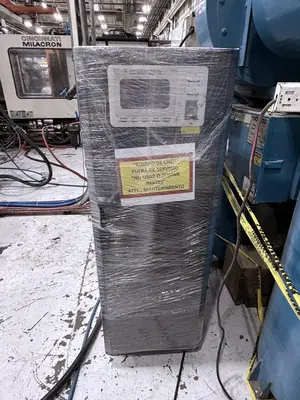

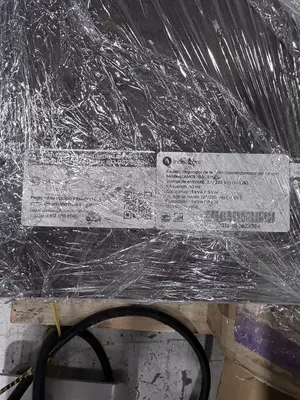

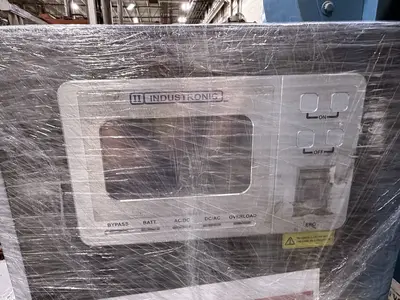

Includes Industronic power-conditioning/UPS cabinet
ISO 30 toolholders and photographed accessories
