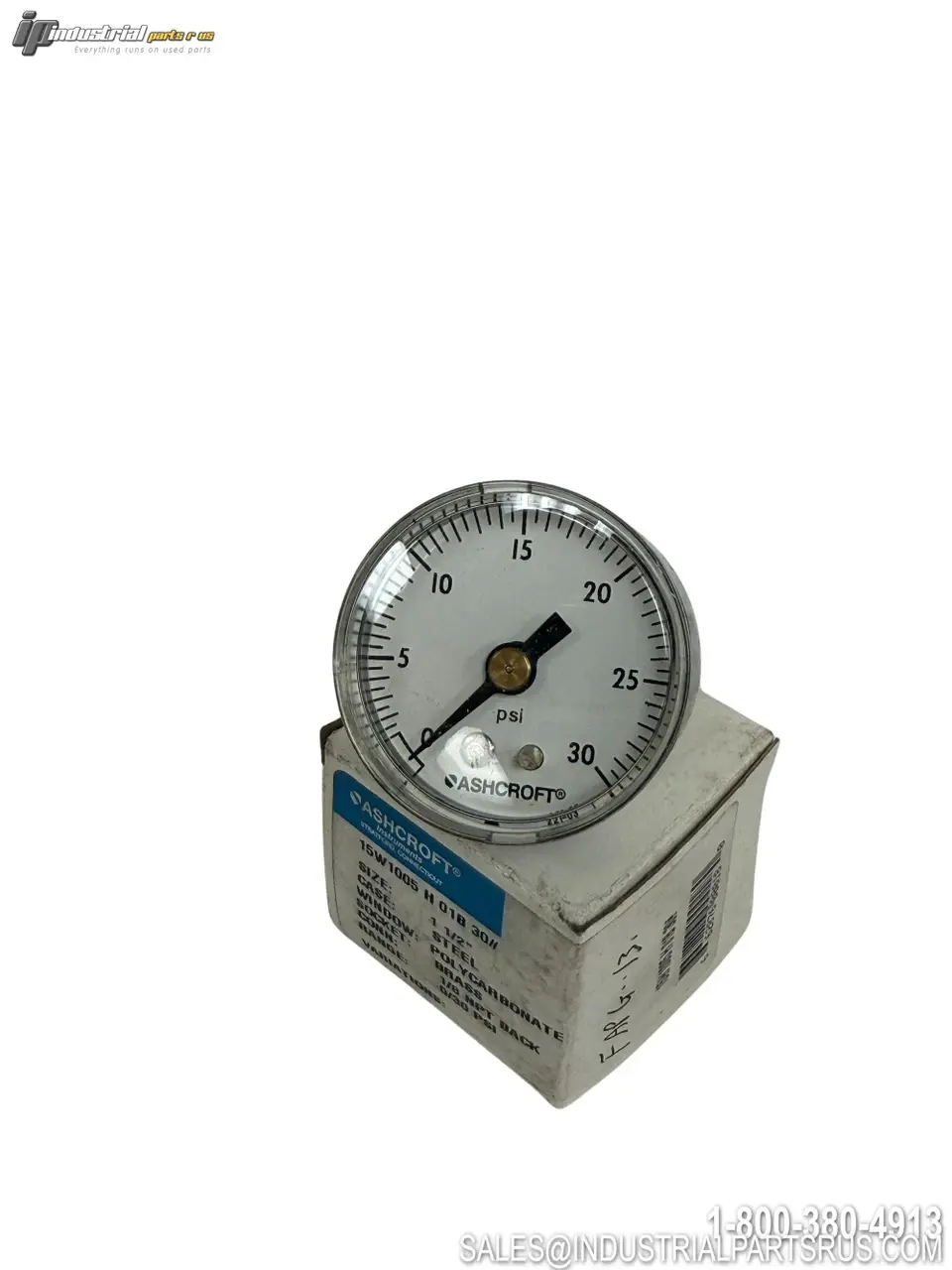

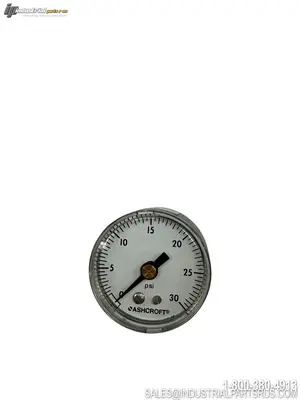

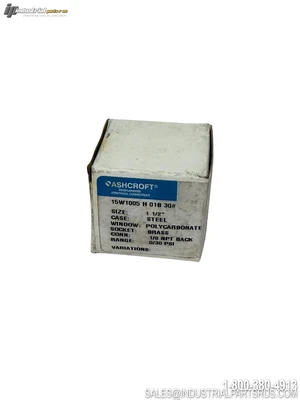

USED ASHCROFT 15W1005 H 01B 30#

The Ashcroft Type 1005 Commercial Pressure Gauge (15W1005 H 01B 30#) is a 1-1/2" dial analog gauge designed for economical, reliable pressure measurement in a wide range of industrial and OEM applications. It features a black-painted steel case, heat-resistant push-in polycarbonate window, and a Bourdon tube/brass socket wetted path rated to 0–30 PSI. The center back (1/8" NPT) connection and dry-filled design make it suitable for compressors, filter regulators, water pumps, beverage-dispensing equipment, paint sprayers, and similar equipment. The PowerFlex™ movement provides enhanced shock, vibration, and pulsation resistance for reliable performance in demanding environments.
Specification
Value
Brand
Ashcroft
Model / Part Number
15W1005 H 01B 30#
Series / Type
Type 1005 Commercial Pressure Gauge
Dial Size
1-1/2 inch (1.5 in)
Pressure Range
0 – 30 PSI

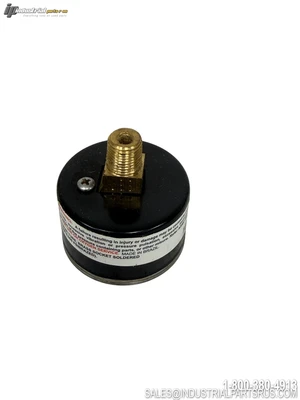

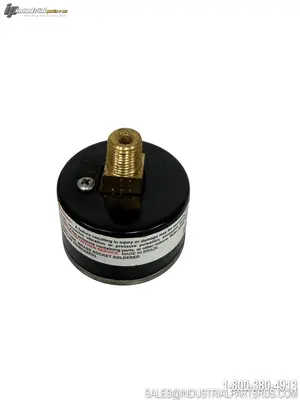

Connection Size
1/8 in NPT Male
Connection Location
Center Back (CBM)
Case Material
Black-Painted Steel
Window / Lens Material
Polycarbonate (Heat-Resistant Push-In)
Socket Material
Brass
Bourdon Tube Material
Bronze
Dial / Face Material
Aluminum
Pointer Material
Aluminum (Black)
Movement Type
PowerFlex™ with Polyester Segment
Fill Type
Dry (Non-Filled)
Accuracy
±3-2-3% of Span (ASME B40.100 Grade B)
Operating Temperature Range
-40°F to 150°F (-40°C to 65°C)
Display Type
Analog
Scale
Single Scale (PSI)
Industry Standard
ASME B40.100, CRN Approved
Wetted Parts Material
Brass / Bronze (Copper Alloy)
Manufacturer
Ashcroft Inc.
We warranty all items for 30 days from date of purchase.
