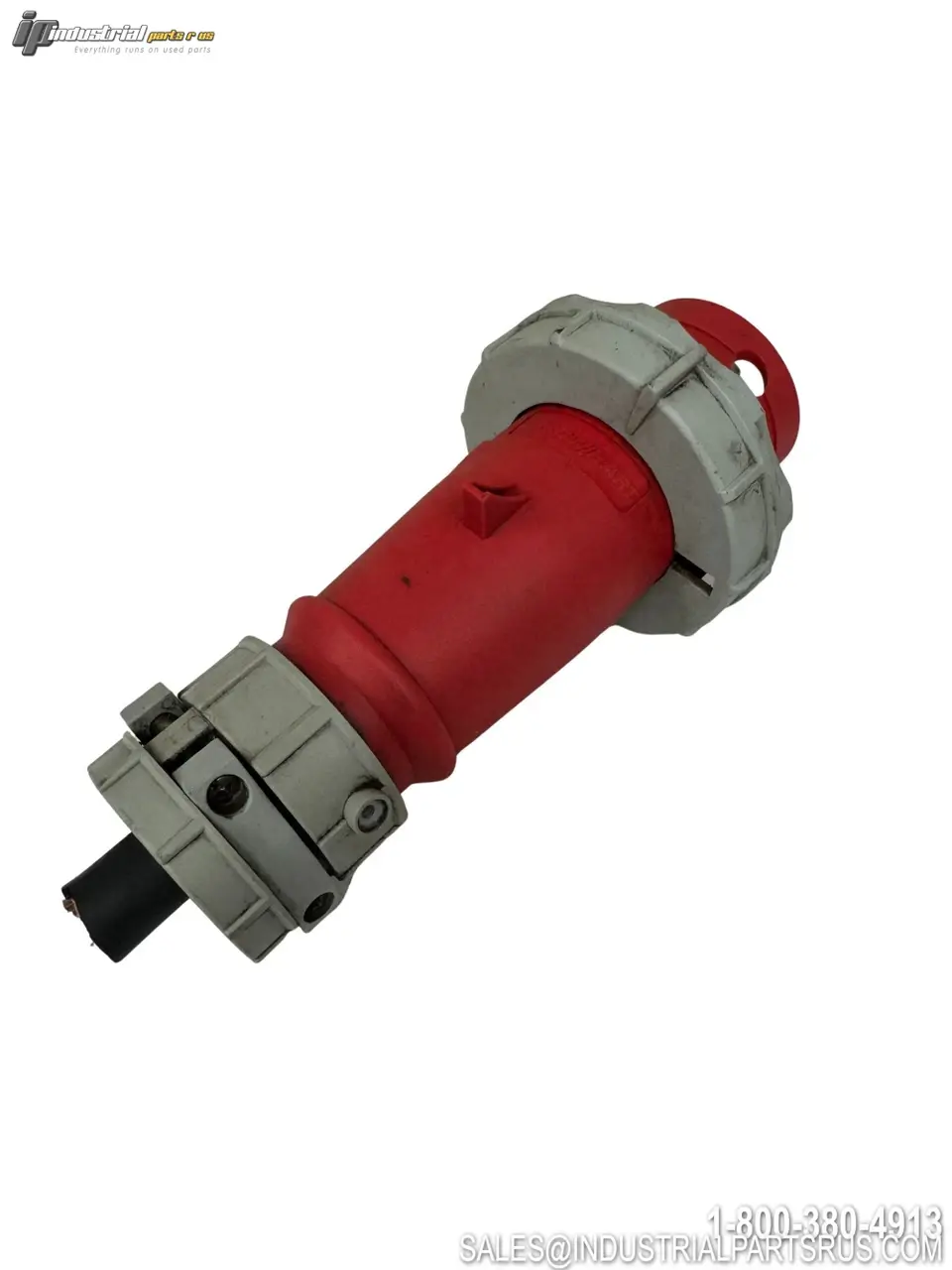

USED ARROW/HART AH430P7W

The Arrow Hart (Eaton) AH430P7W is an IEC 60309 watertight pin and sleeve plug rated for 30 amperes at 480V AC, three-phase service. Constructed from rugged nylon with nickel-plated brass contacts, this male plug provides IP69K-rated protection against high-pressure, high-temperature washdown environments. It accepts #10–#2 AWG back-wire conductors and is designed for secure mating with compatible IEC 309 receptacles and connectors in demanding industrial wet locations.
Specification
Value
Brand
Arrow Hart (Eaton)
Model / Part Number
AH430P7W
Product Type
IEC 60309 Pin & Sleeve Plug (Male)
Amperage
30A
Voltage
480V AC
Phase
3-Phase
Number of Poles
3-Pole
Number of Wires
4-Wire (with Grounding)
Gender
Male (Plug)
IP Rating (Watertight)
IP69K (also IP67)
Wire Range (AWG)
#10–#2 AWG
Cable Entry Diameter Range
0.433–0.985 in (1.10–2.50 cm)
Wiring Method
Back Wire
Horsepower Rating
10 HP
Color
Red
Body Material
Nylon
Contact Material
Nickel Plated Brass
Standard
IEC 60309 (IEC 309)
Clock Position (Ground)
7 Hour
Series
IEC 309 Watertight
Certifications
cRUus
Product Length / Depth
10.375 in
Product Height
4.813 in
Product Width
4.75 in
Product Weight
0.997 lb
We warranty all items for 30 days from date of purchase.
