Tank, 1,000 Gallon, Stainless Steel, Agitated, Jacketed, DT/DB #S745254
Overview
Description

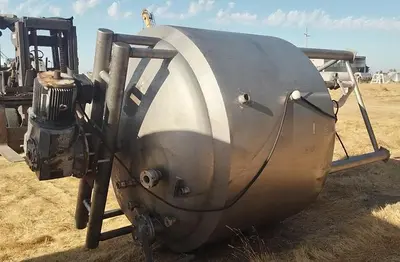

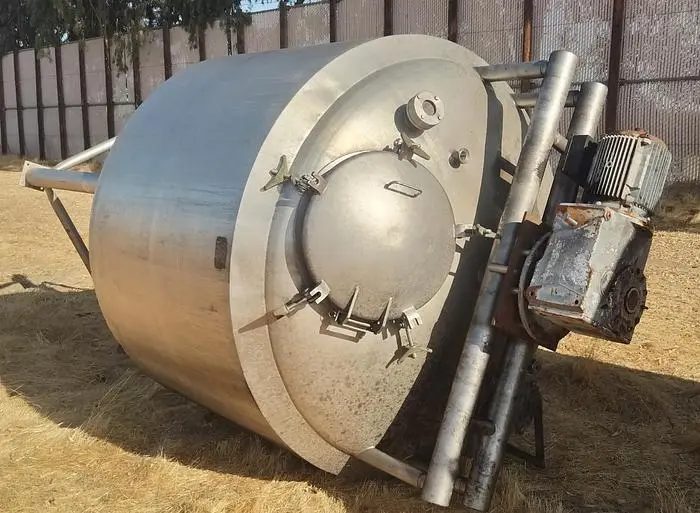

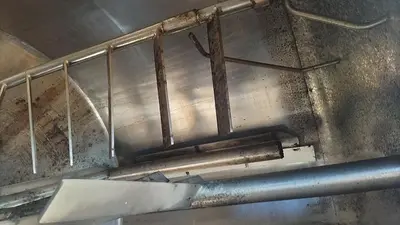

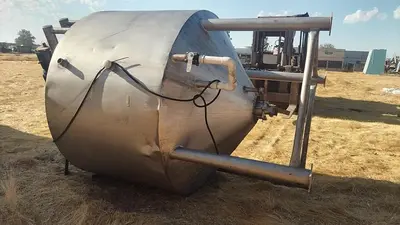

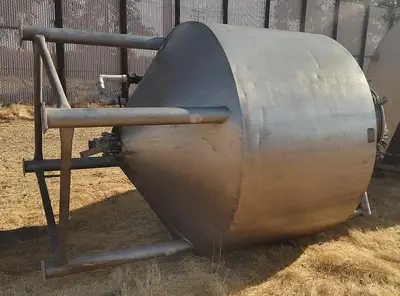

Stainless Steel Jacketed and Agitated Tank, approximately 1,000 gallon capacity. The dimensions are 6' diameter X 4'3" straight side (7'6" overall depth), featuring a dish top and a cone bottom that leads to a center bottom outlet with a 3-inch diameter discharge, 12' overall height. Equipped with a bridge mount agitation system, including a motor with a right-angle gearbox, it drives a double motion agitator with scraper agitator blades. The tank was previously utilized in vegetable processing. The top configuration includes multiple inlets: (3) 2", (2) 3", (1) 6" and a 21-½ inch diameter manway with cover. Jacketed vessel with (2) 2" side inlet/outlet connections for the jacket. Vessel and drive do not have visible nameplates.
Specifications
Stock Number: S745254
Gallons: 1000
Dimensions: 6' Diameter X 7'6" overall depth
Jacketed: Yes
Agitated: Yes
HP: 5 (Estimate)
Basis: FOB
