USED 1999 KURAKI KBT-11WA CNC TABLE TYPE HORIZONTAL BORING MILLA

Full 4th Axis B-Axis Rotary Table - .001 Degree

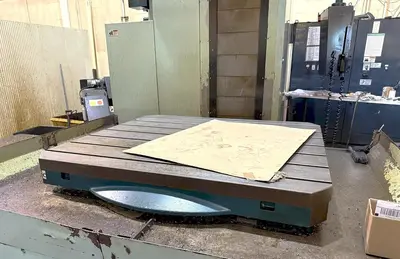

T-Slotted 55" x 63" Rotary Table
Rigid Tapping

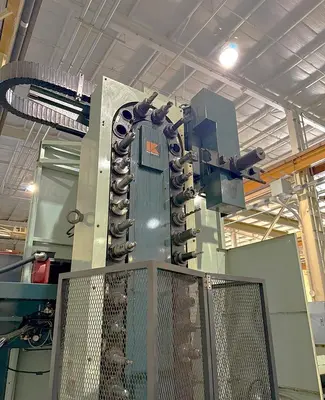

40 Station Tool Changer
Chip Conveyor

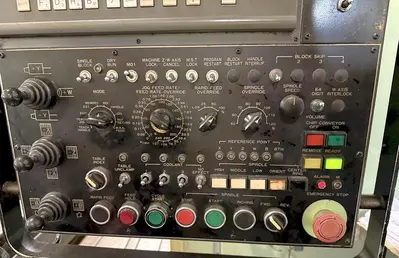

Hand Held Remote Jog Handle

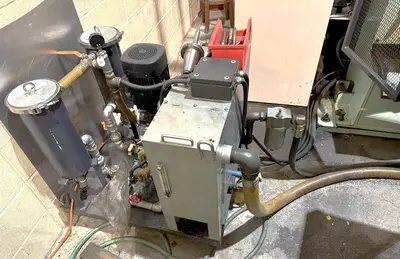

Spindle Chiller Unit
Variable 3 Speed

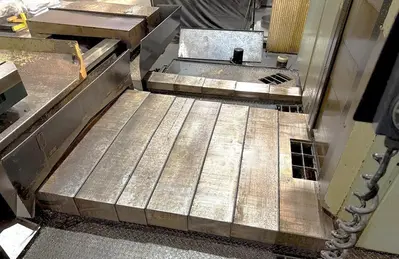

Way Covers
Coolant System with Tank & Pump

**Cutting Hours 11,705**

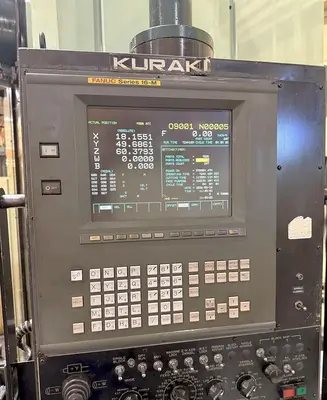

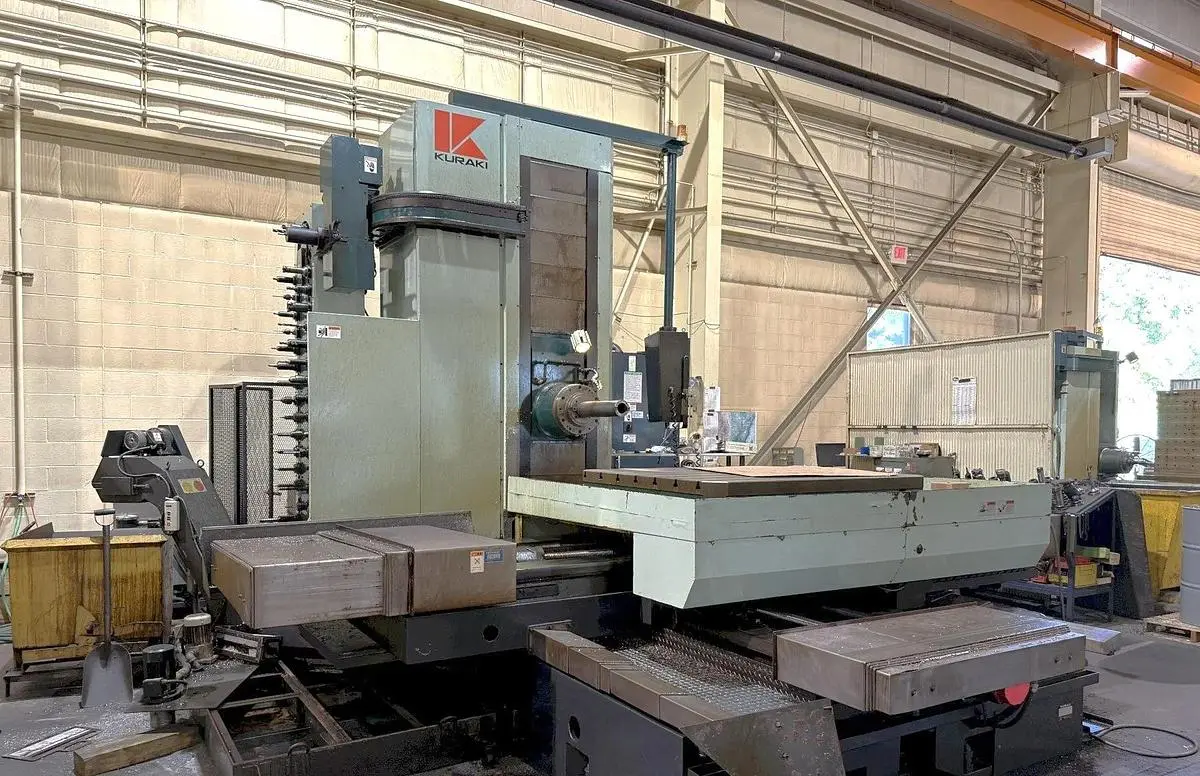

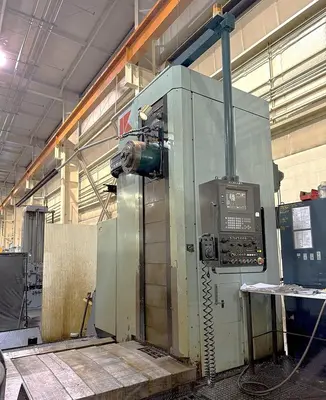

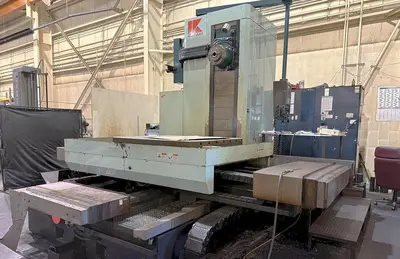

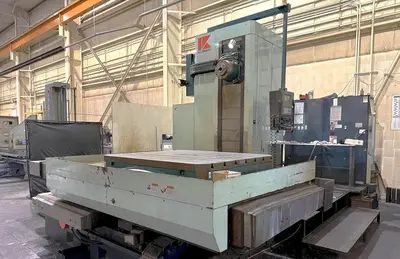

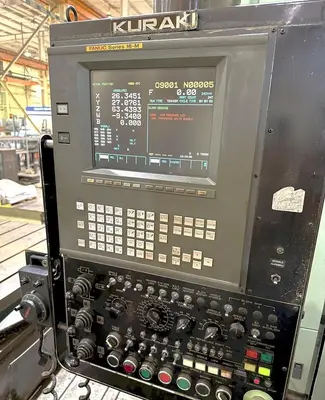

The 1999 Kuraki KBT-11WA is a CNC Table Type Horizontal Boring Mill equipped with advanced features for precision machining. It utilizes a Fanuc 16M Series Control system, ensuring efficient operations. The substantial table measures 55" x 63" and can support a maximum weight of 14,300 lbs., catering to heavy-duty applications. With an X-Axis Travel of 78.7", Y-Axis Travel of 59.1", and Z-Axis Travel of 57", the machine offers extensive movement, complemented by a W-Axis Travel of 19.7" for added versatility.

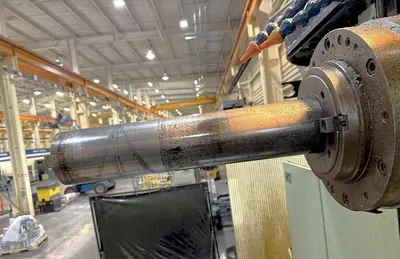

A prominent highlight is its CAT #50 spindle, powered by a robust 30 HP motor, capable of speeds ranging from 2 to 2,500 RPM within three transmission steps, and a spindle diameter of 4.33". The spindle is supported by a 40-station tool changer, facilitating efficient tool management, with tool diameters accommodating 4.92" or up to 9.05" with the next position empty. Rapid Traverse Rates of 394 IPM ensure swift repositioning, while Cutting Feedrates of 157 IPM provide steady cutting performance.

The machine's overall footprint is approximately 232" x 187", and it has a substantial weight of 63,800 lbs., reflecting its sturdy build and capacity for demanding tasks. Integrated with a full 4th axis table and equipped with a conveyor, this horizontal boring mill is designed to meet the needs of precision and large-capacity metalworking operations.
