Used DCI 15,000-Gallon 316 Stainless Steel Jacketed Mix Tank – 150 PSI Jacket, 15 HP Agitator & CIP

Manufacturer Information
DCI, Inc.
DCI is a recognized manufacturer of stainless steel tanks, pressure vessels, reactors, and processing equipment for food, beverage, dairy, pharmaceutical, biotechnology, chemical, and other sanitary process industries. DCI vessels are commonly designed for mixing, blending, storage, heating, cooling, and sanitary processing applications.
This 15,000-gallon DCI jacketed mix tank combines large-volume 316 stainless steel construction with a high-pressure jacket, mechanical agitation, and integrated CIP spray devices.
Description

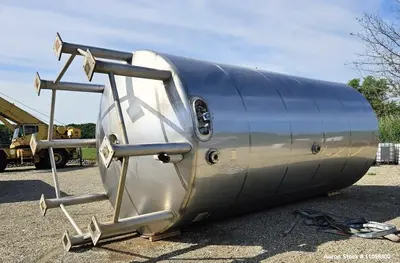

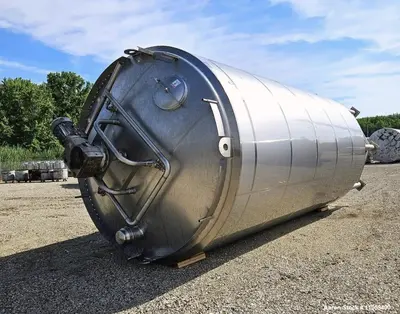

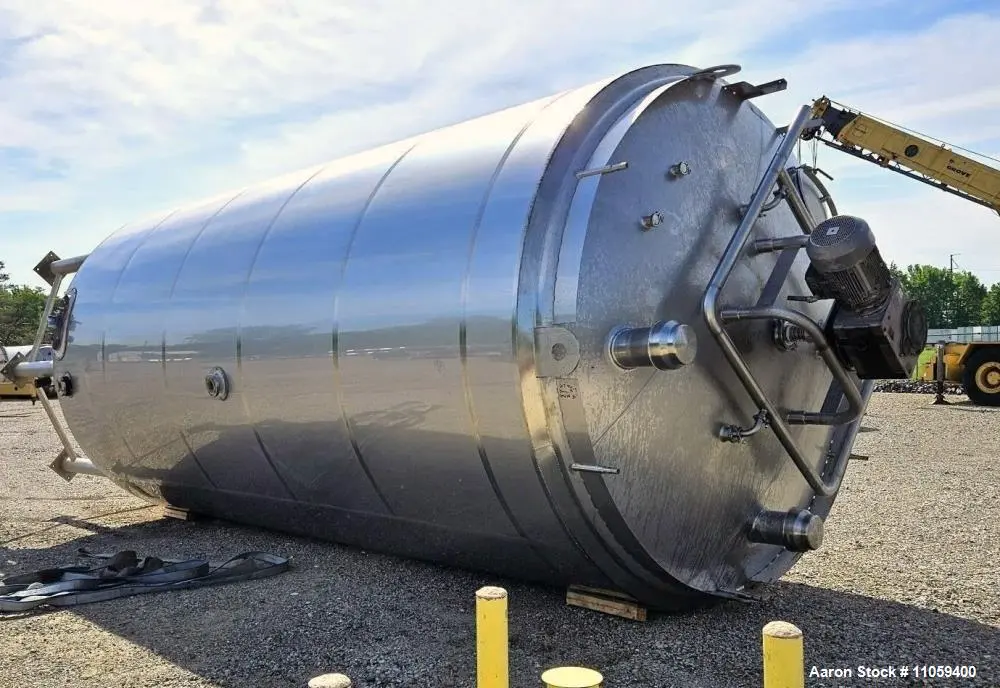

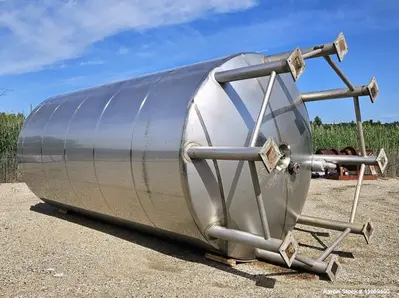

Available for sale is a used DCI 15,000-gallon jacketed stainless steel mix tank constructed of 316 stainless steel.
The vessel measures approximately 10'8" in diameter x 21' high, with an approximate overall height of 30'6". Its large 15,000-gallon capacity makes it suitable for high-volume batch processing, blending, holding, and storage applications.
The vessel features a dished bottom with a 3" center-bottom outlet for product discharge. Temperature-controlled processing is supported by a jacket rated for 150 PSI at 350°F, allowing compatible heating or cooling media to be used for applications requiring thermal control.

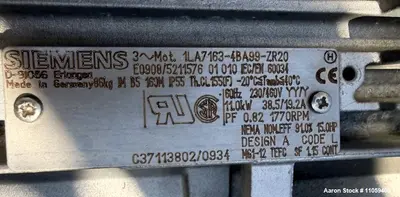

Mixing is provided by a 15 HP top-mounted agitator, enabling bulk circulation and blending of compatible liquid and semi-liquid products.
For sanitary cleaning operations, the tank is equipped with top- and side-mounted spray balls for clean-in-place (CIP). This configuration can help facilitate internal vessel cleaning without requiring complete manual cleaning between compatible production runs.
With its 15,000-gallon capacity, 316 stainless steel construction, 150 PSI jacket, 15 HP mixer, and CIP equipment, this DCI vessel offers a substantial processing solution for food, beverage, dairy, chemical, and other compatible industrial applications.

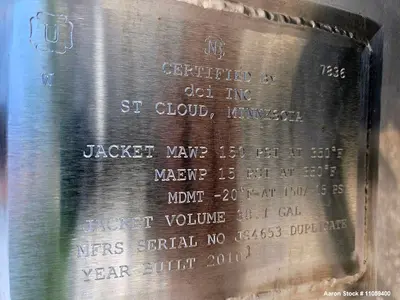

Serial Number: JS4653
National Board Number: 7836
Specifications

Specification
Details

Manufacturer
DCI

Equipment Type
Jacketed Stainless Steel Mix Tank

Capacity
Approx. 15,000 Gallons

Construction
316 Stainless Steel

Diameter
Approx. 10'8"

Vessel Height
Approx. 21'

Overall Height
Approx. 30'6"

Bottom
Dished

Bottom Outlet
3" Center Bottom

Jacket
Included

Jacket Pressure Rating
150 PSI

Jacket Temperature Rating
350°F

Agitator
Top Mounted

Agitator Motor
15 HP

CIP
Top & Side-Mounted Spray Balls

Serial Number
JS4653

National Board Number
7836

Condition
Used

Typical Applications

Large-volume batch mixing
Liquid blending
Heated product processing
Cooled product processing
Ingredient preparation
Sanitary liquid processing
Product holding and storage
Batch formulation
Food and beverage processing
Dairy processing
Chemical blending
Semi-liquid product processing

Products This Tank Could Be Used For

Dairy products
Beverage bases
Liquid food ingredients
Syrups and concentrates
Sauces and liquid formulations
Water-based solutions
Chemical solutions
Cleaning and sanitation products
Liquid additives
Personal care formulations
Compatible semi-liquid products
Other materials compatible with 316 stainless steel

Actual suitability depends on product chemistry, viscosity, specific gravity, sanitary requirements, agitation requirements, operating pressure and temperature, and the condition and design ratings of the vessel and jacket.
Frequently Asked Questions

What is the capacity of this DCI mix tank? The vessel has an approximate 15,000-gallon capacity, making it suitable for large-volume production and holding applications.

Is the tank constructed of 304 or 316 stainless steel? The provided specifications identify the vessel as 316 stainless steel, offering compatibility with a broad range of sanitary and industrial products.

Is the tank jacketed for heating or cooling? Yes. The vessel has a jacket rated for 150 PSI at 350°F. The specific heating or cooling medium and operating conditions should remain within applicable design ratings.

What type of mixing equipment is included? The tank is equipped with a 15 HP top-mounted mixer for blending and bulk product circulation.

Does the vessel have a CIP system? The tank includes top- and side-mounted spray balls designed to support clean-in-place operations.

Can Aaron Equipment assist with shipping and logistics? Yes. Due to the vessel's approximately 10'8" diameter and 30'6" overall height, specialized rigging and oversized transportation will likely be required. Aaron Equipment can assist with loading coordination, oversized freight, domestic and international transportation, and logistics planning.
