NEW GRUNDOMAT GRUNDOMAT 180 P

The GRUNDOMAT 180 P is a heavy-duty 7 in. pneumatic piercing tool — the largest in the Grundomat line — built for trenchless installation of pipes, cables, conduit, and utility lines. Powered by compressed air, this cylindrical air-hammer drives through the ground to create a clean underground bore without open-cut trenching.

What contractors use it for: boring under roads, railways, parking lots, and other surface structures to install water and gas lines, sewer laterals, casing, and large conduit runs — no open-cut trenching, no surface restoration. Requires a 159 CFM tow-behind compressor.

Also known as: underground mole, boring missile, air mole, ground piercing tool, horizontal boring tool, trenchless bore tool, pneumatic gopher. Whatever your crew calls it — this is the 7 in. class tool.

As a pneumatic mole, the GRUNDOMAT 180 P performs well in displaceable soils such as sand, loam, and gravel, including soil conditions with fracturable rocks. It is not designed for solid rock or unfracturable rocks, and very soft soils may affect accuracy because the tool’s own weight can cause deviation.

Package Options

Tool only (P/N GV1800030) — the boring tool itself, for crews that already have an air hose and lubricator.
Basic package (P/N 07076970P) — tool, 50 ft. air supply hose, lubricator, 1 gallon Grundo-Oil tool lubricant, magnetic starting level, operator’s & parts manual.

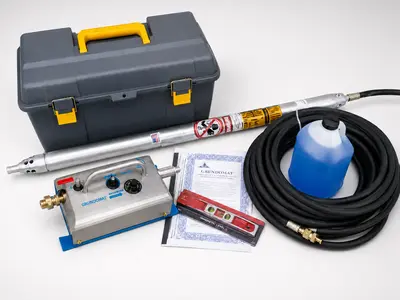

Deluxe package (P/N 07060470P) — everything in the Basic package plus a maintenance tool box matched to the 180P: spanner wrench pair, replacement spanner pins, liquid Teflon, seal compression clamp, roll pin punch, 277 threadlocker (10 ml), primer (2 oz), and roll pin kit.

Part Number Cross-Reference

GV1800030 — GRUNDOMAT 180P, tool only · 07076970P — GRUNDOMAT 180P, basic package · 07060470P — GRUNDOMAT 180P, deluxe package. Smaller tool? See GRUNDOMAT 145P: GV1450030 / 07076957P / 07060457P.

Ships from our US warehouse — backed by warranty.

The GRUNDOMAT 180 P is a practical choice for utility contractors who need reliable large-diameter piercing performance, less surface damage, and efficient setup on demanding crossings.
