NEW GRUNDOMAT GRUNDOMAT 75 P

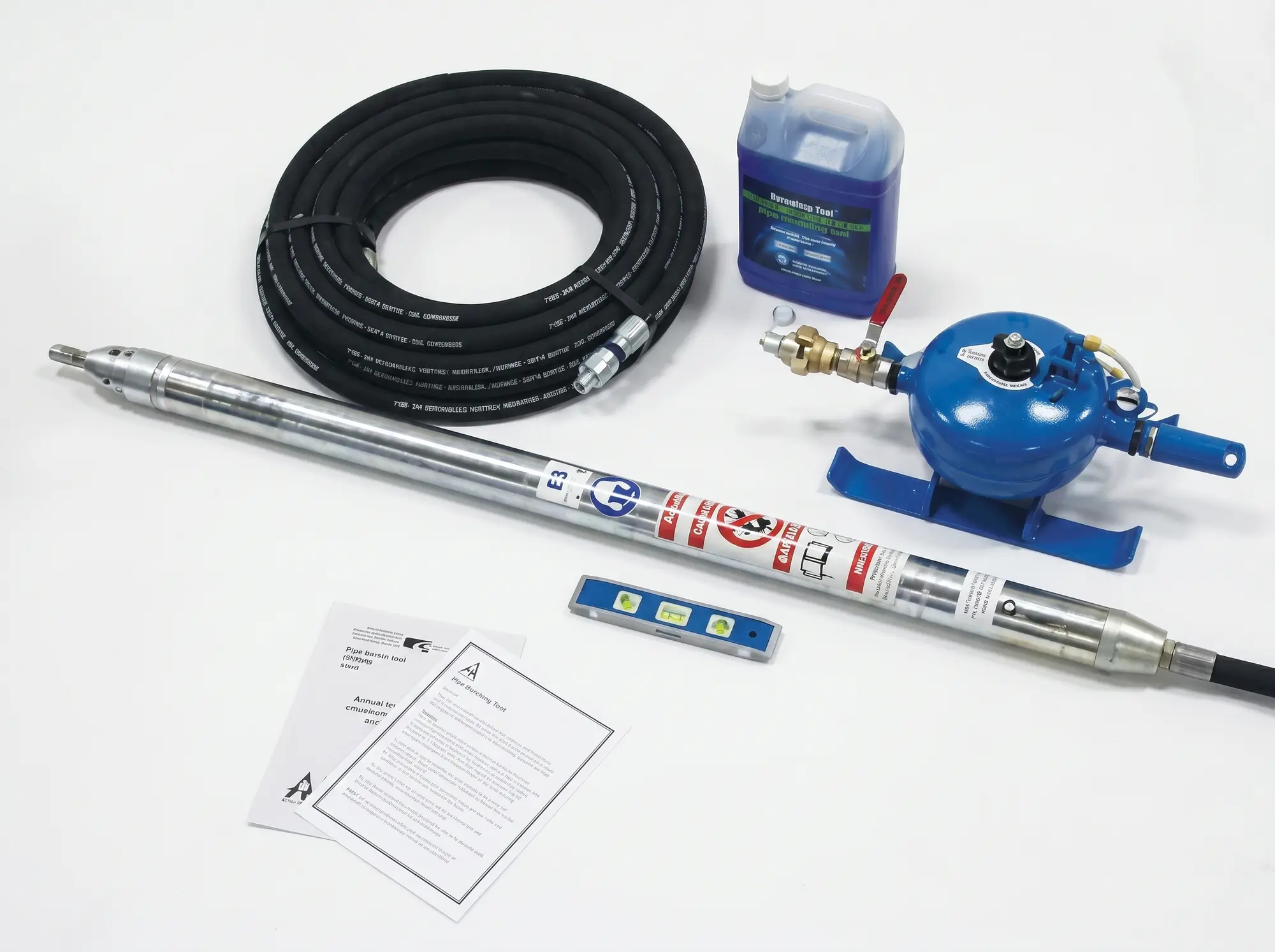

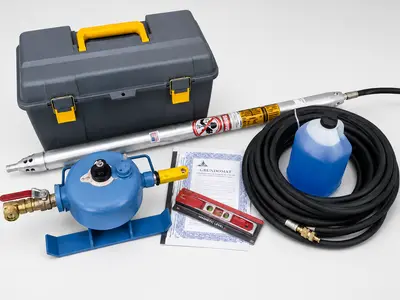

The GRUNDOMAT 75P is a 3 in. / 75 mm horizontal boring tool designed for trenchless installation of pipes, cables, conduit, and utility lines. Powered by compressed air, this cylindrical air-hammer drives through the ground to create an underground bore without open-cut trenching.

This GRUNDOMAT 75 mm boring tool is suitable for crossings under roads, driveways, sidewalks, parking lots, landscaped areas, and other surface structures where crews need to reduce surface disruption.

As a pneumatic mole, the GRUNDOMAT 75P performs in displaceable soils such as sand, loam, and gravel, including soils with fracturable rocks. The official model name is GRUNDOMAT 75P, although some customers search for it as GRUNDOMAT P75 or simply GRUNDOMAT 75.

This boring mole is not designed for solid or unfracturable rock. Very soft soils may also reduce accuracy because the tool’s weight can cause deviation.

Specification

Value

Model

GRUNDOMAT 75 P

Tool Diameter

3 in. / 75 mm

Length

57 in.

Weight

75 lbs

Air Consumption

32 CFM

Strokes Per Minute

400

The GRUNDOMAT 75 P is a strong, job-site ready underground piercing tool for contractors who need dependable boring performance, efficient setup, and less surface damage on utility installation jobs.
