Used EXFO MAX-715B-M1-EA-RF 1310/1550 nm Fiber Optic Tester. Stock number: E5
Overview
The MaxTester 715B iOLM is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).
IOLM only
7-in (178-mm) outdoor-enhanced touchscreen,
800 x 480 TFT
Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s
2 GB internal memory
(20 000 OTDR traces, typical)
Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore)
TR-NWT-001138
Power supply AC/DC adapter, input 100-240 VAC,
50-60 Hz, 9-16 V DCIN
15 Watts minimum
1625 nm: highpass >1595 nm isolation
>50 dB from 1270 nm to 1585 nm
±(0.75 + 0.0025 % x distance +
sampling resolution)
In stock and job-site ready. Package components available for individual sale. Overnight shipping available.
Specs
Package includes:

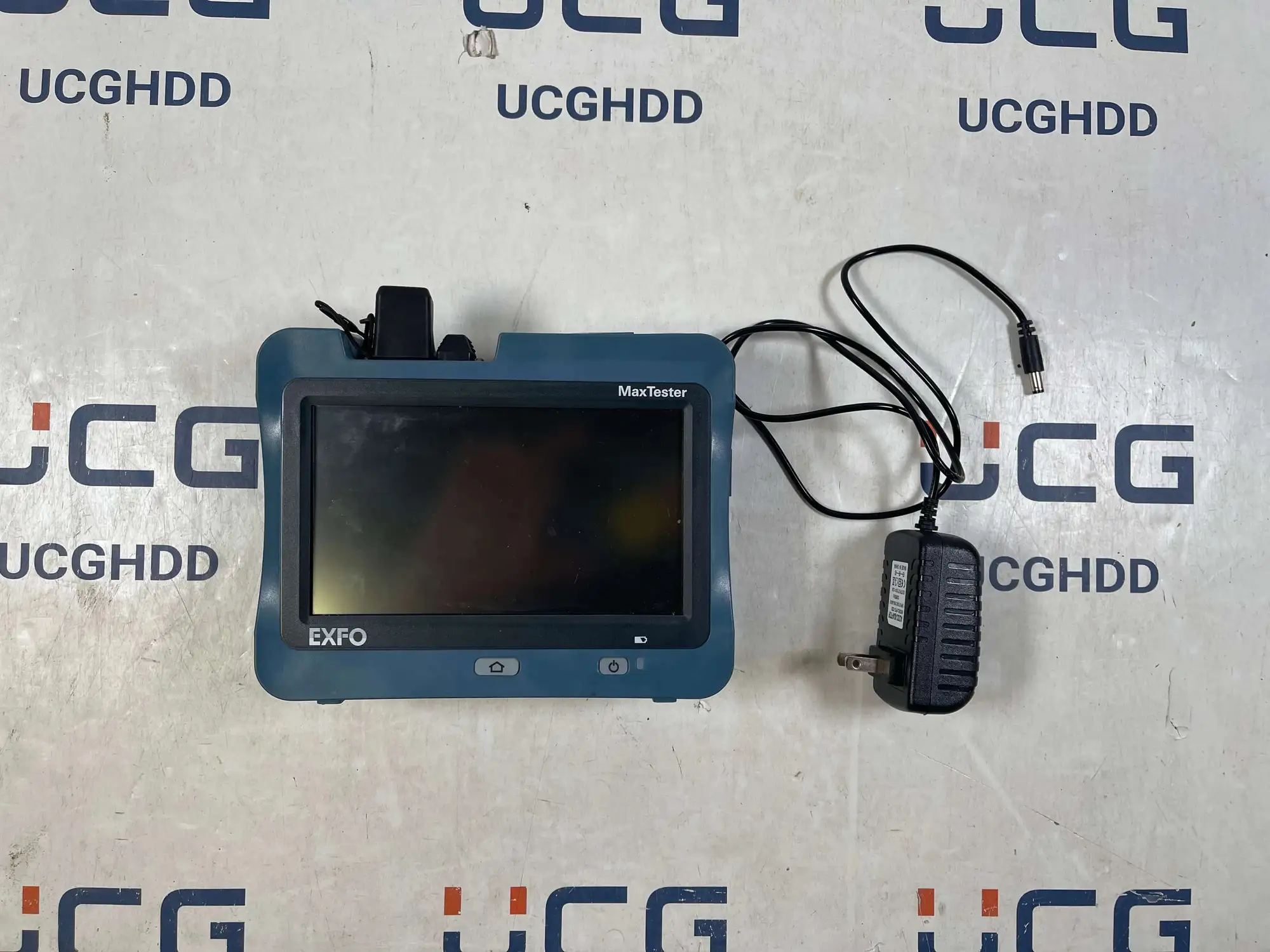

Used EXFO MAX-715B-M1-EA-RF SingleMode Fiber IOLM
Used AC Adapter/Charger
Specifications:
Display: 7-in (178-mm) outdoor-enhanced touchscreen,
800 x 480 TFT
Interfaces: Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s
Storage: 2 GB internal memory
(20 000 OTDR traces, typical)
Batteries: Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore)
TR-NWT-001138
Power supply: Power supply AC/DC adapter, input 100-240 VAC,
50-60 Hz, 9-16 V DCIN
15 Watts minimum
Wavelength (nm): 1310 ± 30/1550 ± 30
SM live port built-in filter: 1625 nm: highpass >1595 nm isolation
>50 dB from 1270 nm to 1585 nm
Dynamic range (dB): 30
Event dead zone (m): 1
Attenuation dead zone (m): 4
PON dead zone (m): 35
Distance range (km): 0.1 to 160
Pulse width (ns): 5 to 20 000
Linearity (dB/dB): ±0.05
Loss threshold (dB): 0.01
Loss resolution (dB): 0.001
Sampling resolution (m): 0.04 to 5
Sampling points: Up to 256 000
Distance uncertainty (m): ±(0.75 + 0.0025 % x distance +
sampling resolution)
Measurement time: User-defined (maximum: 60 minutes)
Reflectance accuracy (dB): ±2
Typical real-time refresh (Hz): 3
