Used DigiTrak Eclipse Locating Package. Stock number: MS107
Overview
• ET 12 – 12 kHz 15” Standard Range Transmitter• EDF – 12 & 1.5 kHz 15” Standard Range Transmitter• EXL 12 – 12 kHz 19” Extended Long-Range Transmitter
DigiTrak Eclipse Receiver Specifications
Receiving frequencies
1.5 kHz / 12 kHz
Power source
DCI battery pack
Battery life
4 hr (approx.)
Battery charger
12 VDC
Depth display
Real-time
Functions
Menu driven
Controls
Trigger switch, toggle switch
Graphic display
LCD
Audio output
Beeper
Telemetry range
1800 ft (550 m)
Operating temperature range
-4 to 140° F (-20 to 60° C)
Accuracy
±5% absolute
Dimensions
12.2 x 7.2 x 14.5 in. (30.99 x 18.29 x 36.83 cm)
Width
7.2 in. (18.29 cm)
Length
14.5 in. (36.83 cm)
Weight (with battery)
9.4 lb (4.3 kg)
Transmitter sleep mode
After 15 min
DigiTrak Eclipse Remote Display Specifications
Frequency
1.5 kHz / 12 kHz
Power source
DigiTrak NiCad battery pack
Battery life
8–12 hr (approx.)
Battery charger
12/28 V DC or 110/220 V AC
Controls
Pressure-sensitive touch buttons
Graphic display
LCD
Telemetry range
1800 ft (550 m)
Telemetry channels
4 channels
Operating temperature range
-4°F to 140°F (-20°C to 60°C)
Height
7.8 in. (198 mm)
Width
9.2 in. (234 mm)
Length
11.5 in. (292 mm)
Weight (w/ battery)
6.2 lb (2.8 kg)
In stock and job-site ready. Package components available for individual sale.
Stock number: Z551
Specs

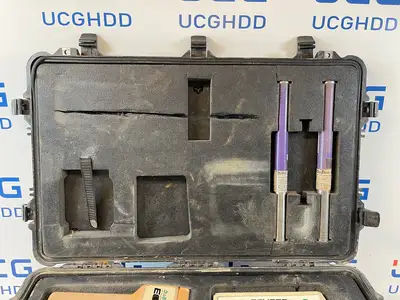

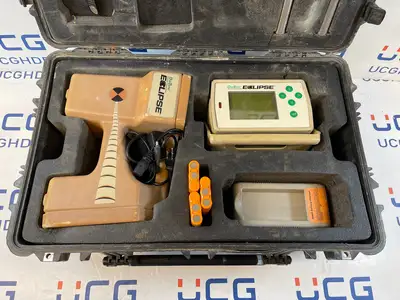

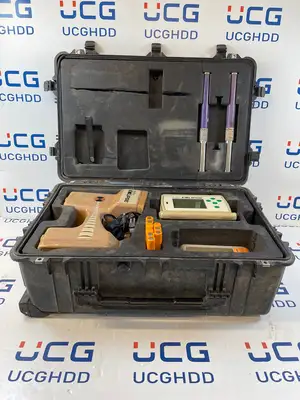

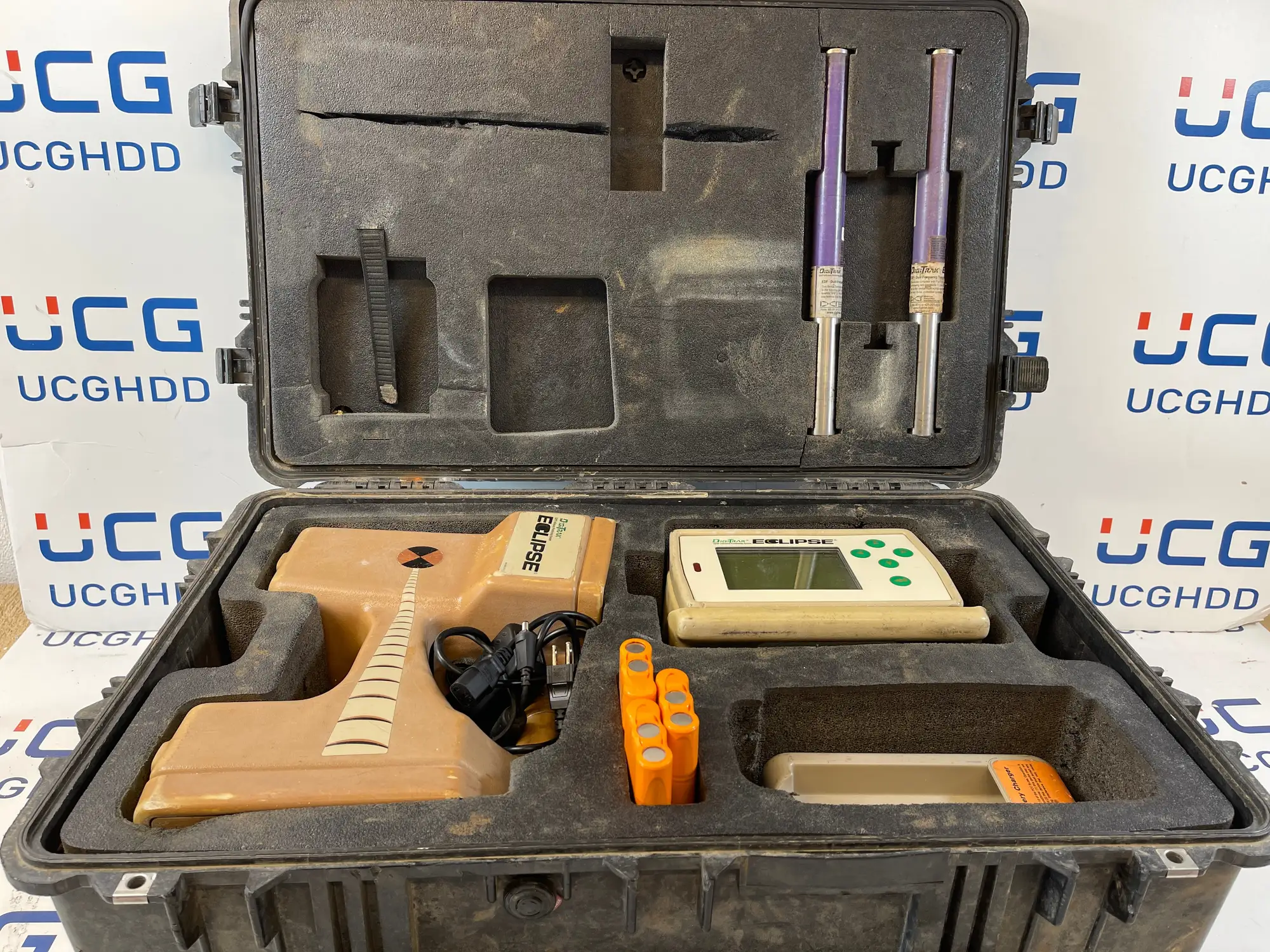

Package Includes:
Used DigiTrak Eclipse Locator (Receiver)
Used DigiTrak Eclipse Remote Display
2 Used Lavender Transmitter EDF
3 Used NiMh Battery Packs
Used NiMh Battery Charger

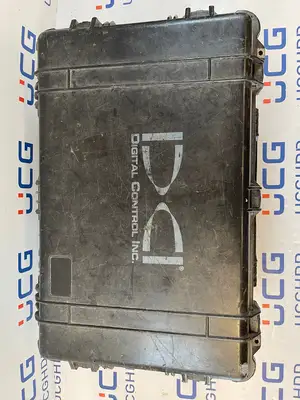

Used Hardcase
DigiTrak Eclipse Transmitter Compatibility:
Receiving frequencies: 1.5 kHz / 12 kHz
Power source: DCI battery pack
Battery life: 4 hr (approx.)
Battery charger: 12 VDC
Depth display: Real-time
Functions: Menu driven
Controls: Trigger switch, toggle switch
Graphic display: LCD
Audio output: Beeper
Telemetry range: 1800 ft (550 m)
Operating temperature range: -4 to 140° F (-20 to 60° C)
Accuracy: ±5% absolute
Dimensions: 12.2 x 7.2 x 14.5 in. (30.99 x 18.29 x 36.83 cm)
Width: 7.2 in. (18.29 cm)
Length: 14.5 in. (36.83 cm)
Weight (with battery): 9.4 lb (4.3 kg)
Transmitter sleep mode: After 15 min
Frequency: 1.5 kHz / 12 kHz
Power source: DigiTrak NiCad battery pack
Battery life: 8–12 hr (approx.)
Battery charger: 12/28 V DC or 110/220 V AC
Controls: Pressure-sensitive touch buttons
Graphic display: LCD
Telemetry range: 1800 ft (550 m)
Telemetry channels: 4 channels
Operating temperature range: -4°F to 140°F (-20°C to 60°C)
Height: 7.8 in. (198 mm)
Width: 9.2 in. (234 mm)
Length: 11.5 in. (292 mm)
Weight (w/ battery): 6.2 lb (2.8 kg)
