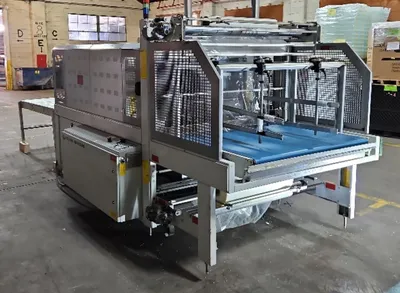

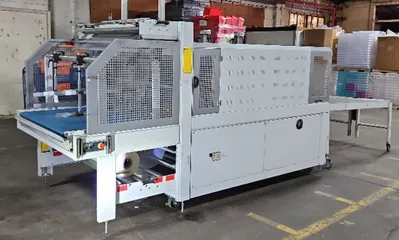

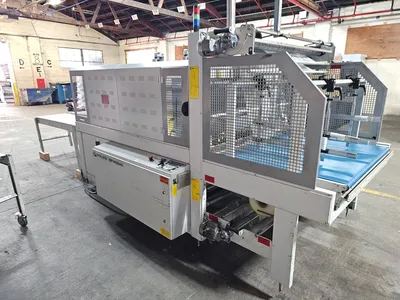

USED SIMPAC BP1402 AS
Overview
BP 1402 AS - GENERAL SPECIFICATIONS
1. Shrinkwrapper with monoblock frame design.

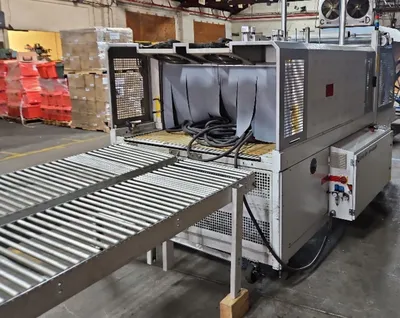

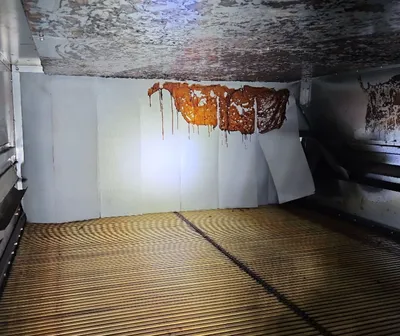

2. Double-chamber shrink tunnel

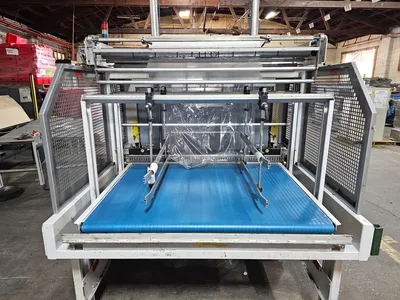

3. Infeed conveyor with adjustable variable speed controlled by Inverter.
4. Ability to operate in automatic or semi-automatic mode.
5. Ability to package products longer than 2000 mm - 78.74"

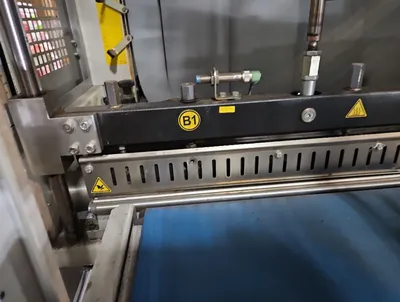

6. Pneumatic sealing bar.
7. Seal bar equipped with safety device.
8. Pneumatic film cut by cold blade
9. Top and Bottom film drives controlled by Inverter.

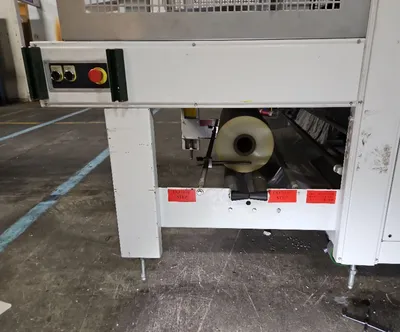

10. Rollers for the film load on the lower and upper reel support.
11. Tunnel conveyor with fibreglass bars (SMI patent in use).
12. Tunnel belt with adjustable speed controlled by Inverter
13. Tunnel air flow controls are adjustable by deflectors placed both at the infeed and outfeed of the tunnel.
14. Tunnel cooling system.

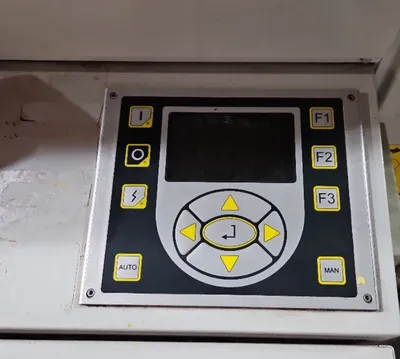

15. Control panel with graphic LCD 4,3”
16. Flexmode® control system equipped with 32 bit microprocessor for the control and management of the machine
17. Inverter with integrated encoder reading
18. 20 different memories for product configuration.
19. Press rod to stop products: included
Cooling fan: included
Compacting rollers: OPTIONAL
Infeed conveyor group for short/light packs: OPTIONAL
Out-flow photocell: OPTIONAL
Reel end photocells: OPTIONAL
Outlet obstruction photocell: OPTIONAL
Manual evacuation device: OPTIONAL
Pneumatic evacuation device: OPTIONAL
External reel holder group for easy load from bottom: OPTIONAL
Exit roller group L. 1000 mm - 39.37": OPTIONAL
Exit roller group L. 2000 mm - 78.74": OPTIONAL
BP1402AS - TECHNICAL SPECIFICATIONS
1. Power supply: 220-240V 3 PH-PE, 50/60 Hz.
2. Max. absorbed power: 71 amps
3. Compressed air pressure: 6 bar - 87 psi
4. Required air: 10 cfm
5. Sealing bar width: 53"
6. Production: up to 20 ppm.
7. Maximum film roll size: Ø13.78" x 53 wide"
8. Machine dimensions: 136" x 74" x 92"-98"H
9. Working surface height: 34"-40"
RECOMMENDED WORKING TEMPERATURE: FROM +10 C° TO +35 C°, PRODUCT >+10 C° -FROM +50 °F TO +95
°F, PRODUCT >+50 °F
ENVIRONMENTAL RELATIVE HUMIDITY: MAX 70%

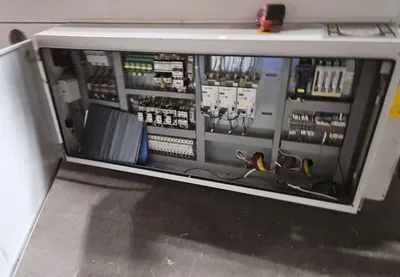

ßP 1402AS – COMPONENTS
1. Conveyors: HABASIT
2. Motors: BONFIGLIOLI
3. Reducers: BONFIGLIOLI
4. Pneumatics: FESTO
5. Electronics: SMITEC
6. Inverter: SMITEC
7. Remote-control switchesi: LOVATO
8. Thermal relay: LOVATO
9. Terminals: PHOENIX
10. Fuses holder: LOVATO
11. ON/OFF switch: LOVATO
12. Push buttons Ø 22: LOVATO
13. Photocells: SICK
14. Inductive sensors: SICK
15. Connectors / Cables: PHOENIX
