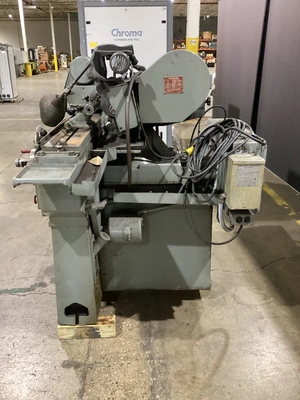

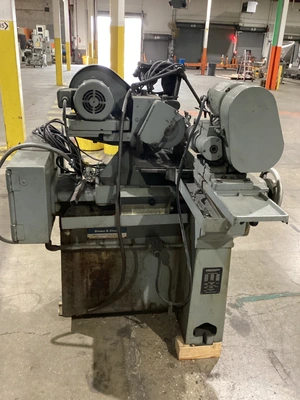

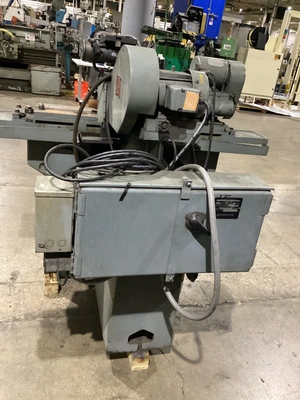

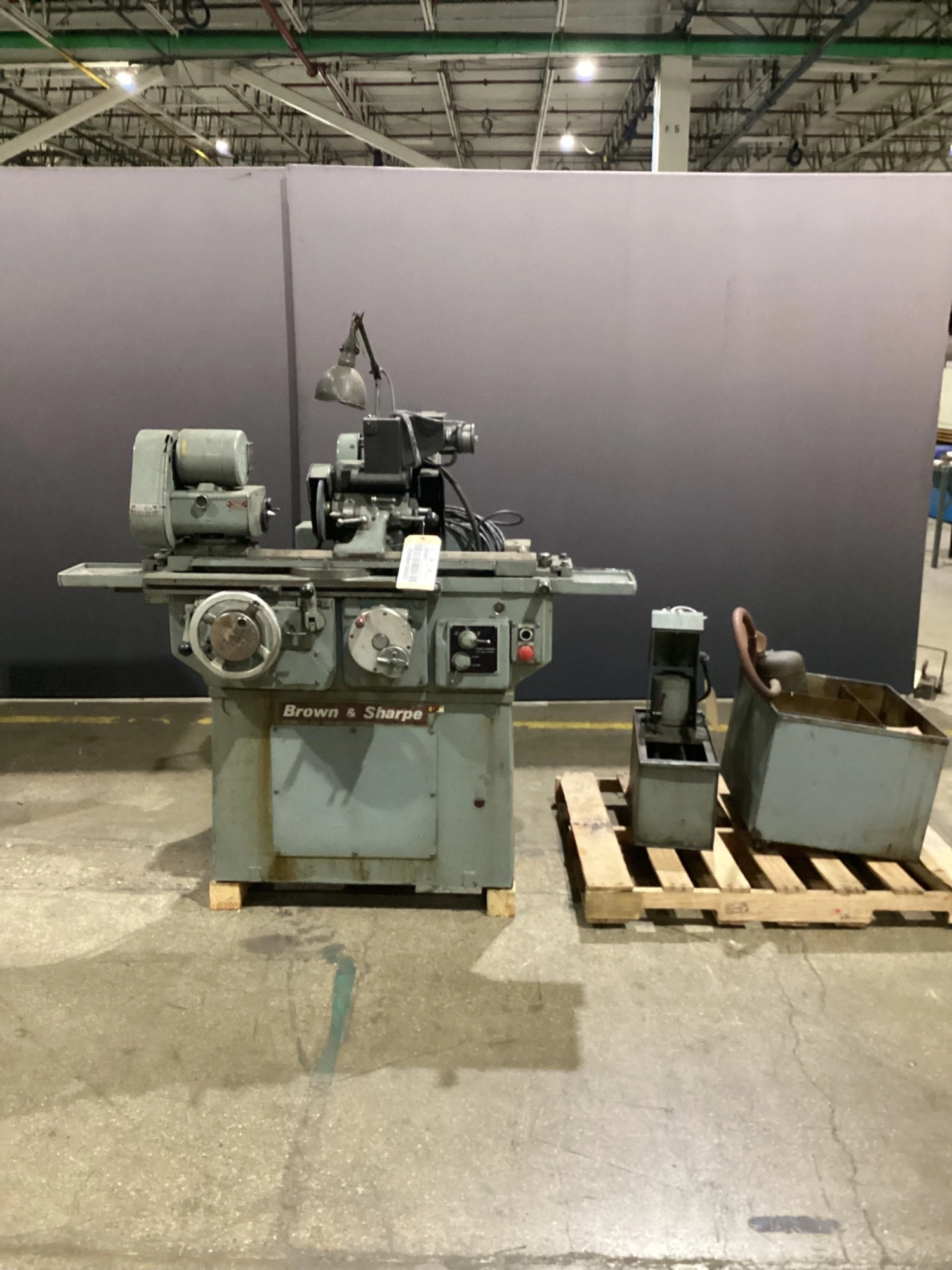

USED BROWN & SHARPE Surface Grinder
Overview
This listing is for a USED Brown & Sharpe surface grinder. The machine provides precision grinding and finishing capability for flat workpieces in toolroom, maintenance, and production environments. The configuration includes a magnetic chuck, hydraulic table drive system, coolant equipment, wheel-head assembly, and integrated electrical controls for precision surface finishing applications.
Specs
Manufacturer: Brown & Sharpe
Condition: USED
Machine Type: Surface Grinder
Grinding Configuration: Horizontal Spindle
Magnetic Chuck: Installed
Hydraulic Table Drive: Installed
Variable Table Speed: Installed

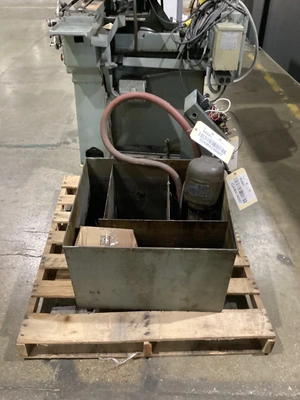

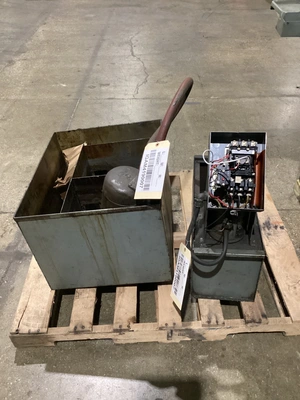

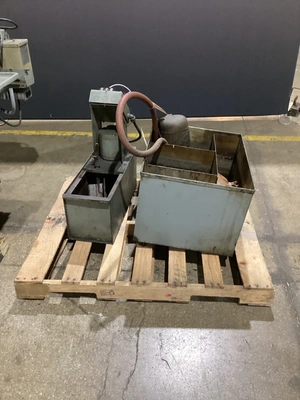

Coolant Tank: Included
Coolant Pump: Installed

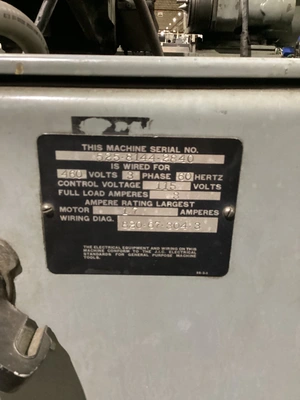

Machine Serial Number: 525-8144-2840
Supply Voltage: 460 VAC
Phase: 3
Frequency: 60 Hz

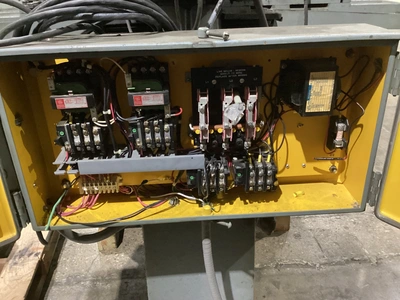

Control Voltage: 115 VAC
Full Load Current: 3 A
Largest Motor Current: 1.7 A
Wiring Diagram: 820-67-304-3

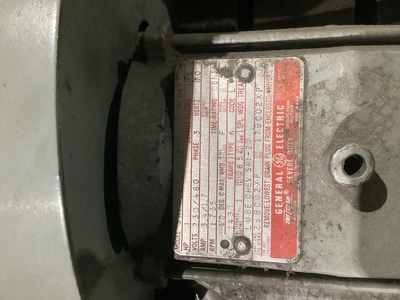

Wheel Head Motor:
Manufacturer: General Electric
Horsepower: 1 HP
Voltage: 230/460 VAC
Current: 3.4/1.7 A
Motor Speed: 1735 RPM
Phase: 3
Frequency: 60 Hz
Frame Size: 143T
Insulation Class: F
Duty Rating: Continuous
NEMA Design: B
Service Factor: 1.65

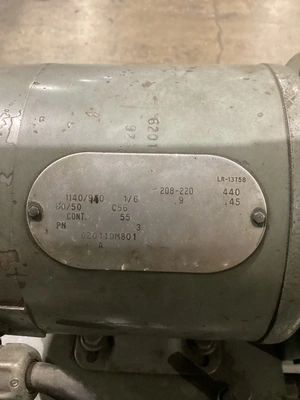

Coolant Pump Motor:
Manufacturer: Doerr Electric Corporation
Model Number: 62011DM801
Horsepower: 1/6 HP
Voltage: 208-220/440 VAC
Current: 0.9/0.45 A
Motor Speed: 1140/950 RPM
Phase: 3
Control Transformer:
Manufacturer: Acme Electric Corporation
Catalog Number: T-1-53110
Transformer Rating: 1.0 kVA
Primary Voltage: 600 VAC
Secondary Voltage: 120/240 VAC
