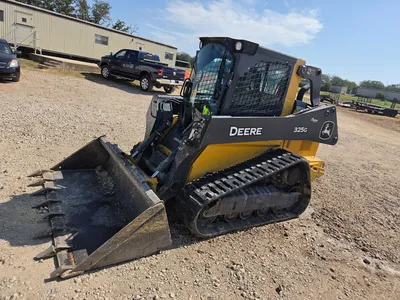

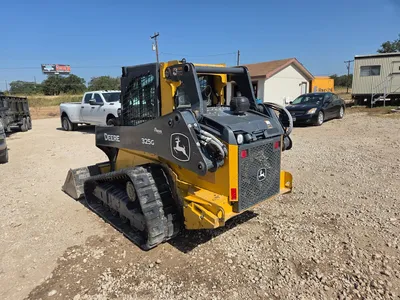

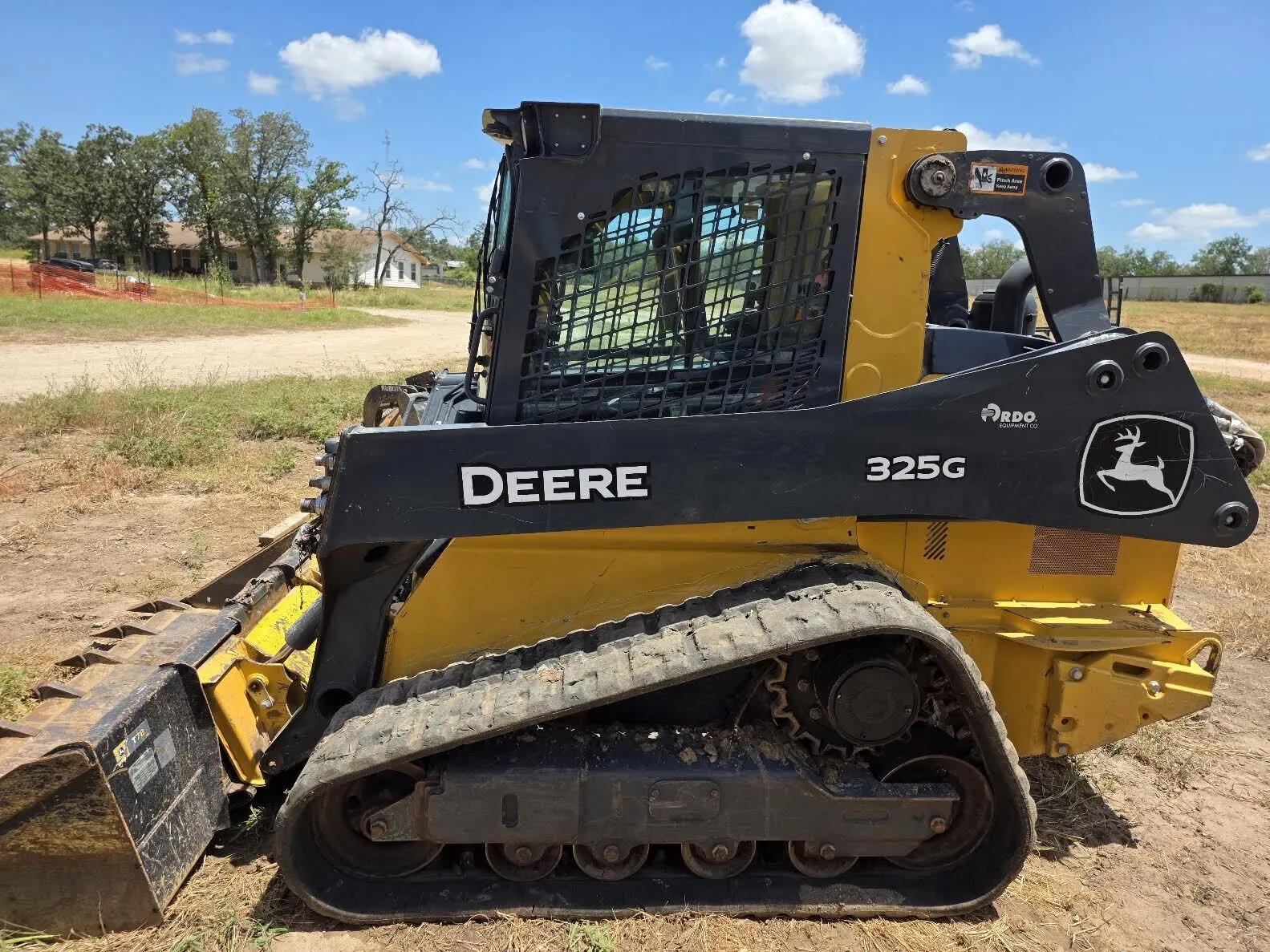

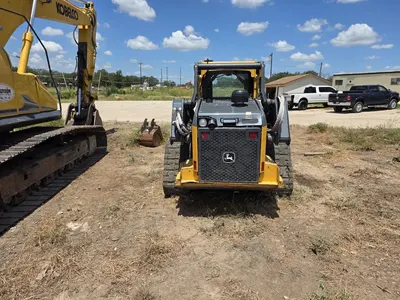

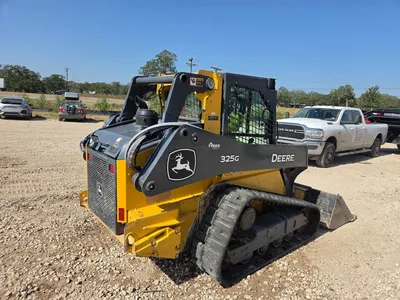

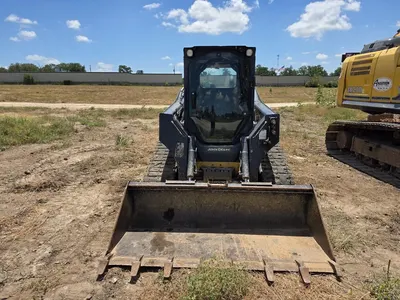

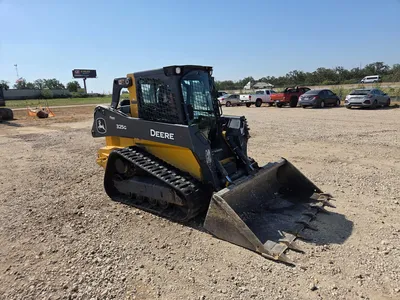

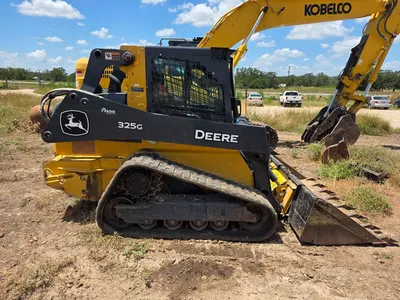

USED 2023 JOHN DEERE 325G

Manufacturer / Model Yanmar 4TNV98CT
Cylinders 4, turbocharged
Displacement 3.3 L (203 cu. in.)
Gross Rated Power (ISO 14396) 54.8 kW / 74 hp @ 2,500 rpm
Net Power (SAE J1349 / ISO 9249) 52.5 kW / 70 hp @ 2,500 rpm
Peak Torque 280 Nm (207 lb.-ft.) @ 1,800 rpm
Torque Rise 34% @ 1,800 rpm
Emissions EPA Final Tier 4 / EU Stage IV
Air Cleaner Dry dual element
Cooling Fan Variable-speed hydraulic drive std. / reversing fan optional

Performance
Rated Operating Capacity (35%) 1,176 kg / 2,590 lb.
Tipping Load Capacity (50%) 1,633 kg / 3,600 lb.
Operating Weight — 12.6 in. track 4,313 kg / 9,500 lb.
Operating Weight — 15.8 in. track 4,381 kg / 9,650 lb.
Tractive Effort 3,859 kgf / 8,500 lbf

Powertrain
Pump Axial-piston hydrostatic
Controls Electrohydraulic
Travel Speed — Low 8.4 km/h (5.2 mph)
Travel Speed — High (2-speed) 13.2 km/h (8.2 mph)
Brake Integral, automatic, spring-applied, hydraulically released wet-disc
Steering Differential steering

Hydraulics
Pump Flow — Standard 78 L/m (21 gpm)
Pump Flow — High Flow option 120 L/m (32 gpm)
System Pressure at Couplers 23,787 kPa (3,450 psi)
Hydraulic HP — Standard 31.1 kW (41.7 hp)
Hydraulic HP — High Flow 47.4 kW (63.6 hp)
Cylinders Heat-treated, chrome-plated polished rods; hardened steel pivot pins w/ replaceable bushings

Undercarriage
Tracks New-Generation smooth-ride long-life rubber w/ steel inserts
Track Width — Standard 320 mm (12.6 in.)
Track Width — Optional 400 mm (15.8 in.)
Track Rollers (per side) 4 triple-flange smooth-ride all-steel
Track Idlers (per side) 2 double-flange smooth-ride all-steel
Bearings / Seals Heavy-duty journal bearings, metal face seals
Ground Pressure — 12.6 in. 39.3 kPa (5.7 psi)
Ground Pressure — 15.8 in. 32.4 kPa (4.7 psi)

Dimensions
Length w/o Bucket 2.85 m (9 ft. 4 in.)
Length w/ Foundry Bucket 3.46 m (11 ft. 4 in.)
Width w/o Bucket — 12.6 in. track 1.82 m (6 ft. 0 in.)
Width w/o Bucket — 15.8 in. track 1.90 m (6 ft. 3 in.)
Height to Top of ROPS 2.06 m (6 ft. 9 in.)
Height to Hinge Pin 3.20 m (10 ft. 6 in.)
Dump Height w/ Foundry Bucket 2.59 m (8 ft. 6 in.)
Dump Reach — Foundry Bucket 0.75 m (29.7 in.)
Dump Reach — Construction Bucket 0.94 m (3 ft. 1 in.) w/ edge
Ground Clearance 0.24 m (9.3 in.)
Angle of Departure 30.5 deg.
Front Turn Radius w/ Foundry Bucket 2.03 m (6 ft. 8 in.)
Dump Angle (full lift height) 41 deg.
Bucket Rollback (ground level) 34 deg.

Electrical & Service
Voltage 12 volt
Battery 750 CCA standard / 925 CCA optional
Alternator 75 amp
Lights Halogen, 2 front / 1 rear
Fuel Tank 79 L (21 gal.)
Structure ROPS (ISO 3471) / FOPS (ISO 3449), quick-pivot standard
