Used

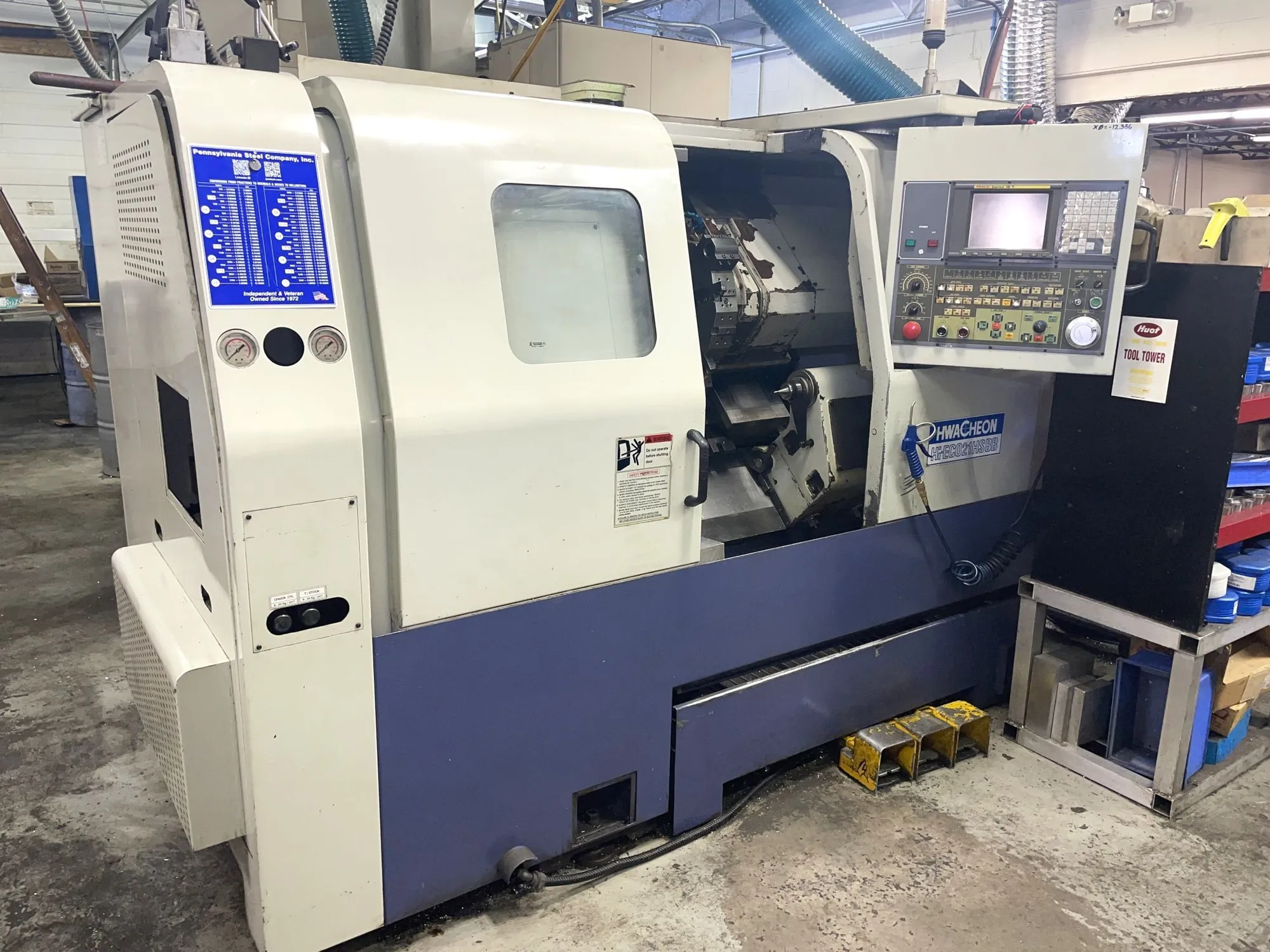

USED 2000 HWACHEON HI-ECO 21 HSBB

Maryland, United States
123Listings|116Followers
Overview
CNC Lathes

HWACHEON HI-ECO 21 HSBB lathe, 2000 model. Features include a 23.6" swing, 15.8" machining length, 8" chuck, 2.5" bar capacity, and 4000 RPM max. Power of 20.0. Includes tailstock. Ideal for CNC operations. Used and well-maintained.

Specs
MAX SWING
23.6"
599.44 mm
MAX CUTTING DIAMETER
11"
279.4 mm
MAX CUTTING LENGTH
15.7"
398.78 mm
CHUCK SIZE
8"
203.2 mm
BAR CAPACITY
2.6"
66.04 mm
SPINDLE BORE
3"
76.2 mm
SPINDLE NOSE
A2-6
A2-6
SPINDLE MOTOR
20 hp
14.9 kW
SPINDLE SPEED
4,000 RPM
4,000 RPM
RAPID TRAVERSE RATE X-AXIS
1,181 in/min.
2,999.7 cm/min.
RAPID TRAVERSE RATE Z-AXIS
1,181 in/min.
2,999.7 cm/min.
TURRET POSITIONS
12
12
Equipped With

FANUC 18-T CNC CONTROLS
BIG BORE
12-POSITION TURRET
ROYAL COLLET CHUCK
TAIL STOCK
CHIP CONVEYOR
BOX WAY CONSTRUCTION
ASSORTED TOOL HOLDERS AND MANUALS
RS-232C
WIRED FOR 3 PHASE 60 CYCLE, 220 VOLTS

*POWER ON 19182 HOURS
*CUTTING TIME 3213 HOURS
