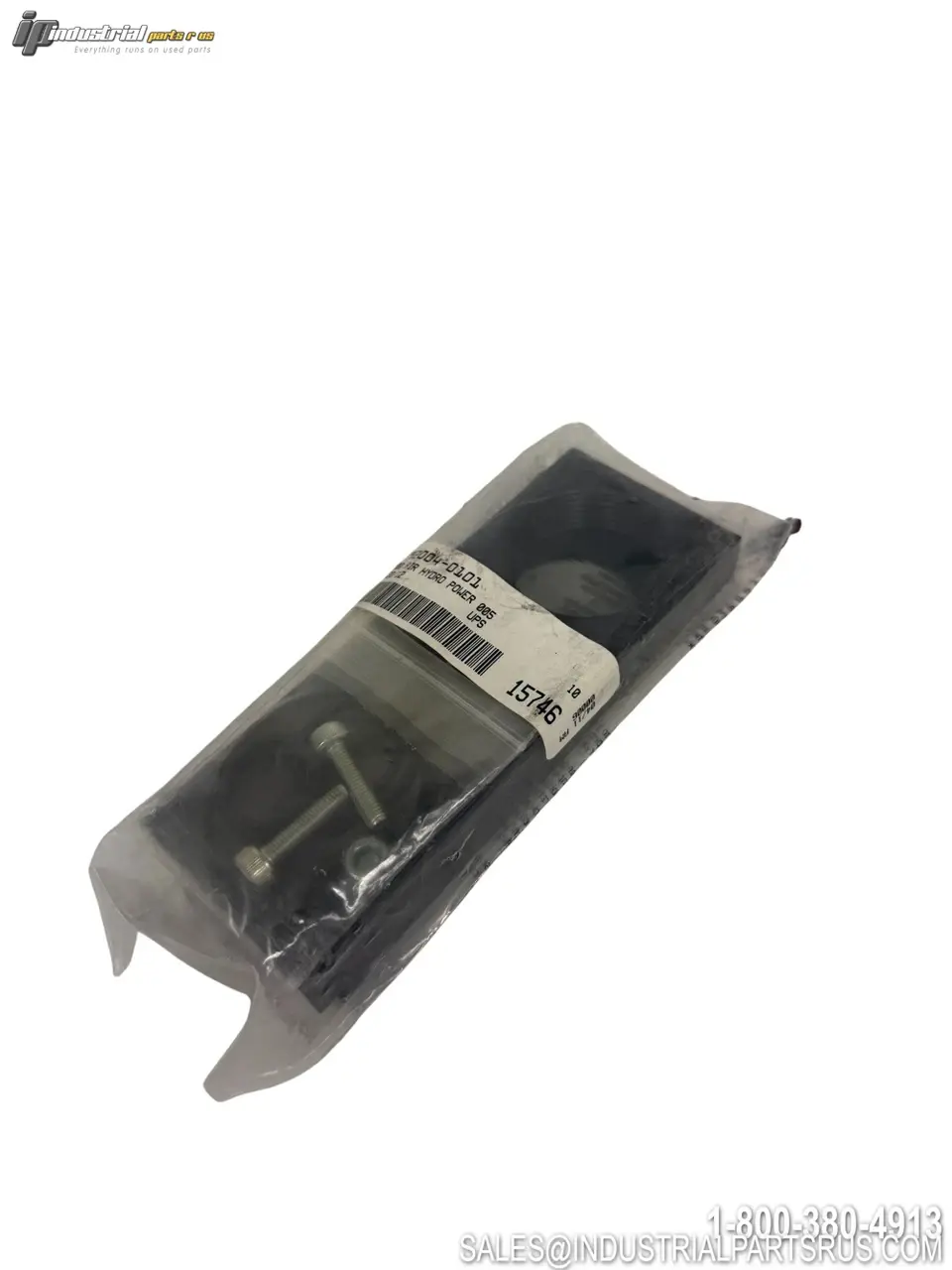

NEW MAC VALVES M-92004-0101

The MAC Valves M-92004-0101 is a Manifold End Plate Kit designed for use with the MAC Valves 92 Series directional control valve manifold system. It provides the inlet and exhaust termination for a 92B Series manifold stack, featuring 3/8" NPTF threaded female ports and internal pilot configuration. The kit includes O-rings for proper sealing and can be installed on either the left-hand or right-hand side of the manifold assembly.
Specification
Value
Brand
MAC Valves
Model / Part Number
M-92004-0101
Product Type
Manifold End Plate Kit
Compatible Series
MAC Valves 92 Series (92B)
Number of Ports
4
Port Size (Inlet & Exhaust)
3/8" NPTF Threaded Female
Thread Type
NPTF (National Pipe Taper Fuel / Dryseal)
Pilot Type
Internal Pilot
Mounting Side
Left-Hand (LH) or Right-Hand (RH)
Includes O-Rings
Yes
Compatible Fluid Media
Compressed Air or Inert Gases
Operating Pressure Range (Internal Pilot)
20 to 120 PSI
Safe Operating Temperature Range
0°F to 120°F (-18°C to 50°C)
Lubrication Required
Not Required
Valve Function
4-Way Directional Control (92 Series Spool Valve)
Alternate Part Number
M920040101 / M-92004-01-01
Weight
1.20 lbs
Subcategory
Valve Manifold Kit / Valve Repair Kit
We warranty all items for 30 days from date of purchase.
