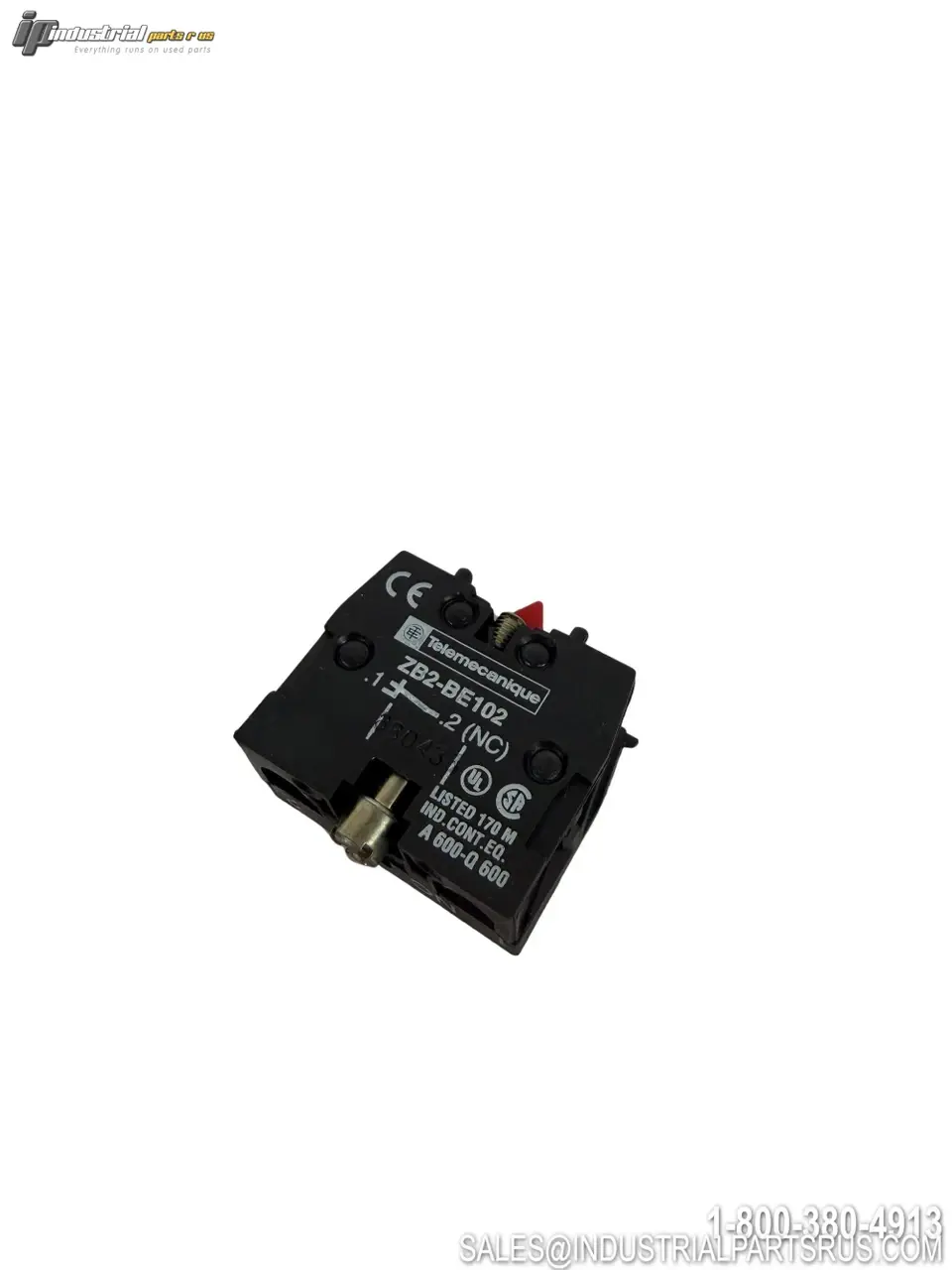

NEW TELEMECANIQUE ZB2-BE102

The Telemecanique ZB2-BE102 is a 22mm add-on contact block belonging to the Harmony XB2/XB4 series, designed to mount on the front of compatible push button operators, selector switches, and mushroom-head operators. It features a single normally closed (NC) contact with spring return action, silver alloy contacts, and screw clamp terminals for secure wiring in industrial control panels. It is rated 10A at 600VAC and conforms to EN/IEC 60947-5-1, UL 508, and CSA C22.2 No.14 standards, making it suitable for a broad range of North American and international applications.
Specification
Value
Brand
Telemecanique (Schneider Electric)
Model / Part Number
ZB2-BE102
Product Type
Contact Block (Add-On)
Series / Range
Harmony XB2 / XB4 / XB5
Mounting Size
22mm
Contact Configuration
1NC (Normally Closed)
Contact Action
Spring Return (Momentary)
Number of Poles
1
Current Rating (Ith)
10A
Voltage Rating (Ui)
600V AC
Impulse Withstand Voltage (Uimp)
6 kV
AC15 Rating
3A @ 240V AC
Switching Category
AC15 / DC13
Contact Material
Silver Alloy
Terminal / Connection Type
Screw Clamp
Mounting Type
Front Mounting
Operating Temperature Range
-25°C to +70°C
IP Rating (Mounted)
IP65 (flush/non-illuminated); IP66 (mushroom/booted)
NEMA Enclosure Ratings
Type 1, 2, 3, 4, 4X, 12, 13
Mechanical Life
3,000,000 operations (standard push button)
Standards / Certifications
EN/IEC 60947-5-1, EN/IEC 60204-32, UL 508 (File E164353), CSA C22.2 No.14 (File LR44087), CE
Compatible Operator Sizes
22mm XB4, XB5 Harmony Series Operators
Alternate Part Number
ZB2BE102
We warranty all items for 30 days from date of purchase.
