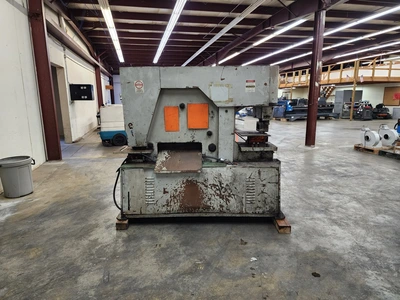

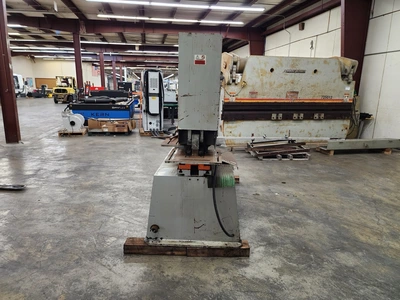

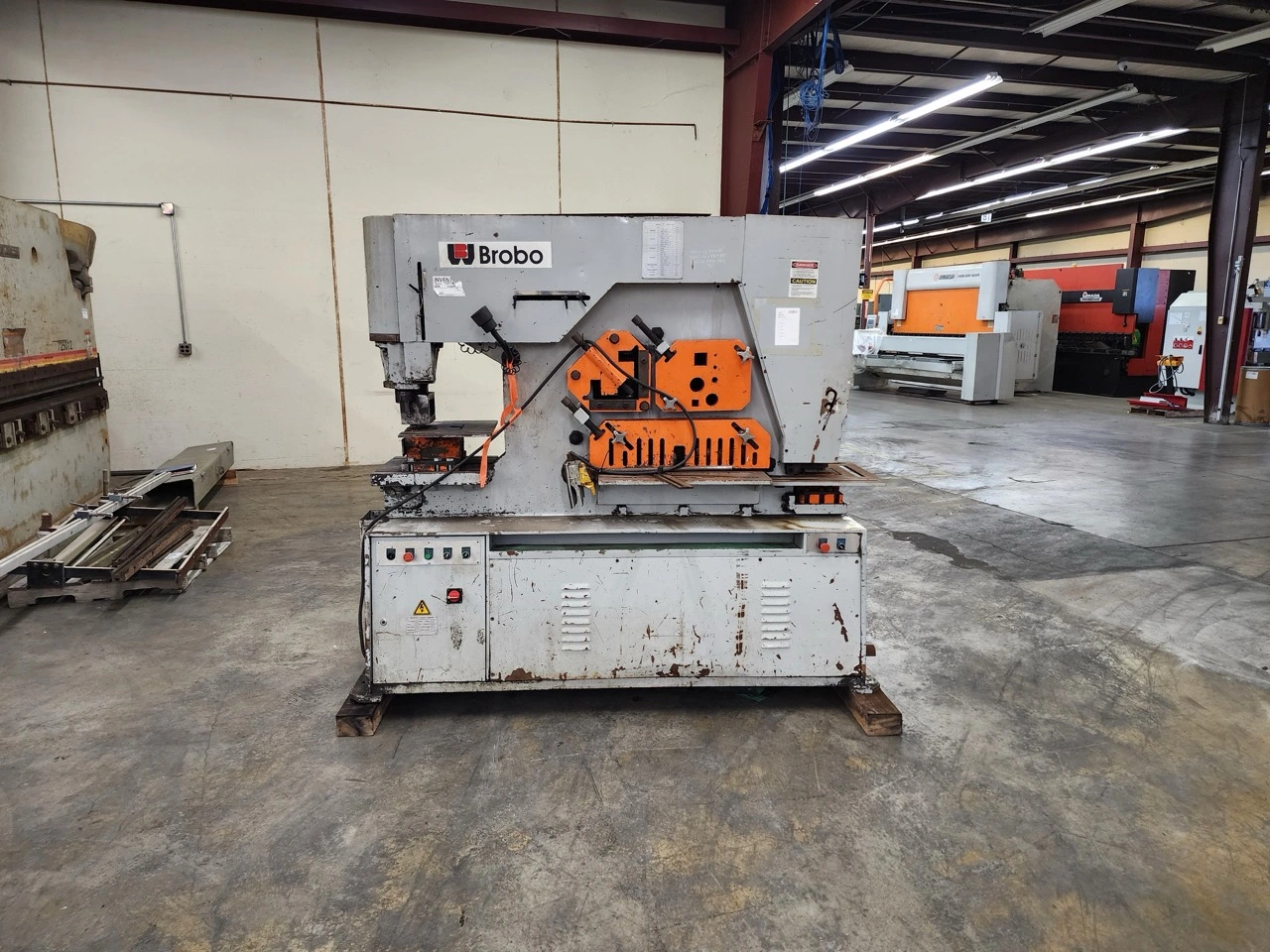

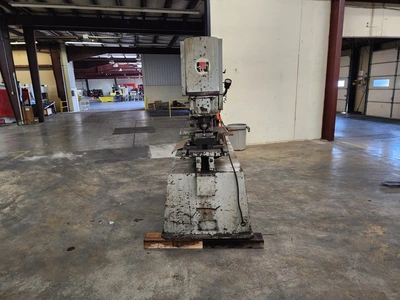

USED 1900 BROBO Q35Y-25

Capacity: 120 Ton

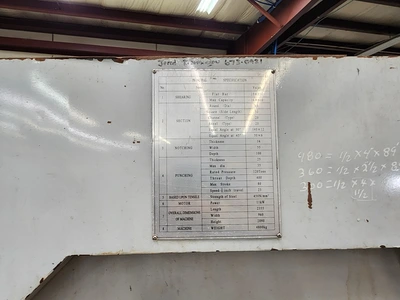

SPECIFICATIONS
SHEARING CAPACITIES
FLAT BAR: 25 X 330
MAXIMUM CAPACITY: 16 X 600
SECTION CUTTING CAPACITIES
ROUND (DIAMETER): 60
SQUARE (SIDE LENGTH): 50
CHANNEL (TYPE/HEIGHT): 20
I-STEEL (TYPE/HEIGHT): 20
EQUAL ANGLE AT 90°: 140 X 12
EQUAL ANGLE AT 45°: 50 X 6
NOTCHING CAPACITIES
THICKNESS: 14
WIDTH: 55
DEPTH: 100
PUNCHING CAPACITIES
THICKNESS: 25
MAXIMUM DIAMETER: 35
RATED PRESSURE: 120 TONS
THROAT DEPTH: 400
MAXIMUM STROKE: 80
SPEED (3/4″ TRAVEL): 23
MATERIAL RATING
BASED UPON TENSILE STRENGTH OF STEEL: 450 N/MM²
MOTOR SPECIFICATIONS
POWER: 11 KW
OVERALL MACHINE DIMENSIONS
LENGTH: 2355 MM
WIDTH: 960 MM
HEIGHT: 2090 MM
MACHINE WEIGHT
TOTAL WEIGHT: 4800 KG
