USED 2022 LAGUNA PRO 43

Capacity: ” Ø

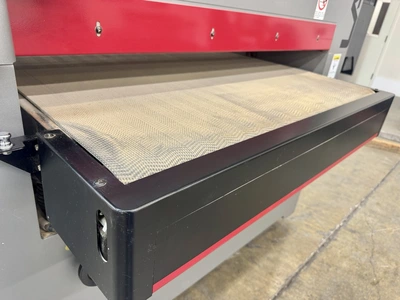

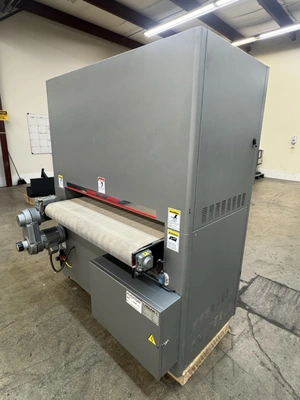

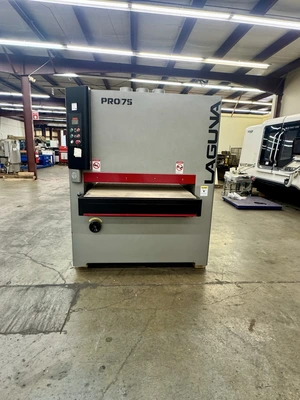

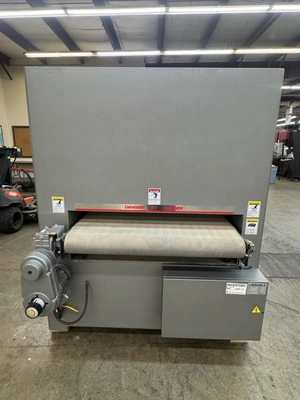

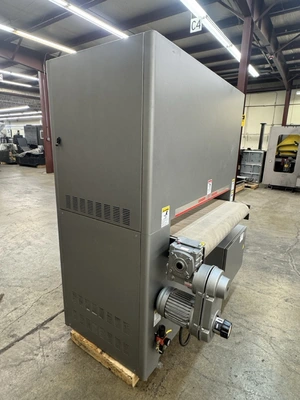

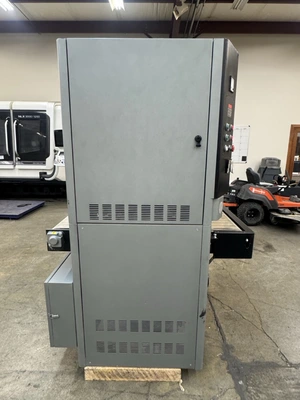

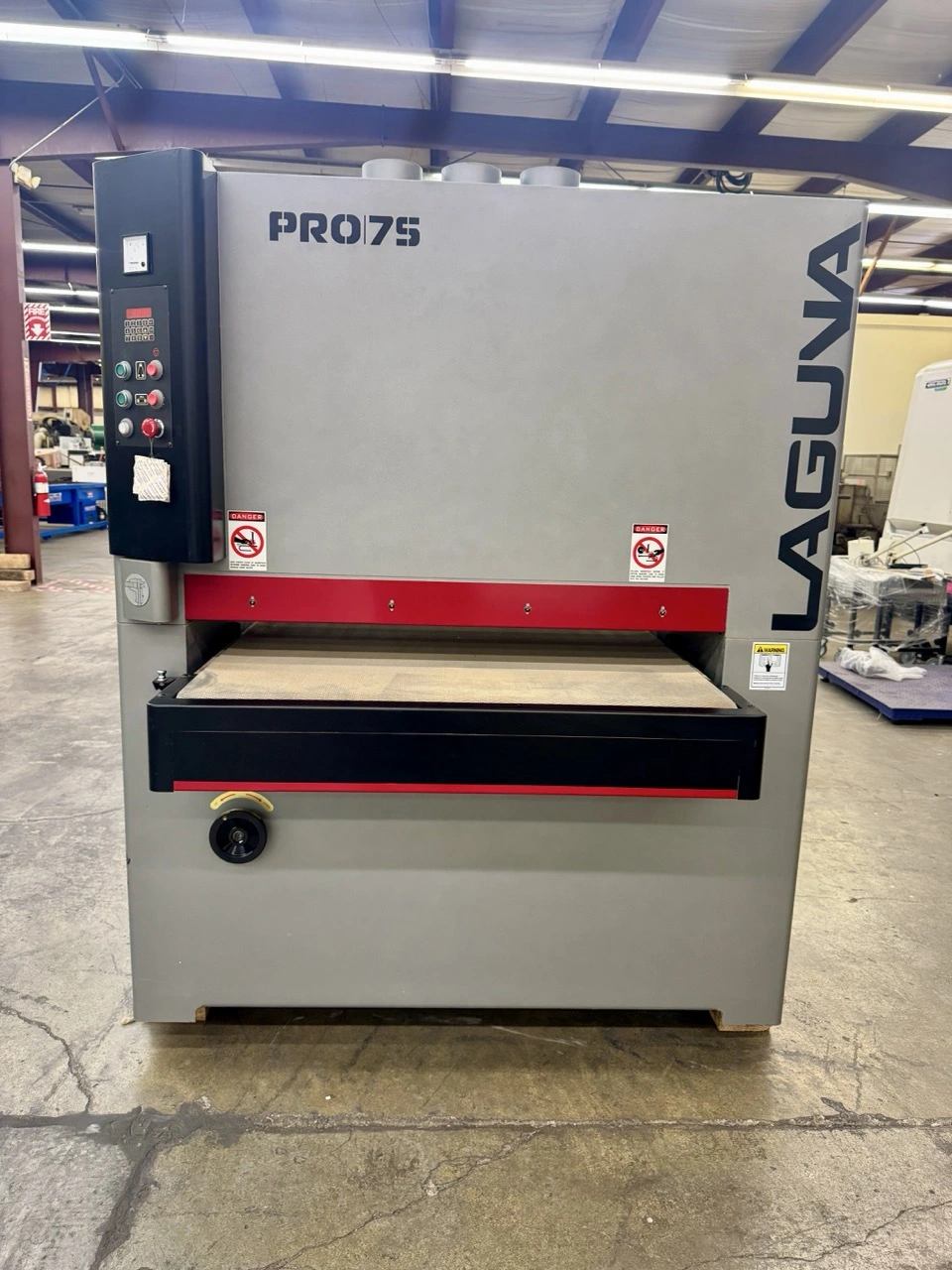

2022 Laguna Wood Pro 43″ industrial two-head wide belt sander featuring a 25 HP main motor, 43″ sanding capacity, 8″ calibration roller, 4″ combination roller/platen head, variable-speed conveyor and automatic thickness control for high-production woodworking applications.
Manufacturer Laguna Tools
Model Wood Pro 43 / 43×75 Pro
Model / SKU MSANWB43X75-2RK-25-0197
Year 2022
Machine Type Industrial Wide Belt Sander
Head Configuration 2RK – Two Head
Maximum Sanding Width 43″ / 1,100 mm
Sanding Belt Size 43″ x 75″ / 1,100 x 1,905 mm
Main Motor 25 HP
Feed Motor 2 HP
Table Lift Motor 0.25 HP
Electrical 220V / 3 Phase / 60 Hz
1st Sanding Head 8″ diameter roller
2nd Sanding Head 4″ roller + wide platen
Sanding Drum Length 43″
Sanding Drum Speed 1,725 RPM
Maximum Sanding Height 5.9″ / 150 mm
Minimum Sanding Height 1/4″ / 6.4 mm
Conveyor Speed 12–60 FPM variable
Sanding Platen 1-3/4″ / 45 mm adjustable
Thickness Control Automatic Thickness Control

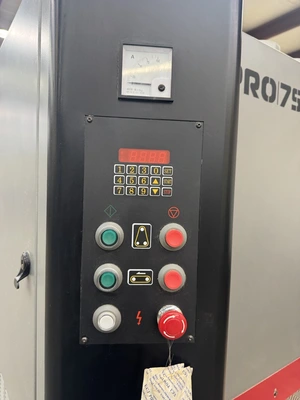

Control Programmable Logic Control / PLC
Belt Oscillation Pneumatic / Adjustable
Belt Brake Air-Operated Disc Brake
Operating Air Pressure 6 bar / ~87 PSI
Dust Ports 3
Dust Port Diameter 4″ each
Recommended Dust Collection 4,800 CFM minimum at machine
Cabinet Steel
Overall Footprint 63″ x 65″ x 87″
Conveyor Height – Lowest Setting 32″
Net Weight 3,630 lb
Shipping Weight 4,200 lb
