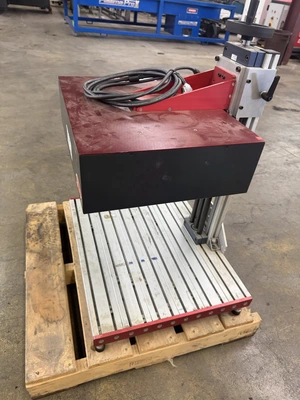

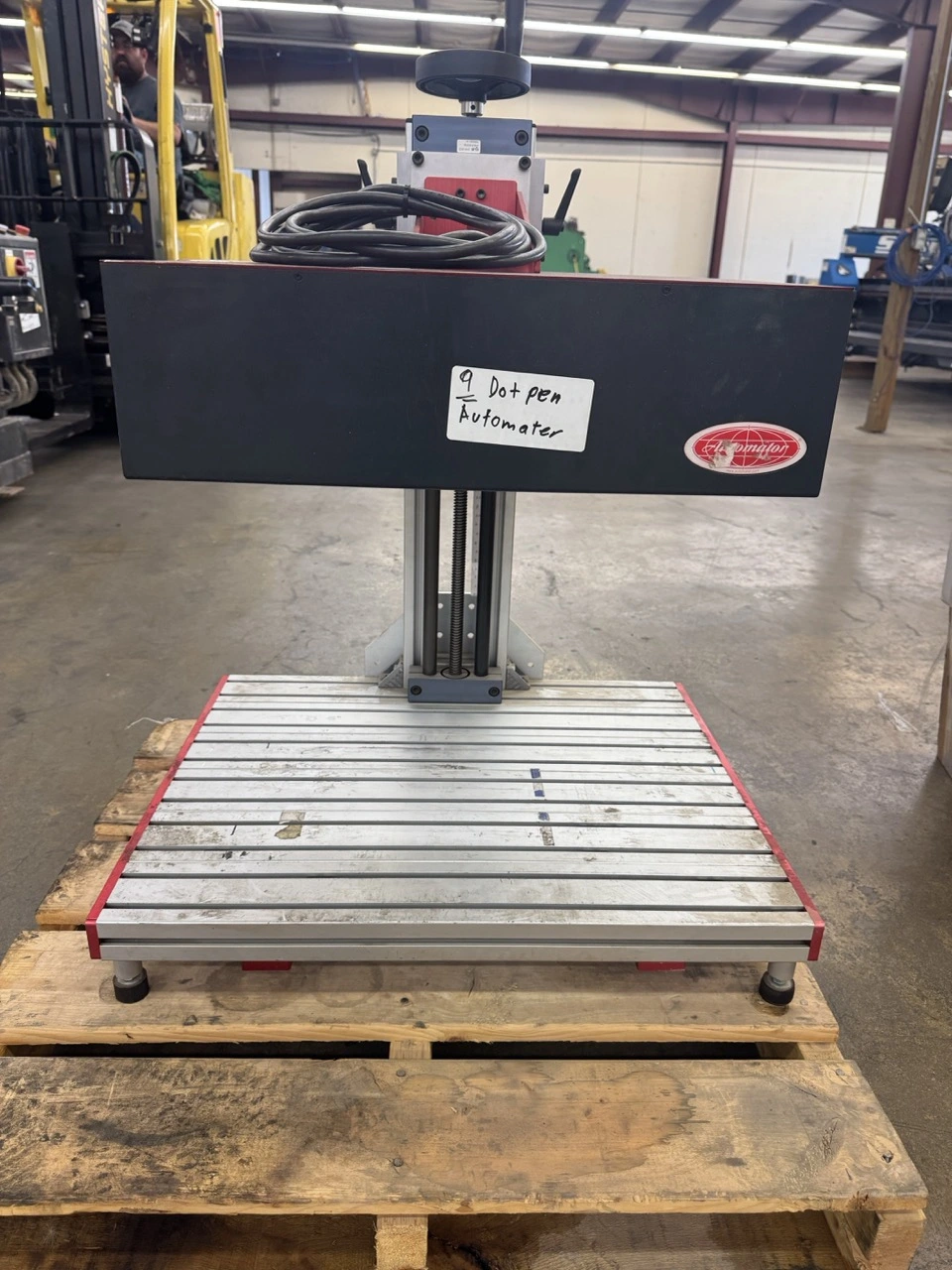

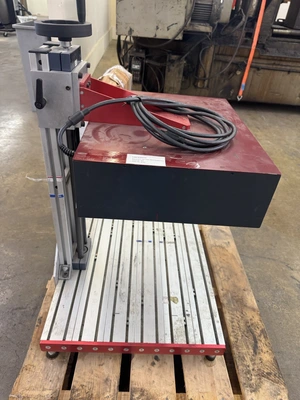

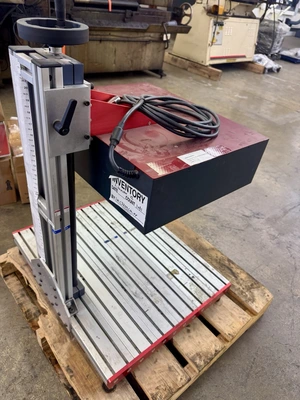

USED 2022 AUTOMATOR ADP300400

Capacity: 0 Watt

2022 Automator ADP300400 industrial dot peen marking system featuring a large 300 x 400 mm marking area, programmable permanent part identification, serial-number and 2D-code capability, and flexible pneumatic or electric marking configurations for manufacturing and traceability applications.
Manufacturer Automator Marking Systems
Model ADP300400
Year 2022
Machine Type Industrial Dot Peen / Pin Marking System
Marking Area 300 x 400 mm
Marking Area – Imperial 11.8″ x 15.7″
Marking Technology Dot Peen / Micro-Percussion
Marking Head Dimensions Approx. 514 W x 424 D x 148 H mm
Marking Head Dimensions – Imperial 20.2″ x 16.7″ x 5.8″
Marking Head Weight Approx. 21 kg / 46.3 lb
Benchtop Base Area 670 x 540 mm / 26.4″ x 21.2″
Standard Column Height Approx. 500 mm
Tip Movement Pneumatic, spring-return or electric solenoid
Marking Modes Controlled Dot / Vibratory / Electric
Controlled Dot Pins Up to 6 standard tip configurations
Vibratory Pins 2 standard configurations
Electric Pin Available
Controller Options Automator AC500 or AC250
AC500 Display 7″ color graphic touchscreen
Communications Ethernet, RS-232, RS-485, USB and I/O
Internal Memory 64 MB
AC250 Capacity Standalone operation up to 8 programs
Power Supply 90–250 VAC, 50/60 Hz
