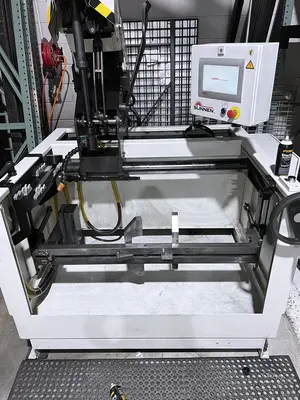

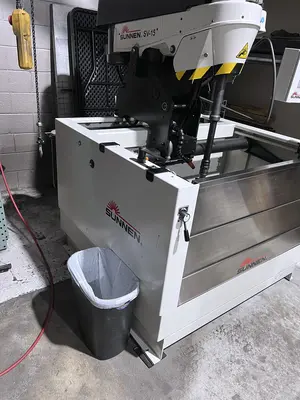

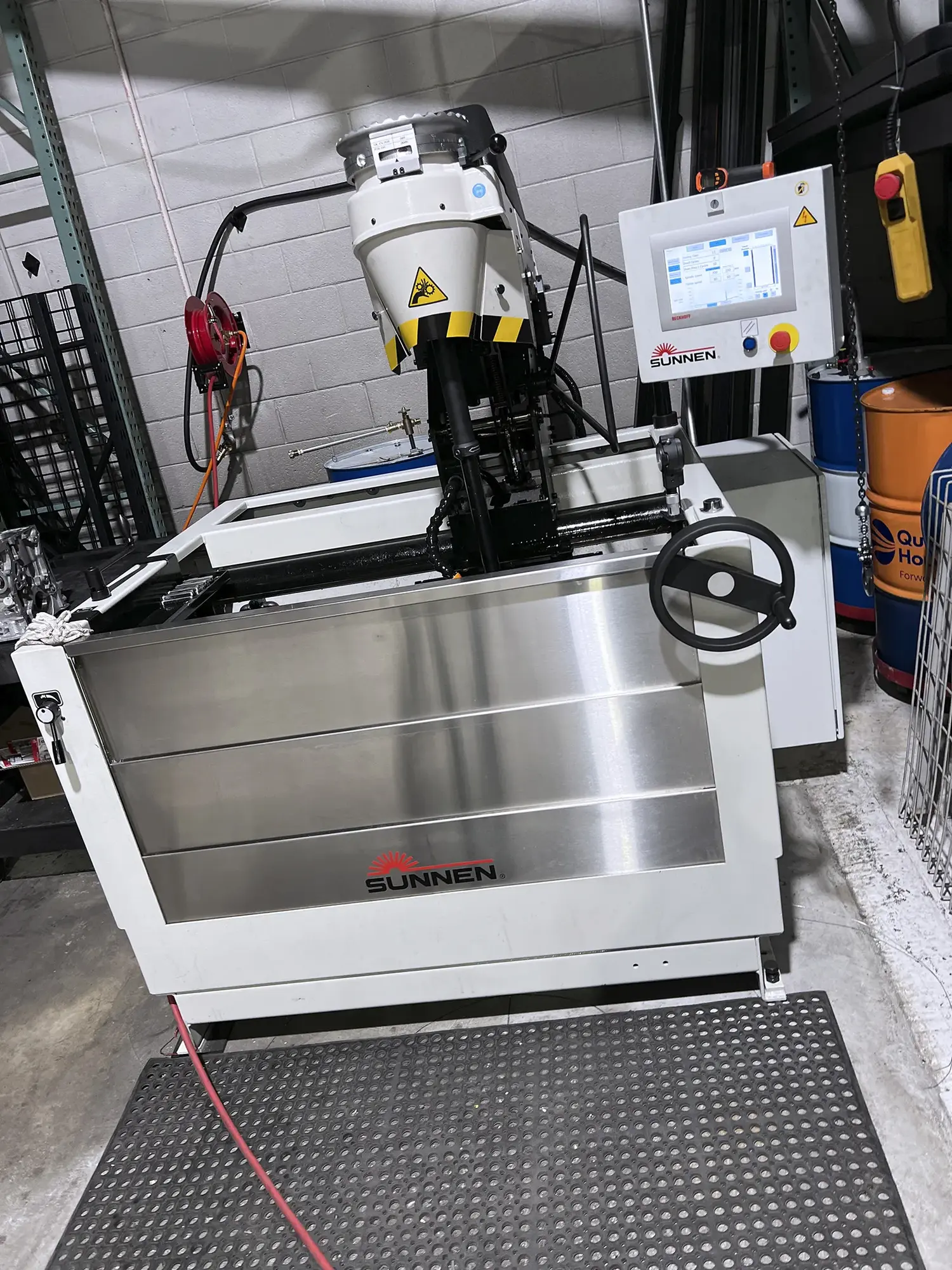

USED 2023 SUNNEN SV15CD
Overview
The Sunnen SV15CD Vertical Honing Machine (2023) is a high-precision computerized honing system designed for accurate bore sizing, roundness, and cross-hatch surface finishing. Ideal for automotive, hydraulics, aerospace, small engine, defense, and oil & gas applications requiring precise internal diameter control.
Specs
Bore Diameter Range: 0.750" – 8" (19–203 mm),
Cylinder Length - (Standard): Up to 11"
Cylinder Length - (With Special Tooling): Up to 18"
Spindle Speed: 90–350 RPM
Spindle Motor: 3 HP
Stroker Motor: 1 HP
Stroke Speed: 40–80 SPM
Stroke Length: 0–9"
Carriage Travel (X-Axis): 35"
Maximum Workpiece Weight: 1,496 lbs., including fixture
Maximum Workpiece Size: 46" L × 22" W × 26.5" H
Honing Oil Reservoir: 55 Gallons
Coolant flow: 10 GPM @ 25 PSI
Machine Dimensions: 89.5" L × 72.5" W × 86.5" H
Machine Weight: Approx. 1,900 lbs.
Shipping weight: Approx. 2,500 lbs.
Electrical: 230V / 60 Hz / 3-Phase (SV-15CD)
Equipped With

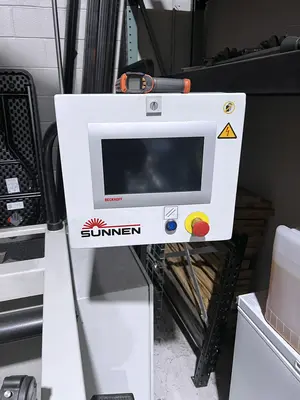

9" Touchscreen Control Panel
Sunnen CK6200 CK Clamp Kit
Sunnen DHT70 DH Diamond Hone Body & Driveshaft
(2) DH2S1GMH75 DH Diamond Stone Sets — 2.750"–3.060" bore range
DH1B1534 DH Abrasive Brush Set
180 SiC — 2.750"–3.060" bore range
(2) DH2S2GMH75 DH Diamond Stone Sets — 3.060"–3.370" bore range
DH1B2534 DH Abrasive Brush Set
180 SiC — 3.060"–3.370" bore range
(2) DH2W3GMH75 DH Diamond Stone Sets — 3.370"–3.680" bore range
DH1B3534 DH Abrasive Brush Set
180 SiC — 3.370"–3.680" bore range
Sunnen CF1126 Setting Fixture
