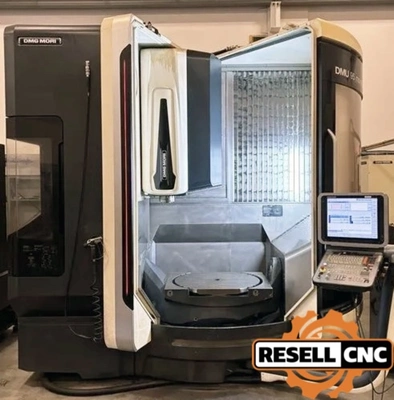

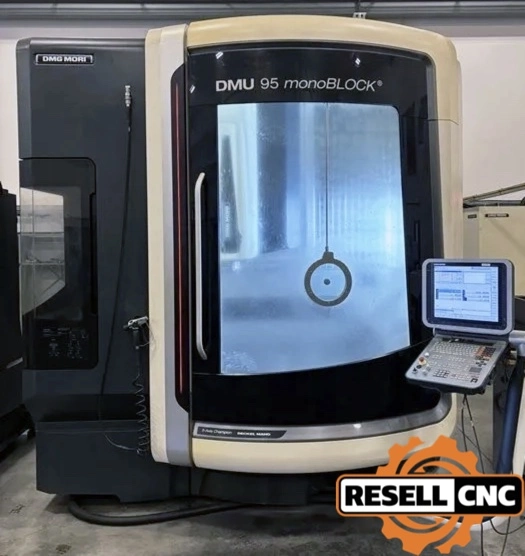

USED 2018 DMG Mori DMU 95 monoBLOCK

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: CELOS App-Based Interface, 3D quickSET Kinematic Compensation Kit, MPC Machine Protection Control, Electronic Handwheel, 4-Colour Signal Lamp, Operation Mode 4 Process Monitoring
Additional Machine Specs: 3D quickSET Tool Kit for Kinematic Compensation

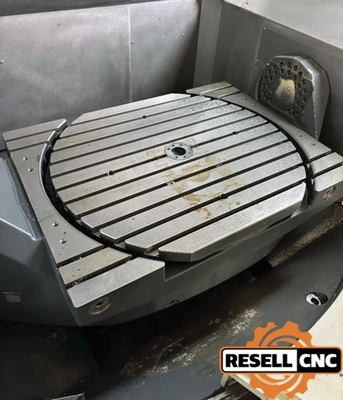

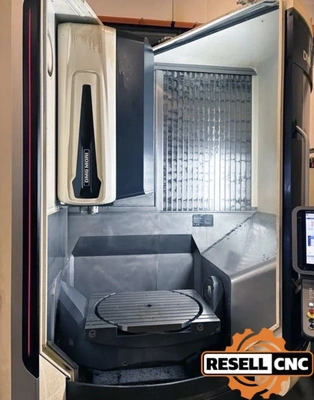

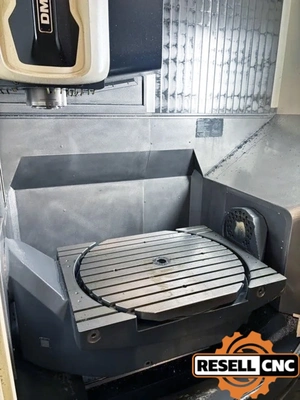

NC Swivel Rotary Table with Direct Drive C-Axis

A-Axis Swivel Range: +120° / -120° @ 15 RPM

C-Axis Rotation: 360° Endless @ 80 RPM

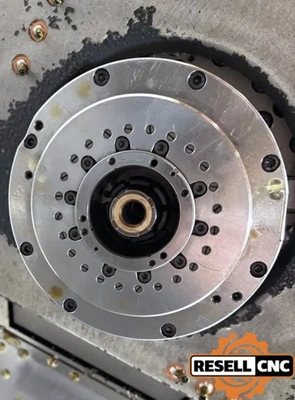

Table Diameter: 33.5" / Load Capacity: 2,205 lbs

MPC Machine Protection Control

Air Blast Through Spindle Centre via M-Function

Scraper Type Chip Conveyor with Interval Control

Coolant Capacity: 132 Gallons

Electronic Handwheel

Rotating Clear-View Window in Cabin Door

Spray Pistol and Chip Flushing in Cabin Door

4-Colour Signal Lamp

Operation Mode 4 Process Monitoring for Manual Intervention

Rapid Traverse 1,575 IPM (all axes)

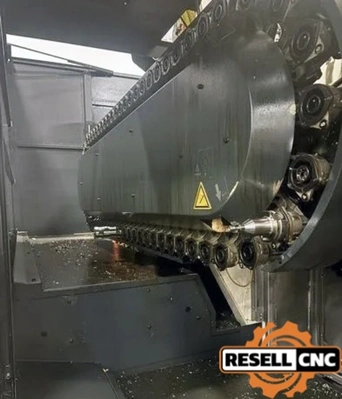

Double Gripper Chain Magazine Tool Change System

B Axis: false
C Axis: false

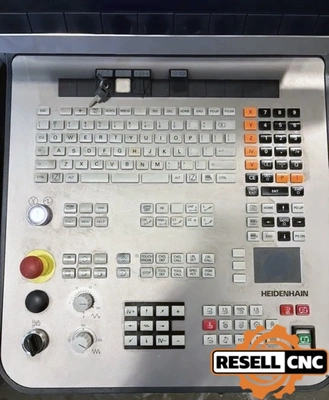

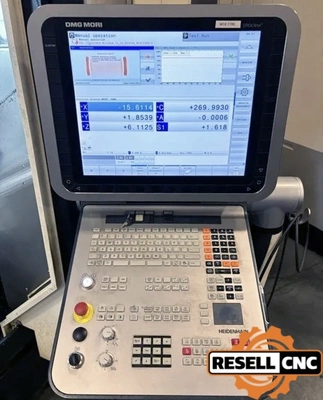

Control Make Model: Heidenhain CNC Control
Coolant Type S: Flood Coolant, High Pressure Coolant
High Pressure Coolant Psi: 1000.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 2205.0
Max Workpiece Weight: 2205.0
Probe Make Model: Renishaw OMP 60 Infrared Measuring Probe
Programmable Tailstock: false
Rapid Traverse: 1575
Rotary Make Model: Full 5th Axis (Continuous)

NC Swivel Rotary Table with Direct Drive C-Axis

A-Axis Swivel: +120° / -120° @ 15 RPM

C-Axis: 360° Endless @ 80 RPM

Table Diameter: 33.5"

Load Capacity: 2,205 lbs

Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 46.9

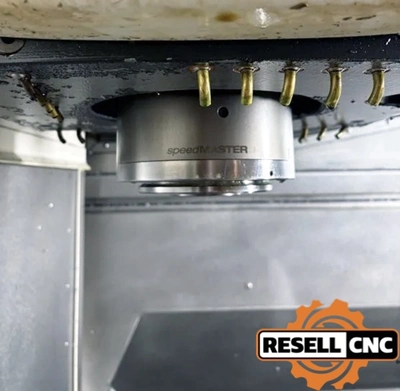

Spindle Speed: 20000.0
Spindle Taper Type: HSK63
Sub Spindle: false
Table Pallet Indexing: Other
Tailstock: false
Tool Changer Type: Chain
Tool Magazine Capacity: 60.0
Twin Turret: false
Vertical Table Pallet Size: 59.1" x 31.5
X Travel: 37.4
Y Axis: false
Y Travel: 33.5
Z Travel: 25.6
