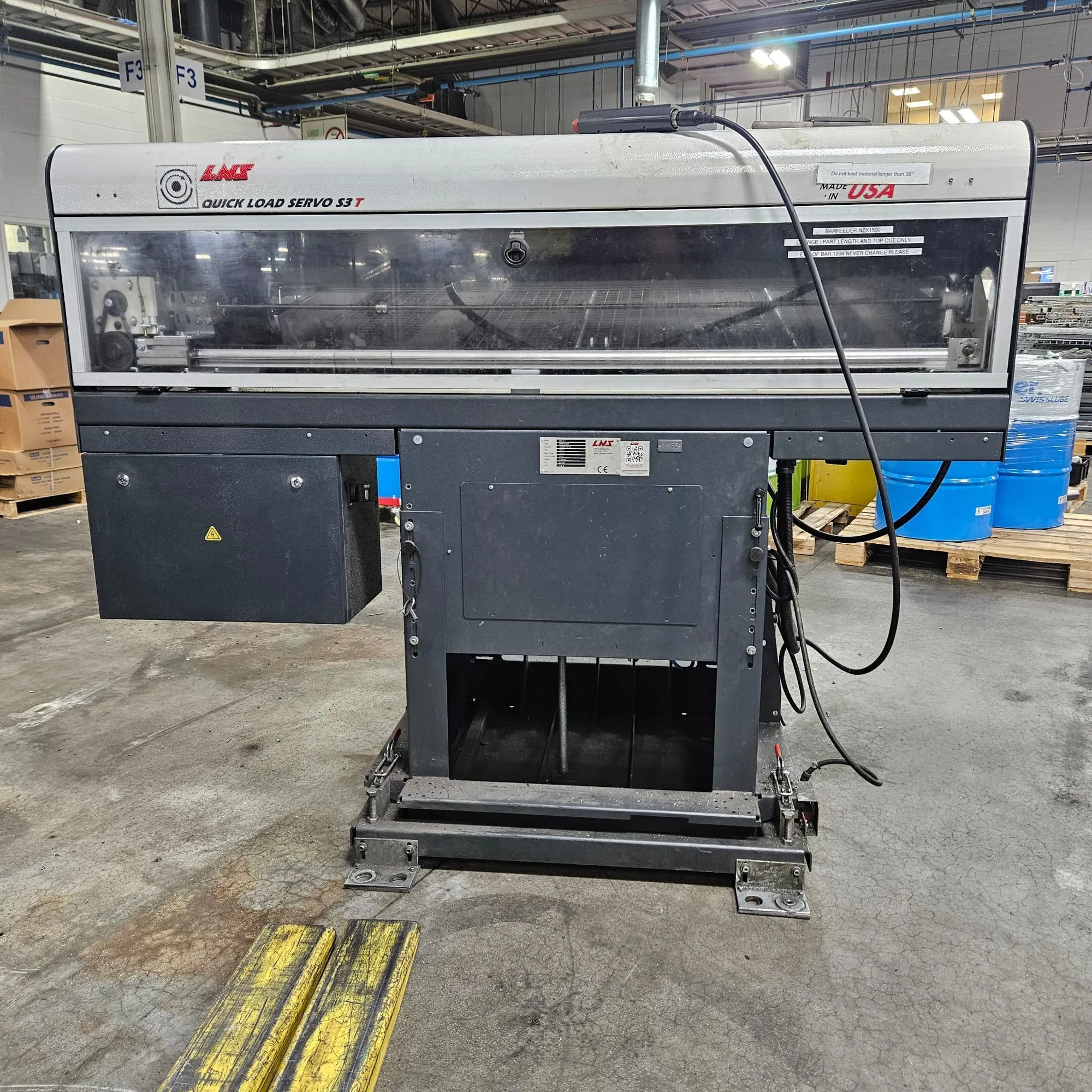

USED 2018 LNS QUICK LOAD S3T

LNS QLS3T Quick Load Servo S3T Bar Feed (2018)

Technical Specifications
Bar Diameter Capacity: 1/4" to 4-3/4" (6 mm to 120 mm)
Bar Length Capacity: 5" to 63" (130 mm to 1,600 mm)—not to exceed the overall spindle length
Maximum Bar Weight: 147.6 lbs (67 kg) standard; upgradable to 176 lbs with optional adapters.
Magazine Tray Depth/Capacity: 39.4" (1,000 mm) wide
Maximum Feed Rate: > 330 ft/min (> 100 m/min)
Push Force / Torque: Up to 123 ft-lbs (167 Nm)
X/Z-Axis Retraction Travel: 23.6" (600 mm) for easy access to the lathe spindle
Operating Cycles & Setup Speeds
Bar Reload Time: 8 to 12 seconds
Shaft Loading Cycle (One Shot): 4 to 7 seconds
Partial Changeover Time: ≤ 15 seconds (within the same pusher range)
Complete Changeover Time: ≤ 1 minute (including pusher changes)
