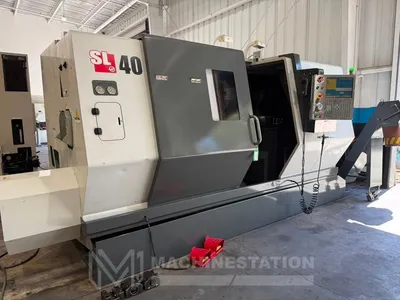

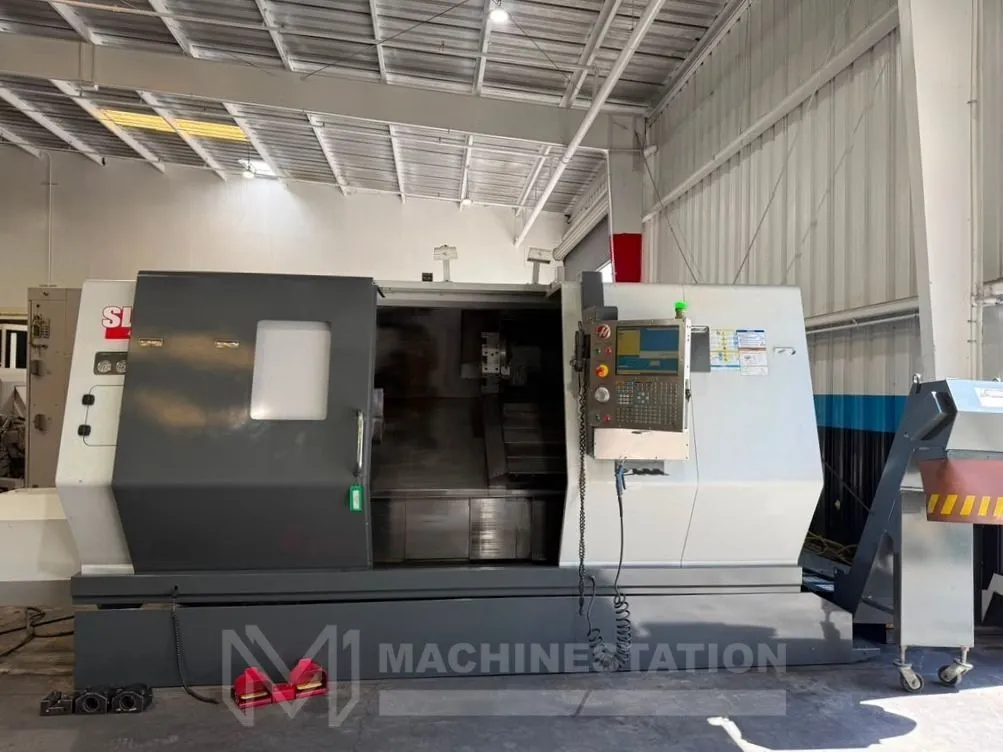

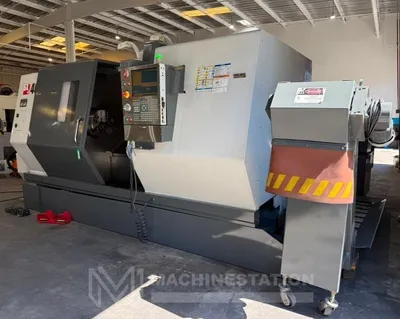

USED 2011 HAAS SL-40

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

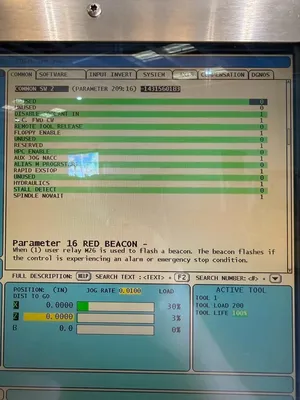

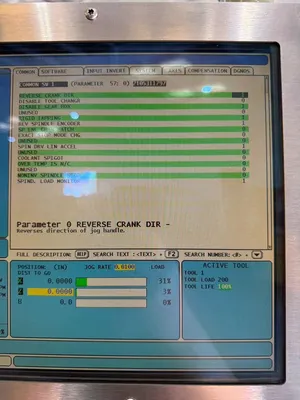

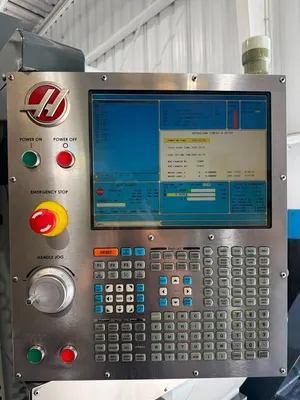

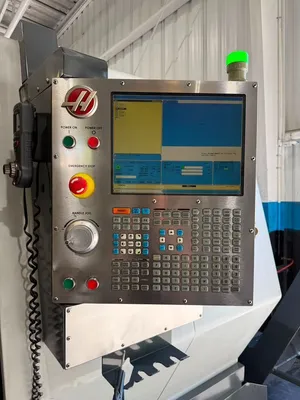

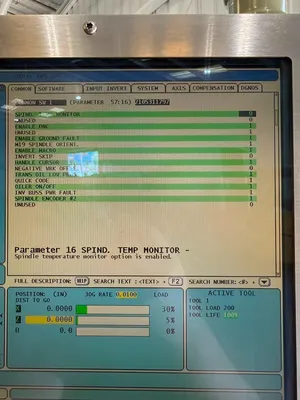

Haas CNC Control
Rigid Tapping
Macros
Quick Code
Enable DNC
Enable Floppy

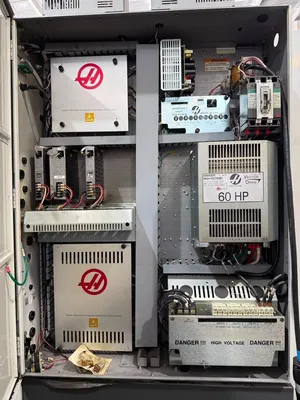

60 HP Vector Drive
Coolant Tank

Capacity:
Max Turning Diameter : 25.5 inch
Max Swing Over Bed : 40.0 inch
Max Turning Length: 44.0 inch
Max Bar Capacity : 4.0 inch

Travels:
X Axis Travel : 17.0 inch
Z1 Axis Travel : 44.0 inch

Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM

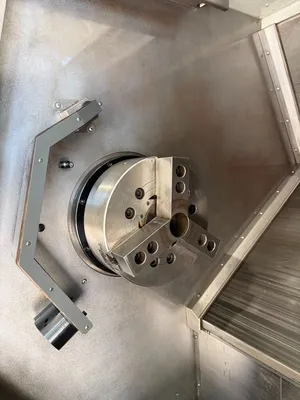

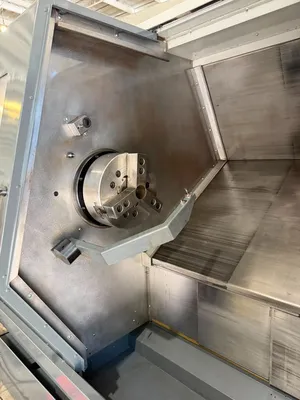

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62 inch

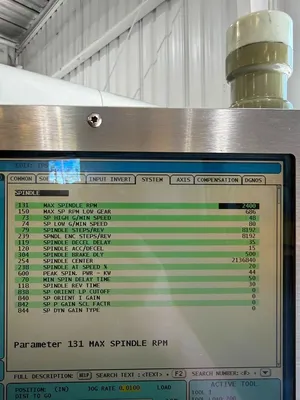

Spindle Speed: 2400 RPM
Spindle Power: 60 HP

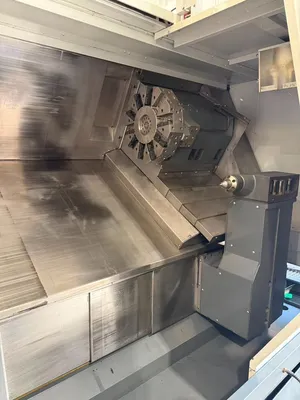

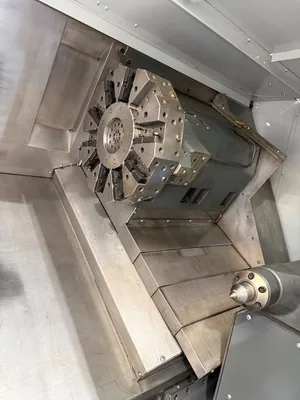

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second

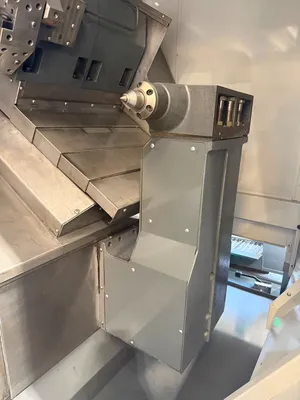

Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5

General:

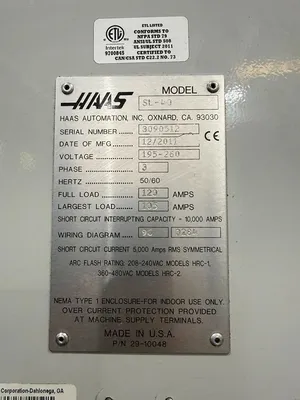

Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 190 inch x 103 inch x 90 inch High
Machine Weight: 25,000 lbs Approx.
