USED 2016 EATON Switchgear Assembly
Overview

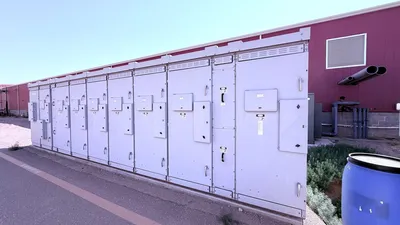

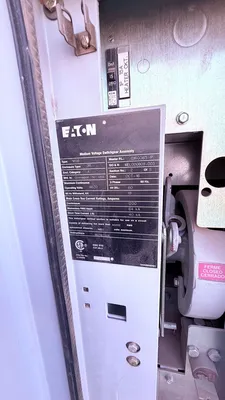

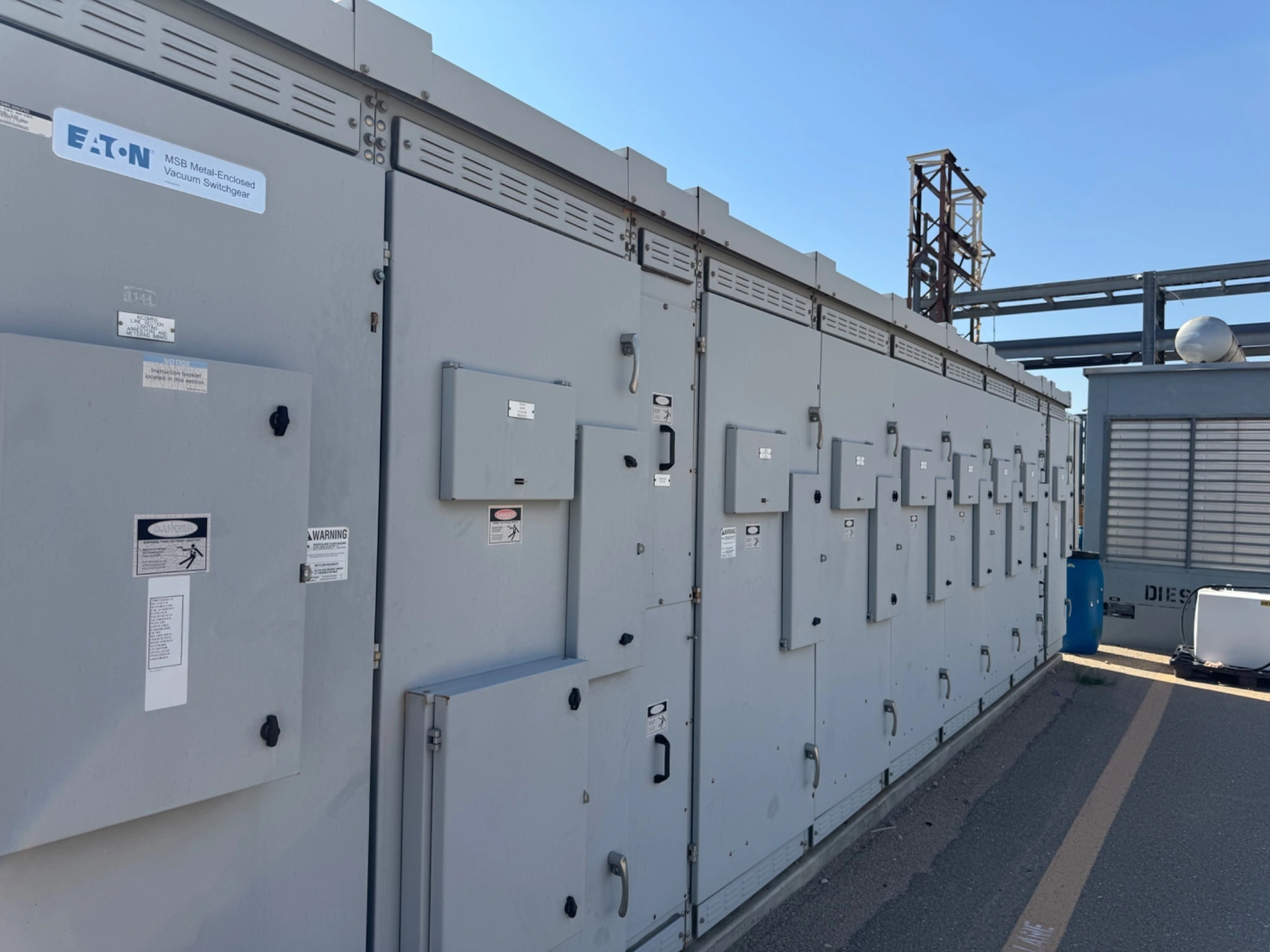

Eaton Medium Voltage Switchgear Assembly, Enclosure 3R, Maximum Operating Voltage 4620 Volts, 3 Phase , 60 Hz, Continuous Amps 1200 , Bil 60 KV, 40 KA, Total Section 11, Built 2016, Made In USA
Section -1

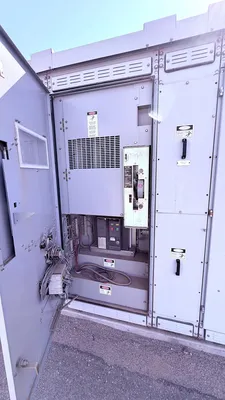

Incoming Power From Gas Turbine with Eaton IQ Analyzer
Section-2
Gas Turbine Generator Protection Section

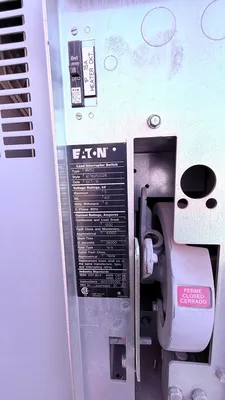

Eaton Load Interrupter Switch, Type MVS2, Style Id78050g28, 5kv, 60 KV Bil, 1200 Amps, 61 KA

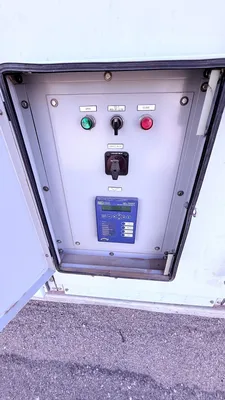

Eaton 1200 Amps, Type 50VCP-TR 40 Fixed Vacuum Circuit Breaker, Style 67A3092G64-4044601000C00101000, 4.76 KV, 120 Vac Close , Capacitor Trip SEL-700GT Intertie Protection Relay
Section-3
Transition
Section-4 To Section 9 Transformer Feeders
Six (6) Fused Load Interrupter Switch 600 Amps, Type MVS2, Style 1D78050G26, 5 KV, 60 KV Bil, 61 Ka, 3 Current Limiting Fuses Eaton Type 5CLE-450E, 450 Amps 63 Ka, 5.5 KV
Section-10
Transition
Section-11 Transformer Feeder
Fused Load Interrupter Switch 600 Amps, Type MVS2, Style 1D78050G26, 5 KV, 60 KV Bil, 61 Ka, 3 Current Limiting Fuses Eaton Type 5CLE-450E, 450 Amps 63 Ka, 5.5 KV
