Used

USED JOHN DEERE 9520R

Nebraska, United States
Asking Price
USD $425,000.00
1 available
340Listings|1Follower
Overview
4WD and Track Tractors

Looking for a John Deere 9520R for sale? This high-horsepower articulated 4WD tractor is engineered for large-scale farming operations, delivering exceptional power, traction, and efficiency in demanding field conditions. As part of John Deere’s R Series, the 9520R is designed for maximum productivity in tillage, planting, and heavy-duty fieldwork.
The John Deere 9520R features a powerful turbocharged diesel engine, advanced hydraulic system, and articulated steering for improved maneuverability with large implements. Built for long hours in the field, it offers a spacious, comfortable cab with modern controls and precision agriculture capabilities.
Whether you're pulling large tillage equipment or managing high-acre operations, the John Deere 9520R articulated tractor provides the performance, reliability, and technology needed to get the job done efficiently.
This 2021 John Deere 9520R is a high-horsepower articulated 4WD tractor built for large-scale farming and demanding field applications. With only 340 verified hours, this machine presents an exceptional opportunity to acquire a late-model, fully equipped tractor without new-equipment pricing.
Powered by a John Deere PowerTech PSS 13.5L diesel engine rated at 520 HP, it delivers strong, reliable performance for heavy tillage, planting, and pulling operations. The E18 powershift transmission provides smooth shifting and efficient power transfer, while the HydraCushion suspension system enhances ride quality and operator comfort in the field.

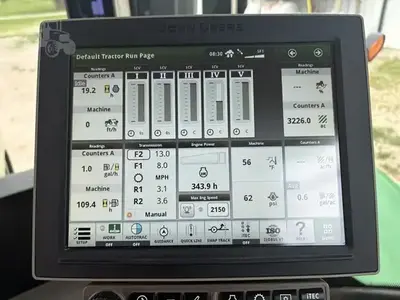

This unit is outfitted with a full precision ag package, including a 4600 CommandCenter display, StarFire 6000 receiver, and Auto Guidance capability, making it ready to integrate directly into modern farming operations.

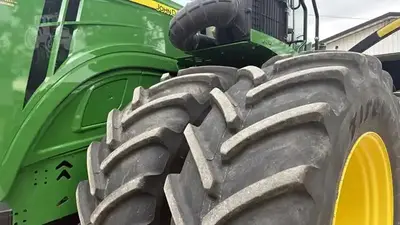

With duals front and rear, high-capacity hydraulics, and a premium cab package, this tractor is fully equipped, field-ready, and built to perform at a high level.

Specs

🔧 ENGINE
Engine: John Deere PowerTech PSS
Type: 6-cylinder turbo diesel
Displacement: 13.5L (824–826 cu in)
Rated Horsepower: 520 HP
Max Horsepower: ~570+ HP
PTO Power: ~335 HP
Rated RPM: 2100
🔧 TRANSMISSION & DRIVE
Drive: Articulated 4WD
Transmission: e18 PowerShift (18F / 6R)
Top Speed: ~25 mph
Differential Lock: Electro-hydraulic
🔧 HYDRAULICS
System Type: Closed-center (PFC)
Pump Flow:

Standard: ~58 GPM
Optional: ~110–115 GPM (dual pump)
Standard: ~58 GPM
Optional: ~110–115 GPM (dual pump)
System Pressure: ~2900 PSI
Rear SCVs: 4–8
🔧 PTO & HITCH
PTO: Optional
PTO Speed: 1000 RPM

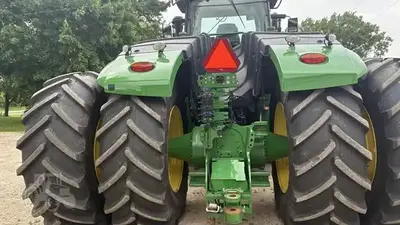

Hitch: Category IV / IVN
Rear Lift Capacity: ~15,000 – 20,000 lbs
Drawbar: Category 5
📏 DIMENSIONS & WEIGHT
Operating Weight: ~43,500 lbs
Wheelbase: ~154 inches
Length: ~24–25 ft
Height: ~12 ft
🔧 CAPACITIES
Fuel Capacity: ~400 gallons
DEF Capacity: ~20–22 gallons
Hydraulic System: ~55–60 gallons
