USED 2007 NISSEI FV660-310L

Tennessee, United States
859Listings|122Followers
Overview
Injection Molding Machines

720 Ton, 132 Oz. Nissei Hybrid Injection Molding Machine '07
Model: FV660-310L
Hours: 53,828

Specs
Year
2007
Tonnage
720
Shot Size
132
Platen Size
60.6" x 60.6"
Tie Bar Spacing
43.3" x 43.3"
Mold Height (Min)
17.7"
Mold Height (Max)
37.4"
Daylight
75.2"
Ejector Stroke
7.9"
Clamp Stroke
37.4"
Core Pull
Yes

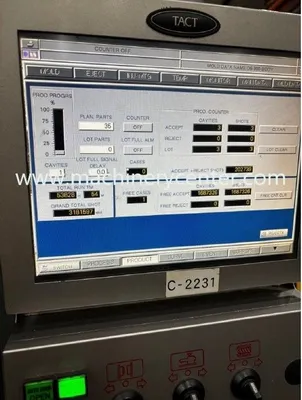

Control
TACT IV
Horz/Vert
Horz
Dimensions
Clamp: 18.3' x 7.5' x 8.0' /15' x 7.5' x 6.2' Inj. Unit:
Weight
Inj. Unit: 20,000 Lbs/ Clamp: 45,000 Lbs.
Equipped With

132 Oz. Injection Unit
Robot
Core Pull
Air Blow
Air Blast
