USED 2021 SNX NVISION G 2

Lot Closes:: 9/9/2026 9:00:00 AM PT

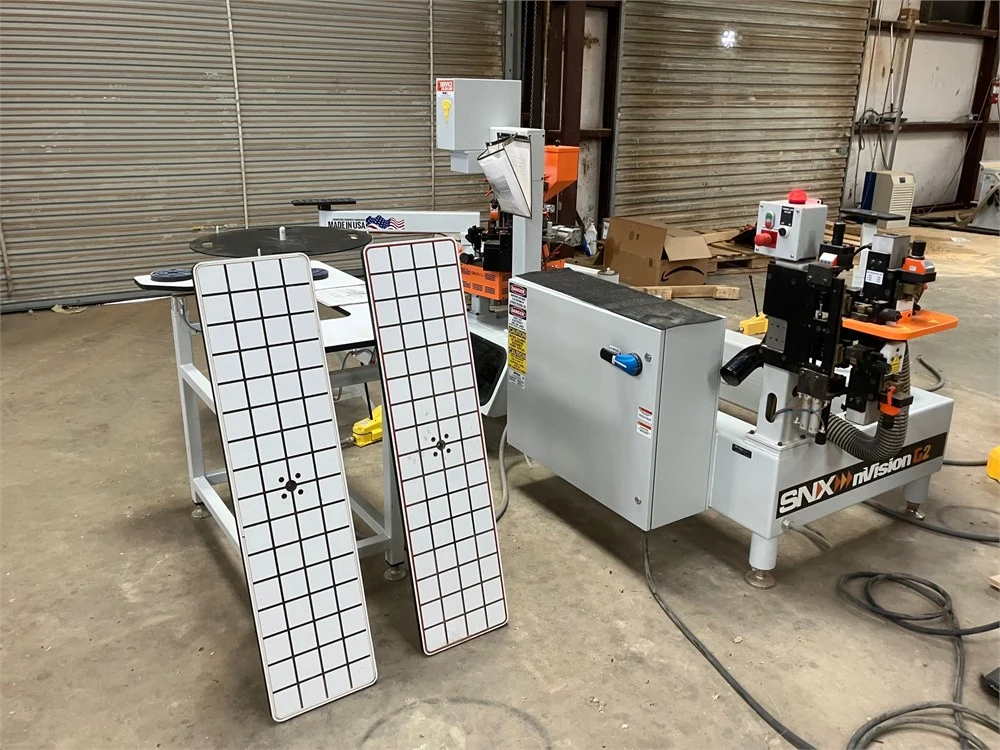

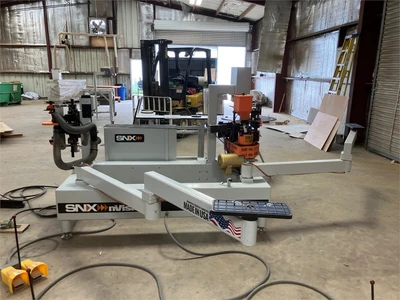

SNX "nVision G2" Contour Bander/Trimmer
Made in USA
See sales video of machine in operation for reference only, not all options necessarily apply
The SNX nVision G2 is the most advanced model in the range. Designed with a dual-arm, three-station configuration, it enables simultaneous banding and trimming, allowing for continuous operation with minimal downtime. This setup is perfect for shops processing large volumes of contoured panels, such as cabinet doors or furniture components.
Maximum panel size: 100" x 100" (larger based on geometry)
Minimum part size: 6" x 6' (smaller based on geometry)
Maximum panel weight: 230 Lbs.
Panel thickness: 10 – 60 mm (0.4" – 2.36")
Edgebanding thickness: 0.5 – 3 mm
Minimum Internal (inside) radius 80 mm (3.14"); minimum external (outside) radius 30 mm (1'18") based on 1 mm thick edge tape.

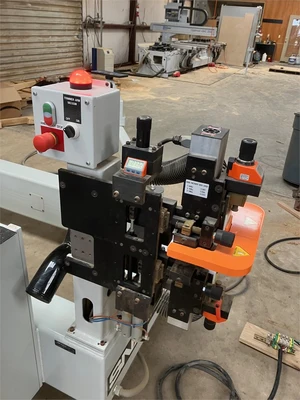

Edgebanding station
360° edgebanding to contoured (shaped) panels.
Edgebanding is applied automatically as part is advanced past the edgebanding workstations via turntable.
Glue pot with application roller
Articulating support arm
Triaxial laser alignment for precise tape placement
Automatic glue pot refill system
Aluminum infeed guides
Solid shoe holder
Adjustable pod height spindle
Digital readouts
Laser upgrade
Pneumatic enclosure
Trimming station
Articulating support arm
Top/bottom trimming motors
Vacuum support tables and pods
Edgebanding infeed table

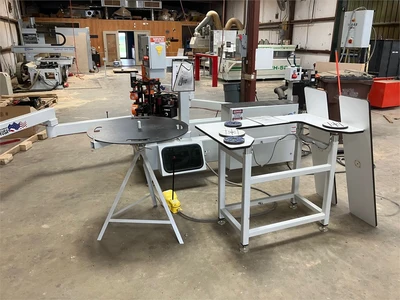

Transfer table for moving parts from edgebanding to trimming stations
Foot pedal control

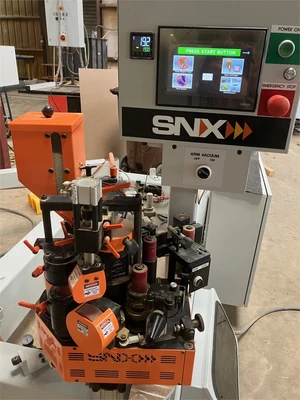

15” touchscreen monitor
