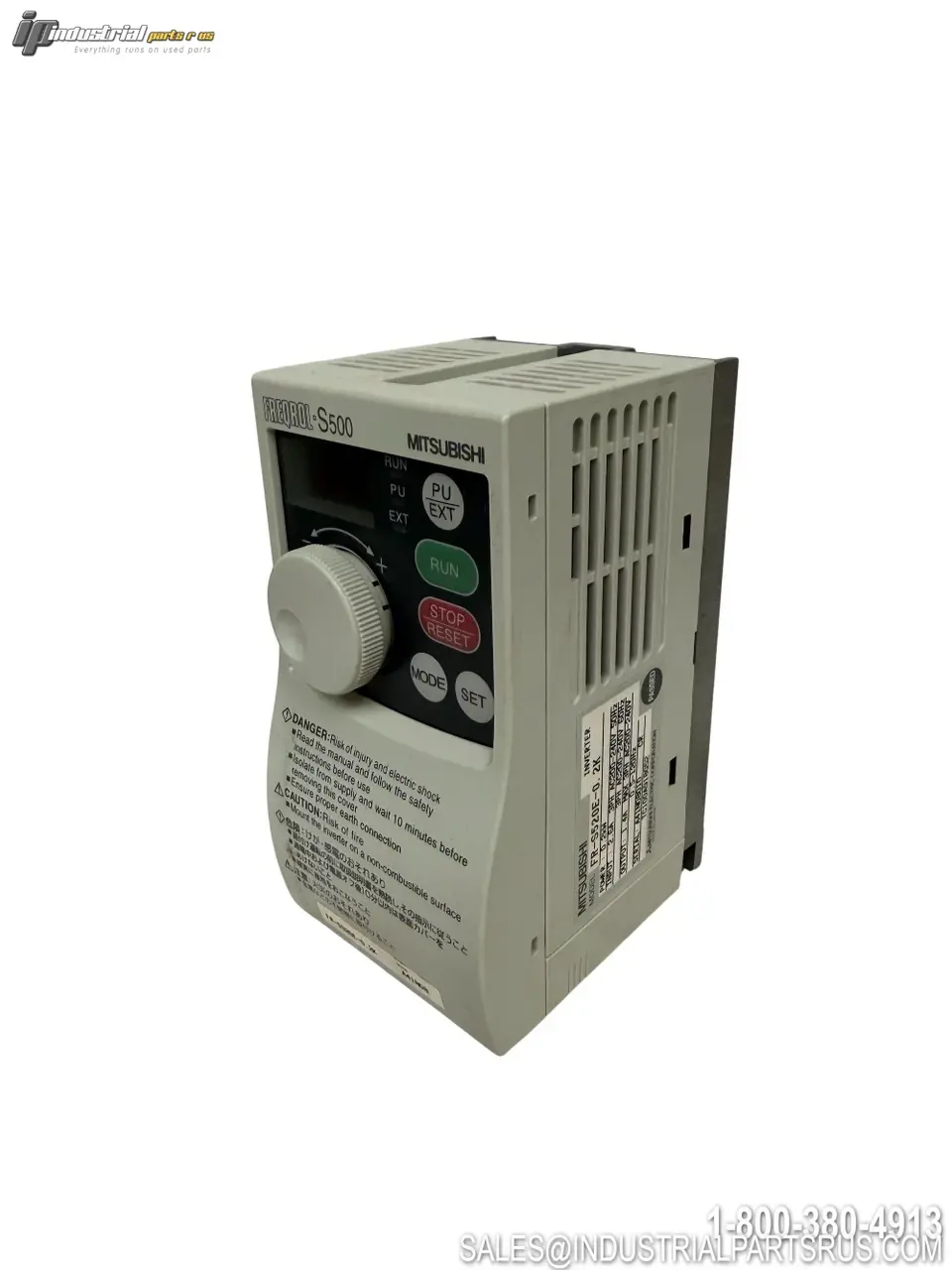

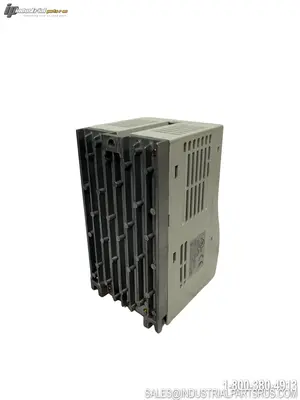

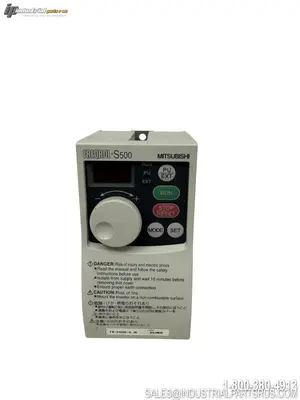

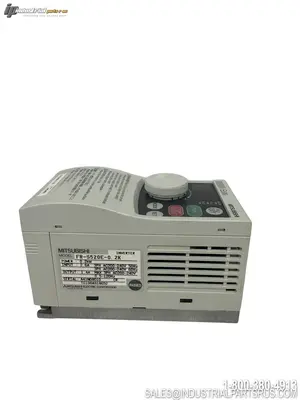

NEW MITSUBISHI FR-S520E-0.2K

The Mitsubishi FR-S520E-0.2K is a compact transistorized inverter (Variable Frequency Drive) from the FREQROL FR-S500E Series, designed for precise variable-speed control of three-phase AC induction motors in industrial applications. It accepts a 3-phase 200–230 VAC, 50/60 Hz input and delivers a fully variable 3-phase output from 0.5 to 120 Hz, making it well suited for conveyors, fans, pumps, and general-purpose machinery. The unit features solid-state electronic thermal overload relay protection and is housed in an IP20 rated enclosure for panel or cabinet mounting.
Specification
Value
Brand
Mitsubishi Electric (FREQROL)
Model / Part Number
FR-S520E-0.2K
Series
FR-S500E (S500E)
Product Type
Variable Frequency Drive (VFD) / Transistorized Inverter
Rated Power
0.2 kW (0.25 HP)
Input Voltage
200–230 VAC (3-Phase)
Input Frequency
50 / 60 Hz
Input Current
2.6 A
Input Phase
3-Phase
Output Voltage
200–230 VAC (3-Phase)
Output Frequency Range
0.5–120 Hz
Rated Output Current
1.4 A
Output Phase
3-Phase
Overload Current Rating
150% for 60s; 200% for 0.5s (inverse time characteristics)
Enclosure Rating
IP20
Torque Type
Constant Torque (CT)
Motor Overload Protection
Solid-state electronic thermal relay (Pr. 9)
Brake Resistor
Not applicable (no brake resistor at 0.2K size)
UL Listing
UL 508C / CSA C22.2 No.14 (for use in enclosure)
Mounting Type
Panel / Enclosure Mount
Origin
Made in Japan
Status
Obsolete / Discontinued
We warranty all items for 30 days from date of purchase.
