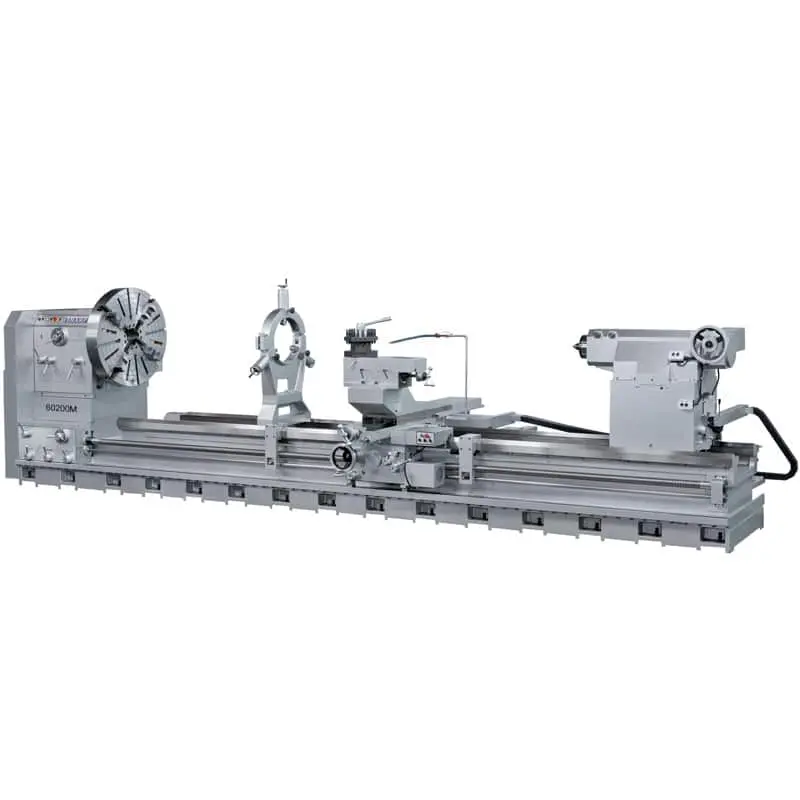

NEW SHARP M32-80 SERIES (80120M, 80160M, 80200M, 80240M, 80280M, 80315M)

Swing Over Bed: 80.31 in. / 2,039.8 mm
Swing Over Cross Slide: 64.17 in. / 1,629.9 mm
Swing Over Gap: 91.34 in. / 2,320.03 mm
Distance Between Centers: 120 – 315 in. / 3,048 – 8,001 mm
Spindle Speed: 4 – 420 rpm
No. of Spindle Speeds: 16 steps
Spindle Nose: A2-15
Spindle Bore: 6 in. standard, 9, 12, 15 in. optional / 152.4 mm standard, 228.6, 304.8, 381 mm optional
Inch Threads, Number: 0.25 – 30 tpi (70)
Metric Threads, Number: 1 – 120 mm (62)
Modular Threads, Number: 0.25 – 30 M.P. (53)
Diametral Pitch Threads, Number: 1 – 120 D.P. (70)
Longitudinal Feeds: 0.0024 – 0.28 in./rev / 0.060 – 7.11 mm/rev
Cross Feeds: 0.0012 – 0.14 in./rev / 0.0304 – 3.55 mm/rev
Leadscrew Pitch, Diameter: 2 tpi, 2.36 in.
Cross Slide Travel: 27.56 in. / 700.02 mm
Compound Travel: 15.75 in. / 400.05 mm
Compound Width: 34.65 in. / 880.11 mm
Bed Length: 212.2 – 409 in. / 5,389.8 – 10,388.6 mm
Bed Width: 32 in. / 812.8 mm
Quill Diameter: 7.88 in. / 200.15 mm
Quill Travel: 12 in. / 304.8 mm
Quill Center Taper: MT #6
Spindle Motor: 30 HP / 22.37 KW
Voltage: 220V/440V
Phase: 3 phase
