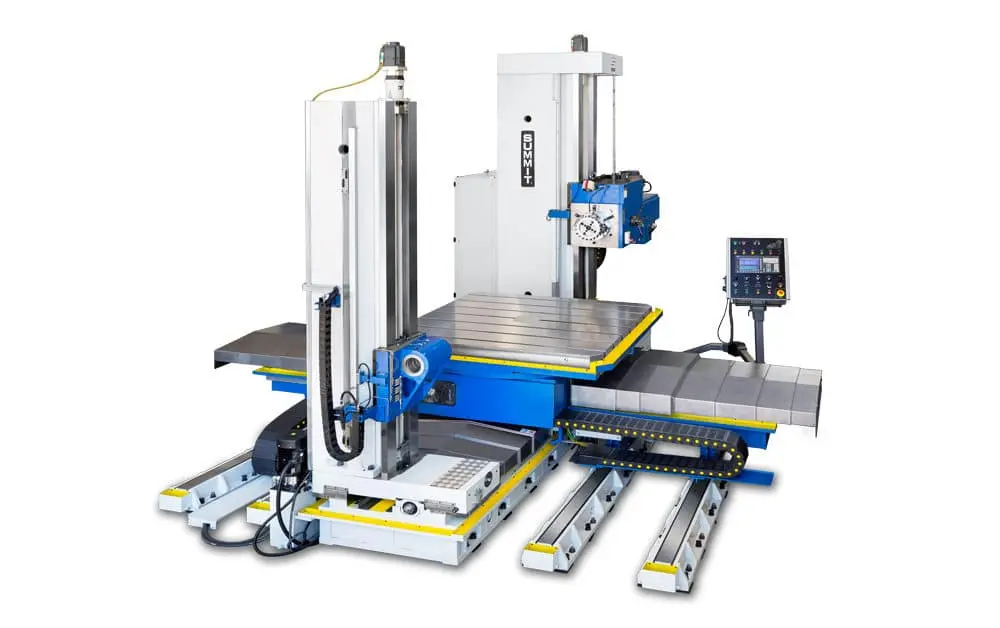

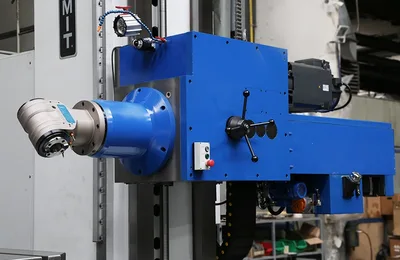

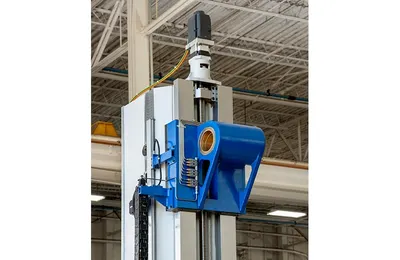

NEW SUMMIT HEAVY DUTY HTM SERIES
Specs
Models Available: HTM4H-XS, HTM4H-S, HTM4H, HTM5H
Spindle Diameter: 4.125 in. (HTM4H series) / 5 in. (HTM5H)
Spindle Taper: #50
Spindle Speeds: Infinitely variable, 10 – 1,800 RPM
Threads per inch / Metric threads: Programmable
Feed Range: Infinitely Variable
Rapid Traverse: 118 IPM
Electrics: 220/440/3/60
Spindle Travel (W-axis): 31.5 in.
Vertical Travel (Y-axis): 33.4 in. (HTM4H-XS) / 47 in. (HTM4H-S) / 61 in. or 78.8 in. (HTM4H) / 78 in. (HTM5H)
Cross Travel (X-axis): 47 in. (HTM4H-XS) / 70.8 in. (HTM4H-S) / 86 in. or 106 in. (HTM4H) / 100 in. or 122 in. or 143 in. (HTM5H)
Saddle Travel (Z-axis): 39.34 in. (HTM4H-XS) / 59 in. (HTM4H-S) / 65 in. or 84 in. or 104 in. (HTM4H and HTM5H)
Rotary Table Size: 55 in. x 55 in. (HTM4H-XS and HTM4H-S) / 55 in. x 63 in. (HTM4H) / 70 in. x 78 in. (HTM5H)
Max Workpiece Weight on Table: 13,200 lbs. (HTM4H series) / 26,500 lbs. (HTM5H)
Main Drive Motor: 20 HP (HTM4H-XS and HTM4H-S) / 22/30 HP (HTM4H) / 40/50 HP (HTM5H)
Equipped With

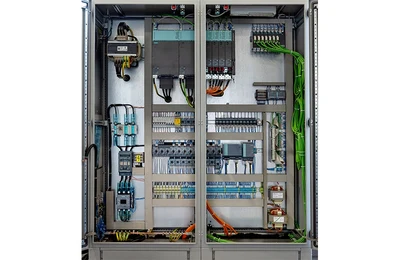

Standard Accessories: Heavily-ribbed closed grain cast iron construction (heat-treated & stress-relieved), angular contact bearing spindle cartridge headstock, limit switches on all axes, built-in rotary table (360° positioning), bellville washers tool clamping with hydraulic unclamping, precision hardened & ground gears, ZF box & belt transmission, central pendant control, multi-axis electronic DRO (inch/metric switchable), automatic timed lubrication system, inch/metric programmable threading, steel telescoping way covers, hydraulic axis clamping, rapid traverse, ballscrews on all linear axes, electronic handwheel, manual machine plus control, rotary digital readout, UL/CSA electrics

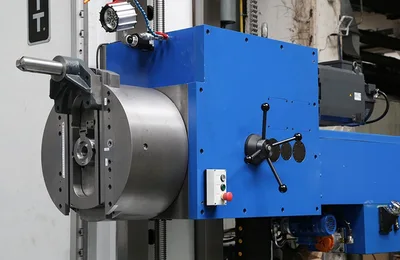

Optional Accessories: Hardened & precision ground steel ways, additional travels or configurations
