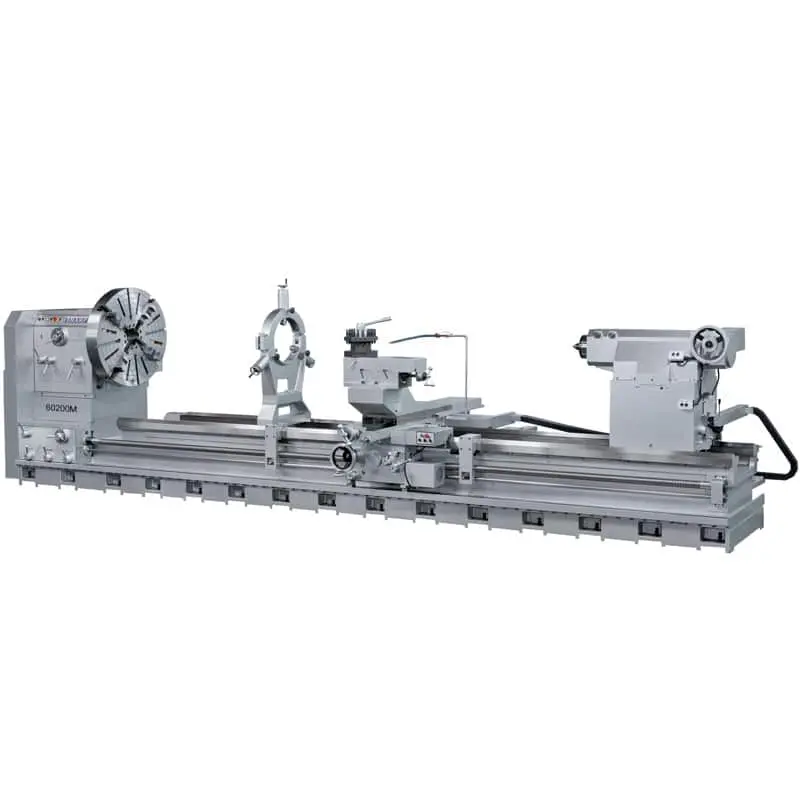

NEW SHARP M32-60 SERIES (60120M, 60200M, 60240M, 60280M, 60315M, 60600M)

Swing Over Bed: 59.8 – 63 in. / 1,518.9 – 1,600.2 mm
Swing Over Cross Slide: 43.7 – 47.63 in. / 1,109.98 – 1,209.8 mm
Swing Over Gap: 70.87 – 74.02 in. / 1,800.09 – 1,880.10 mm
Distance Between Centers: 118 – 590.6 in. / 2,997.2 – 15,001.24 mm
Spindle Speed: 4 – 420 rpm
No. of Spindle Speeds: 16 steps
Spindle Nose: A2-11
Spindle Bore: 6 in. standard, 9, 12, 15 in. optional / 152.4 mm standard, 228.6, 304.8, 381 mm optional
Inch Threads, Number: 0.25 – 30 tpi (70)
Metric Threads, Number: 1 – 120 mm (62)
Modular Threads, Number: 0.25 – 30 M.P. (53)
Diametral Pitch Threads, Number: 1 – 120 D.P. (70)
Longitudinal Feeds: 0.0028 – 0.34 in./rev / 0.0711 – 8.63 mm/rev
Cross Feeds: 0.0014 – 0.17 in./rev / 0.035 – 4.31 mm/rev
Leadscrew Pitch, Diameter: 2 tpi, 2.36 in.
Cross Slide Travel: 27.56 in. / 700.02 mm
Compound Travel: 15.75 in. / 400.05 mm
Compound Width: 34.65 in. / 880.11 mm
Bed Length: 214.9 – 681 in. / 5,458.46 – 17,297.4 mm
Bed Width: 32 in. / 812.8 mm
Quill Diameter: 7.88 in. / 200.15 mm
Quill Travel: 20.87 in. / 530.09 mm
Quill Center Taper: MT #6
Spindle Motor: 30 HP / 22.37 KW
Voltage: 220V/440V
Phase: 3 phase
