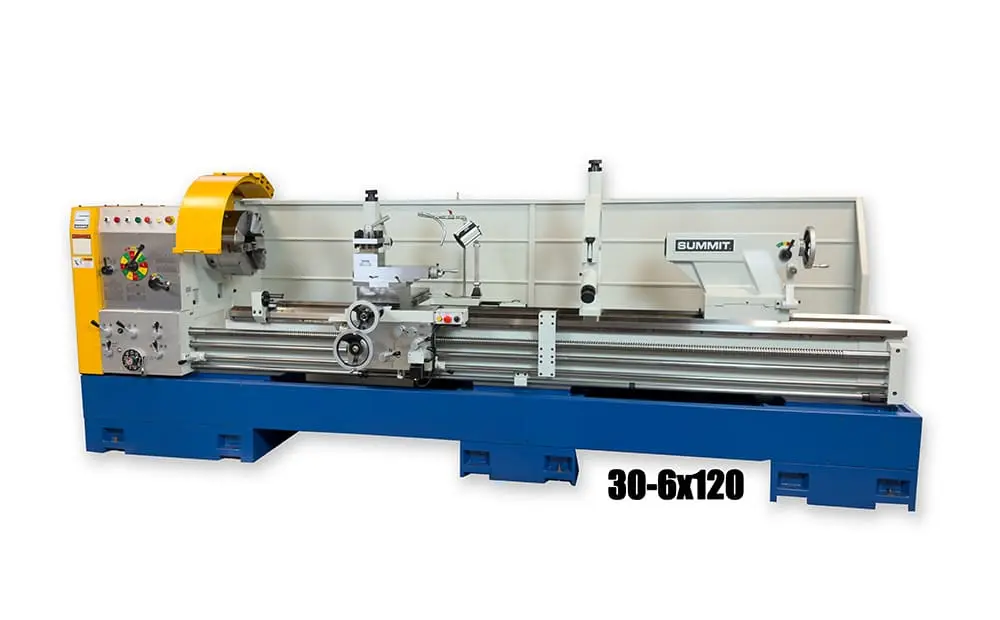

NEW SUMMIT 26″/30″/33″ BIG HOLE

Swing over bed (26″ model): 26 in.
Swing over bed (30″ model): 30 in.
Swing over bed (33″ model): 33 in.
Swing over cross slide (26″ model): 18 in.
Swing over cross slide (30″ model): 22 in.
Swing over cross slide (33″ model): 24.75 in.
Swing over gap (26″ model): 35 in.
Swing over gap (30″ model): 39 in.
Swing over gap (33″ model): 41.75 in.
Distance between centers: 80 in., 120 in., 160 in., 200 in.
Hole through spindle: 6.1 in. or 9.1 in.
Spindle speeds (26″ model): 12 speeds, 13-800 RPM
Spindle speeds (30″/33″ models): 12 speeds, 11-700 RPM
Spindle nose (26″ model): D1-11 Camlock
Spindle nose (30″/33″ models): A2-15
Tailstock spindle (quill) diameter: 3.75 in.
Tailstock spindle (quill) travel: 9 in.
Tailstock spindle taper: MT #5
Threads per inch: 2-28 TPI (36 ranges)
Metric threads: 0.8-14 mm (65 ranges)
Bed width: 18 in.
Main drive motor: 20 HP
