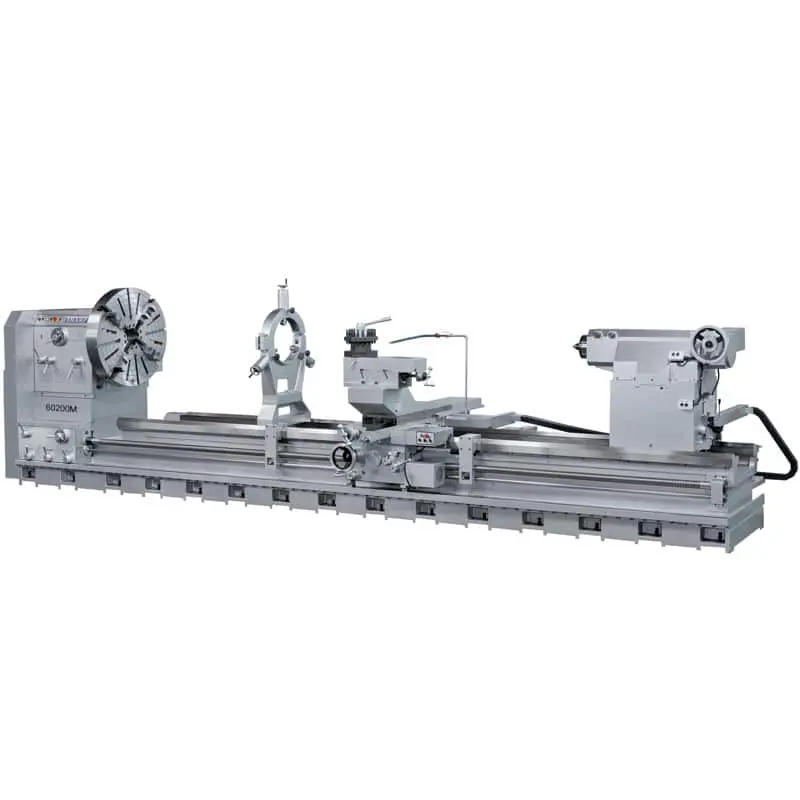

NEW SHARP M24-60 SERIES (60120M, 60200M, 60240M, 60280M)

Swing Over Bed: 59.8 in. / 1,518.9 mm
Swing Over Cross Slide: 47.63 in. / 1,209.8 mm
Swing Over Gap: 76.77 in. / 1,949.9 mm
Distance Between Centers: 118 – 280 in. / 2,997.2 – 7,112 mm
Spindle Speed: 4 – 420 rpm
No. of Spindle Speeds: 16 steps
Spindle Nose: A2-11
Spindle Bore: 6 in. standard, 9, 12, 15 in. optional / 152.4 mm standard, 228.6, 304.8, 381 mm optional
Inch Threads, Number: 0.25 – 30 tpi (70)
Metric Threads, Number: 1 – 120 mm (62)
Modular Threads, Number: 0.25 – 30 M.P. (53)
Diametral Pitch Threads, Number: 1 – 120 D.P. (70)
Longitudinal Feeds: 0.0028 – 0.34 in./rev / 0.0711 – 8.63 mm/rev
Cross Feeds: 0.0014 – 0.17 in./rev / 0.035 – 4.31 mm/rev
Leadscrew Pitch, Diameter: 2 tpi, 2.36 in.
Cross Slide Travel: 23.6 in. / 599.44 mm
Compound Travel: 14.57 in. / 370.07 mm
Compound Width: 31.5 in. / 800.1 mm
Bed Length: 195 – 352.4 in. / 4,953 – 8,950.96 mm
Bed Width: 24 in. / 609.6 mm
Quill Diameter: 4.92 in. / 124.96 mm
Quill Travel: 11.8 in. / 299.72 mm
Quill Center Taper: MT #6
Spindle Motor: 30 HP / 22.37 KW
Voltage: 220V/440V
Phase: 3 phase
