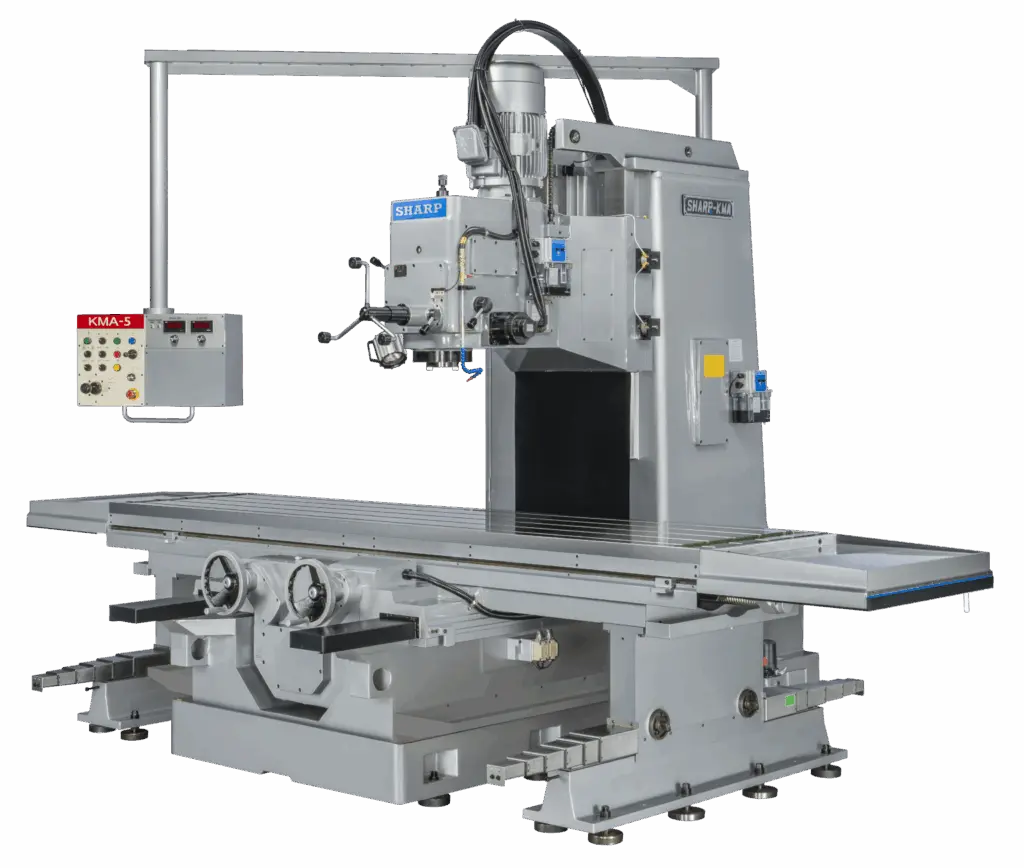

NEW SHARP KMA-5

Table Size: 106.3 x 29.5 in. / 2700.02 x 749.3 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 5.9 in. / 5 x 19.05 x 149.86 mm
Longitudinal Travel (X): 78.74 in. / 2,000 mm
Cross Travel (Y): 31.5 in. / 800.1 mm
Vertical Quill Travel (Z): 27.56 in. / 700.02 mm
Spindle Nose: NST #50
Spindle Speeds: 45 – 1,500 rpm
No. of Spindle Speeds: Variable
Spindle Center to Column: 31.5 in. / 800.1 mm
Spindle Nose to Table: 2.75 – 30.3 in. / 69.85 – 769.62 mm
Longitudinal Feeds: 1.1 – 39.5 ipm / 27.94 – 1,003.3 mm/min
Longitudinal Rapids: 122 ipm / 3,098.8 mm/min
Cross Feeds: 1.1 – 39.5 ipm / 27.94 – 1,003.3 mm/min
Cross Rapids: 122 ipm / 3,098.8 mm/min
Vertical Head Feeds: 11.81 in. / 299.72 mm
Spindle Motor: 17.5 HP / 11 KW
Voltage: 220V/440V
Phase: 3 phase
