USED 2014 Southwest Ind. TRL1440 ELX, HandWheels,5C Collet,3-Jaw,Steady,5HP

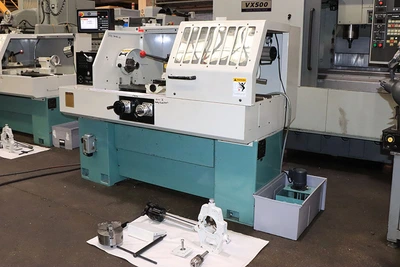

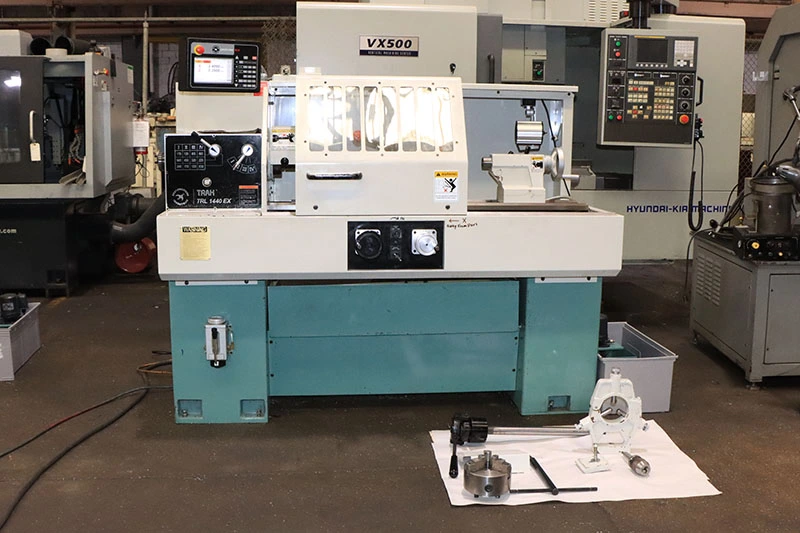

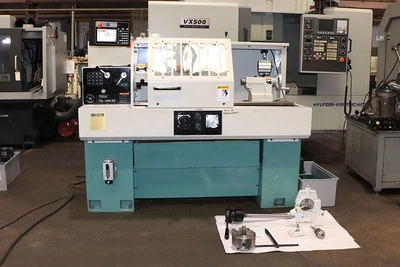

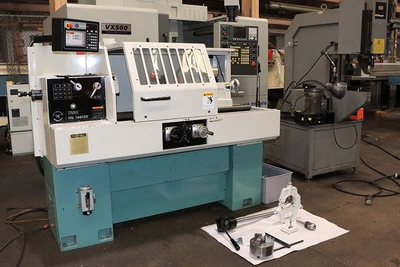

14" x 40" TRAK CNC TOOLROOM LATHE

 W/MANUAL HANDWHEELS

MODEL: TRL-1440ELX,  S/N: 143DH937,  YEAR: 2014

SPECIFICATIONS:

SWING OVER BED WAYS.................... 14"

SWING OVER SADDLE WINGS................ 14"

SWING OVER CROSS SLIDE................. 7.0"

DISTANCE BETWEEN CENTERS............... 40"

CROSS SLIDE TRAVEL..................... 8"

SPINDLE NOSE CAMLOCK................... D1-4"

SPINDLE THROUGH HOLE................... 1.56"

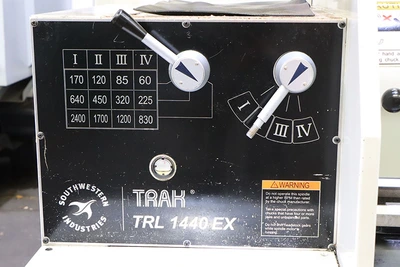

SPINDLE SPEED RANGE(12)................ 60 - 2400 RPM

BED WIDTH.............................. 8.1"

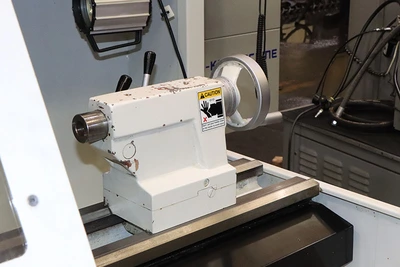

TAILSTOCK SPINDLE TRAVEL............... 5"

TAILSTOCK SPINDLE DIAMETER............. 1.575"

TAILSTOCK SPINDLE TAPER................ #3MT

APPROXIMATE DIMENSIONS................. 73"L x 44"W x 57"H

APPROXIMATE WEIGHT..................... 2,000 LBS.

EQUIPPED WITH:

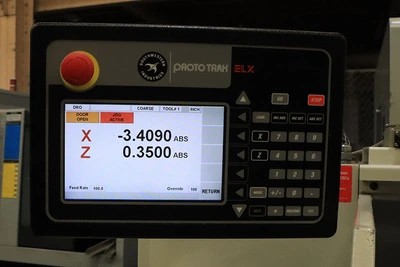

 - PROTO-TRAK  MODEL: ELX CONTROL

 - CONVERSATIONAL & GRAPHICS, CANNED CYCLES,

 - TURNS PARTS MANUALLY OR AUTOMATICALLY

 - THREADING

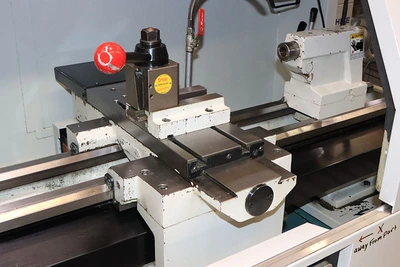

 - PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE

 - ELECTRONIC HANDWHEELS & JOYSTICK

 - HARDENED & GROUND BED

 - 3-JAW CHUCK

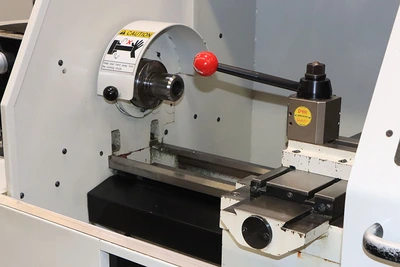

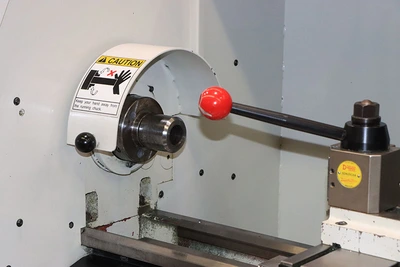

 - 5C LEVER TYPE COLLET CLOSER & NOSE PIECE

 - STEADY REST

 - 5 HORSE POWER SPINDLE DRIVE

 - COOLANT SYSTEM REMOVABLE CHIP PAN

 - SPLASH GUARD

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
