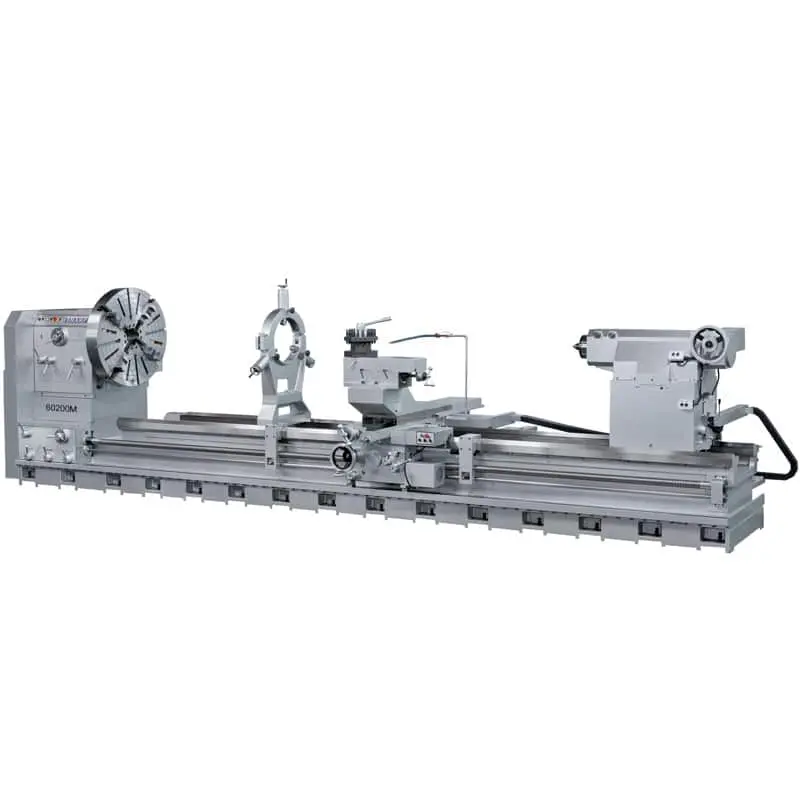

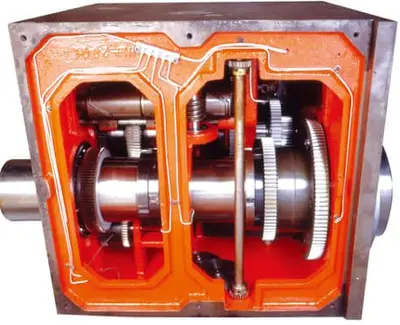

NEW SHARP M24-SERIES (4060M, 4080M, 40120M, 40160M, 40200M, 40240M)

Swing Over Bed: 40 in. / 1,016 mm
Swing Over Cross Slide: 27.95 – 29.14 in. / 709.93 – 740.15 mm
Swing Over Gap: 57.09 in. / 1,450.08 mm
Distance Between Centers: 60 – 240 in. / 1,524 – 6,096 mm
Spindle Speed: 4 – 420 rpm
No. of Spindle Speeds: 12 steps
Spindle Nose: A2-11
Spindle Bore: 6 in. standard, 9, 12, 15 in. optional / 152.4 mm standard, 228.6, 304.8, 381 mm optional
Inch Threads, Number: 0.25 – 30 tpi (70)
Metric Threads, Number: 1 – 120 mm (62)
Modular Threads, Number: 0.25 – 30 M.P. (53)
Diametral Pitch Threads, Number: 1 – 120 D.P. (70)
Longitudinal Feeds: 0.0024 – 0.28 in./rev / 0.0609 – 7.11 mm/rev
Cross Feeds: 0.0012 – 0.14 in./rev / 0.0304 – 3.55 mm/rev
Leadscrew Pitch, Diameter: 2 tpi, 2.36 in.
Cross Slide Travel: 23.6 in. / 599.4 mm
Compound Travel: 14.57 in. / 370.07 mm
Compound Width: 31.5 in. / 800.1 mm
Bed Length: 133.86 – 311 in. / 3,400.04 – 7,899.4 mm
Bed Width: 24 in. / 609.6 mm
Quill Diameter: 4.53 in. / 115.06 mm
Quill Travel: 12 in. / 304.8 mm
Quill Center Taper: MT #6
Spindle Motor: 30 HP / 22.37 KW
Voltage: 220V/440V
Phase: 3 phase
