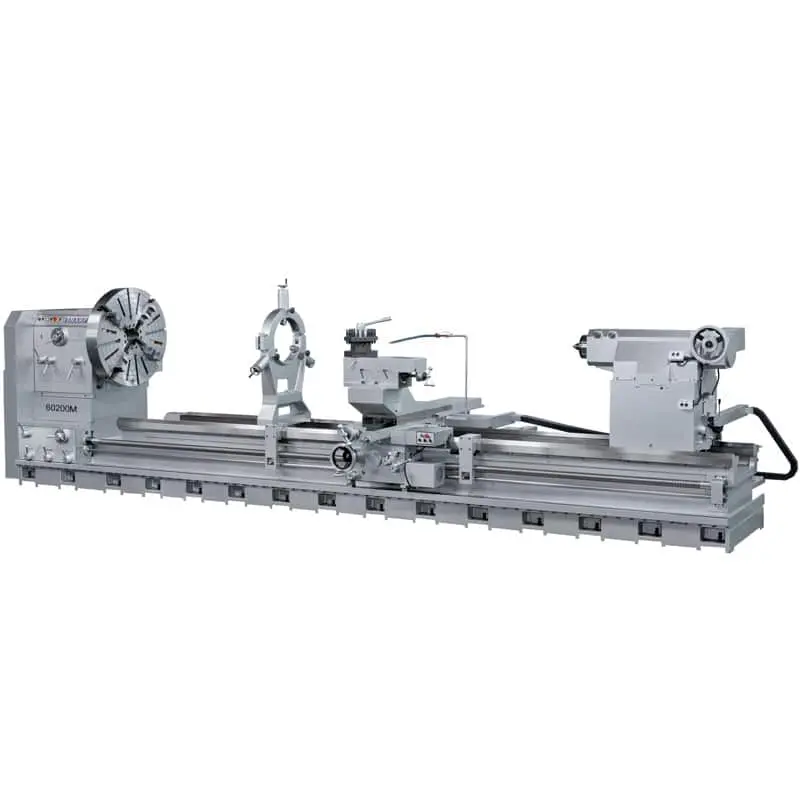

NEW SHARP M32-50 SERIES (5080M, 50120M, 50160M, 50200M, 50240M, 50315M)

Swing Over Bed: 50 in. / 1,270 mm
Swing Over Cross Slide: 34.25 in. / 869.95 mm
Swing Over Gap: 61.42 in. / 1,560.06 mm
Distance Between Centers: 80 – 315 in. / 2,032 – 8,001 mm
Spindle Speed: 4 – 420 rpm
No. of Spindle Speeds: 16 steps
Spindle Nose: A2-11
Spindle Bore: 6 in. standard, 9, 12, 15 in. optional / 152.4 mm standard, 228.6, 304.8, 381 mm optional
Inch Threads, Number: 0.25 – 30 tpi (70)
Metric Threads, Number: 1 – 120 mm (62)
Modular Threads, Number: 0.25 – 30 M.P. (53)
Diametral Pitch Threads, Number: 1 – 120 D.P. (70)
Longitudinal Feeds: 0.0024 – 0.28 in./rev / 0.0609 – 7.11 mm/rev
Cross Feeds: 0.0012 – 0.14 in./rev / 0.0304 – 3.55 mm/rev
Leadscrew Pitch, Diameter: 2 tpi, 2.36 in.
Cross Slide Travel: 27.56 in. / 700.02 mm
Compound Travel: 15.75 in. / 400.05 mm
Compound Width: 34.65 in. / 880.11 mm
Bed Length: 175.6 – 430.7 in. / 4,460.24 – 10,939.7 mm
Bed Width: 32 in. / 812.8 mm
Quill Diameter: 7.88 in. / 200.15 mm
Quill Travel: 20.87 in. / 530.09 mm
Quill Center Taper: MT #6
Spindle Motor: 30 HP / 22.37 KW
Voltage: 220V/440V
Phase: 3 phase
